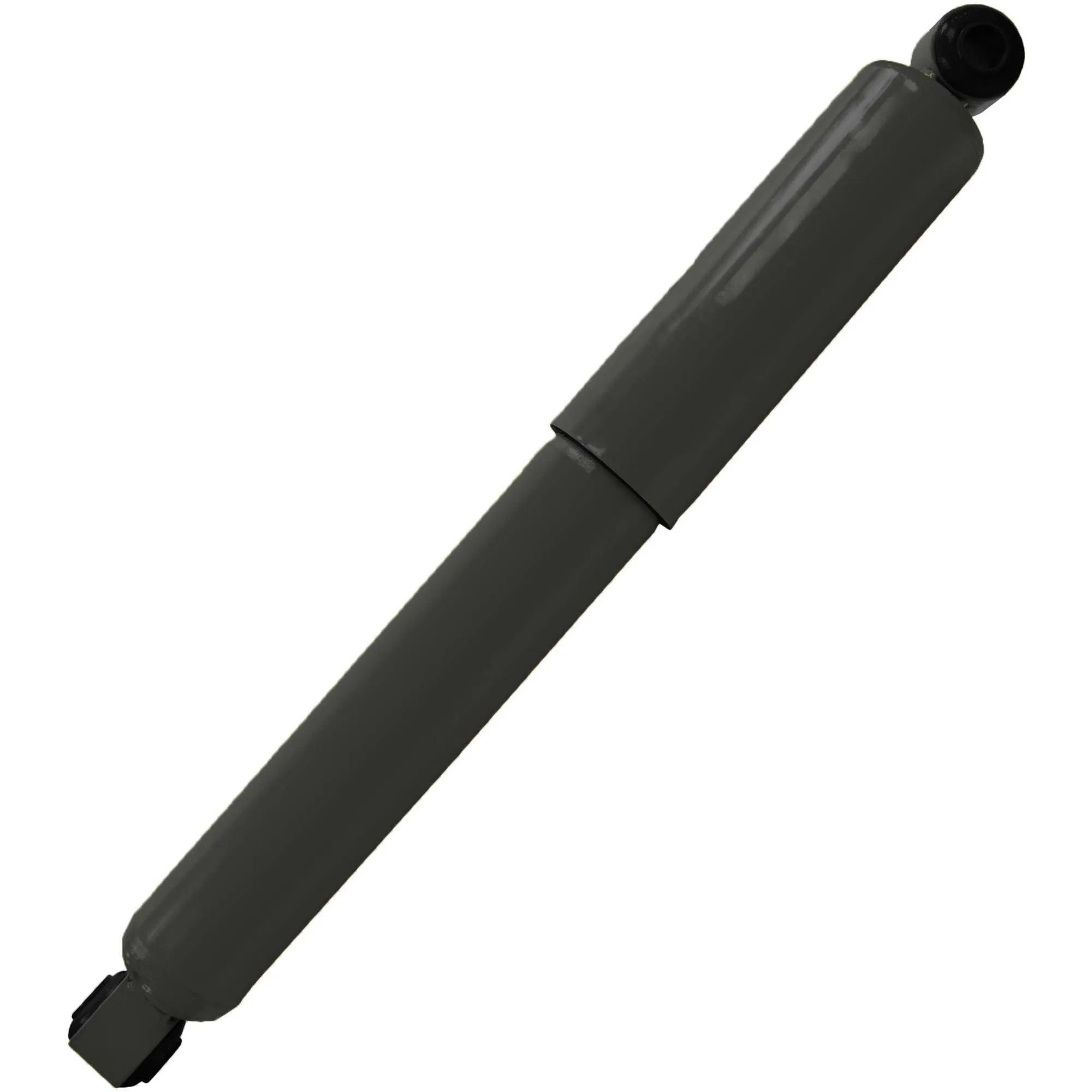

Monroe Shock Absorber, Nitrogen Gas Charged, 13-1/16 in Compressed, 20-29/64 in Extended, 7-25/64 in Stroke, LS54 Mount, Painted Metal
#MON65119
Product Overview
The Monroe® Magnum® shock absorber is designed for class 6-8 heavy-duty trucks and buses, featuring a nitrogen gas charge for fast response and improved ride quality. Its large bore and 2-3/8 in reserve tube provide consistent control and durability for demanding air spring and taper leaf suspensions, maintaining tire-to-road contact by reducing aeration and shock fade. Shock Absorber, Painted, Metal, 13.0625 in Compressed Length, 20.4531 in Extended Length, LS54 Lower Mount, 7.39 in Travel Length, LS54 Upper Mount
Features & Benefits
- Large 1-3/4 in (44.5 mm) Piston Bore.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- 2-3/8 in (60.3 mm) Reserve Tube.
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Patented Unique Hydraulic Rebound Lockout (When Required).
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- 10-Stage Full Displaced Valving (On Most Applications)
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
Specifications
| Compressed Length | 13-1/16 in |
| Dust Shield | Yes |
| Extended Length | 20-29/64 in |
| Lower Mount | LS54 |
| Stroke Inch | 7-25/64 in |
| Type | Shock Absorber |
| Upper Mount | LS54 |
| Finish | Painted |
| Material | Metal |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 7.39 in |
| Manufacturer Part Number | 65119 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65119 |
| M65119 |
| 3945465 |
| 65119-MS |
| 85029 |
| AMS650119 |
| AMS65119 |
| MAE 65119 |
| MON65119 |
| ZZSA65119 |
| 57365119 |
| SA65119 |
| 1317767 |
| 1667831 |
| 650119 |
| 650119MT |
