MSA, Spline: 1-1/4 in - 10, L: 4 1/2 in, 5 1/2 in
#BEN278295
Product Overview

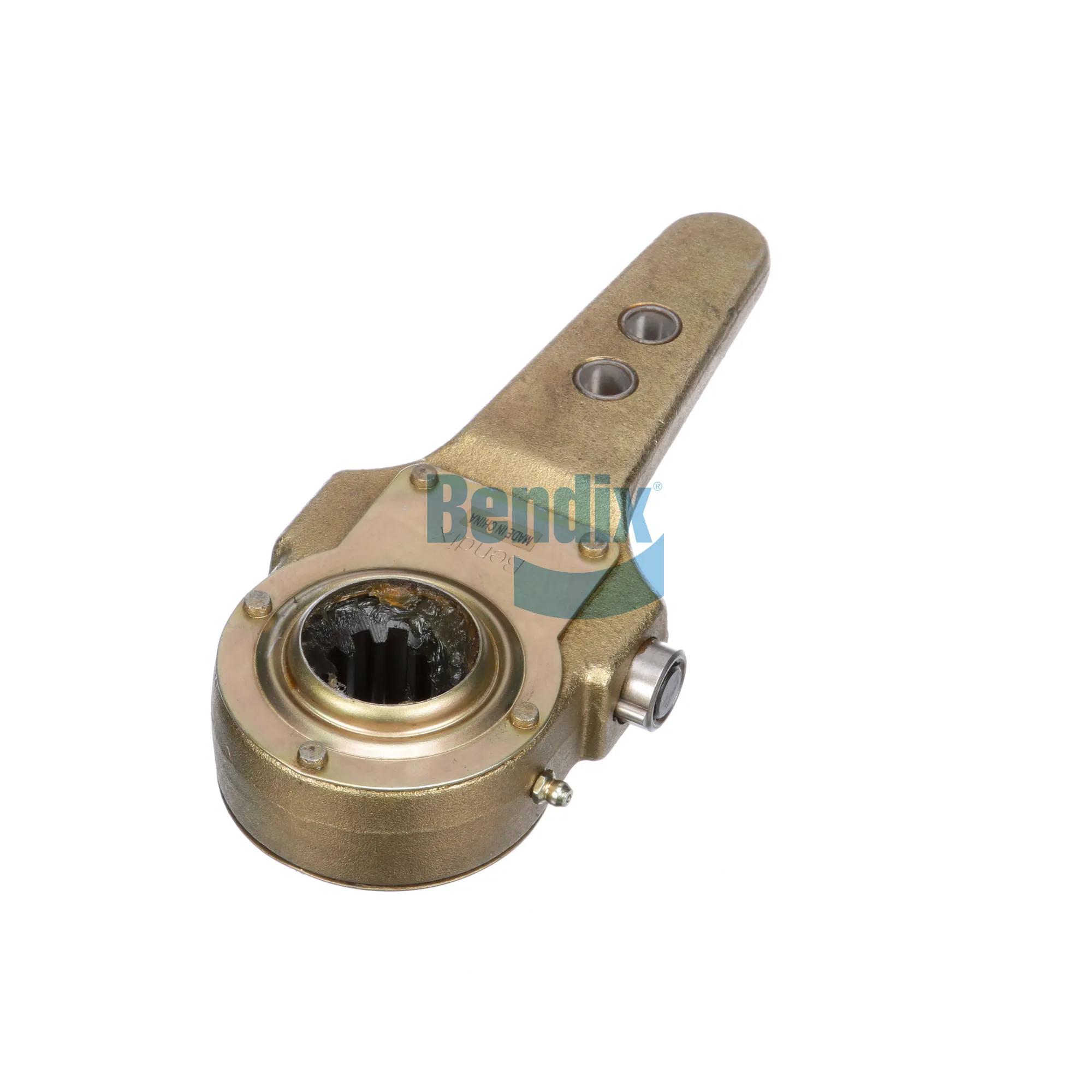

The Bendix PL-18 air brake manual slack adjuster acts as the final link between the foundation brake and the pneumatic system in an s-cam type foundation brake. This slack adjuster is made using high-quality materials to ensure it lasts longer and performs better than the competing unit.
Features & Benefits
- Arm is fastened to the push rod of the chamber with a yoke
- Designed with a slack adjuster spline that’s installed on the brake camshaft
- Consists of four basic components—the body, worm, gear, and adjusting screw
Specifications
| Arm Length # 1 | 4-1/2 in & 5-1/2 in |
| Automatic or Manual | Manual |
| Number of Splines | 10 |
| Spline Diameter | 1-1/4 in (3.18 cm) |
| Spline Diameter-Spline Count | 1-1/4 in - 10 |
Interchanges & Equivalent parts:
| 474358C1 |
| E-2762 |
| E2762 |
| EUCE-2762 |
| EUCE2762 |
| R822014 |
| 035132 |
| 035132VEL |
| 103219 |
| 222518 |
| 2457142 |
| 278295BXW |
| 278297 |
| 287837 |
| 460231A |
| 5-233 |
| 745-278295 |
| A13275H502 |
| A42-3275G501 |
| AC32381 |
| B983275G501 |
| BAN278295 |
| BEN278295 |
| BW 278295 |
| BW 278295 |
| BX278295 |
| C13275G501 |
| D6TZ2308A |
| E-2763 |
| E2763LH |
| L-1380 |
| M-2581 |
| M0103219 |
| MSA102R |
| R824014 |
| S-9999 |
| SAP49010L |
| TWDBEN278295 |
| WAKN49010 |
| ZAC278295 |
| E2763 |
| 278295 |
| 1341018 |
