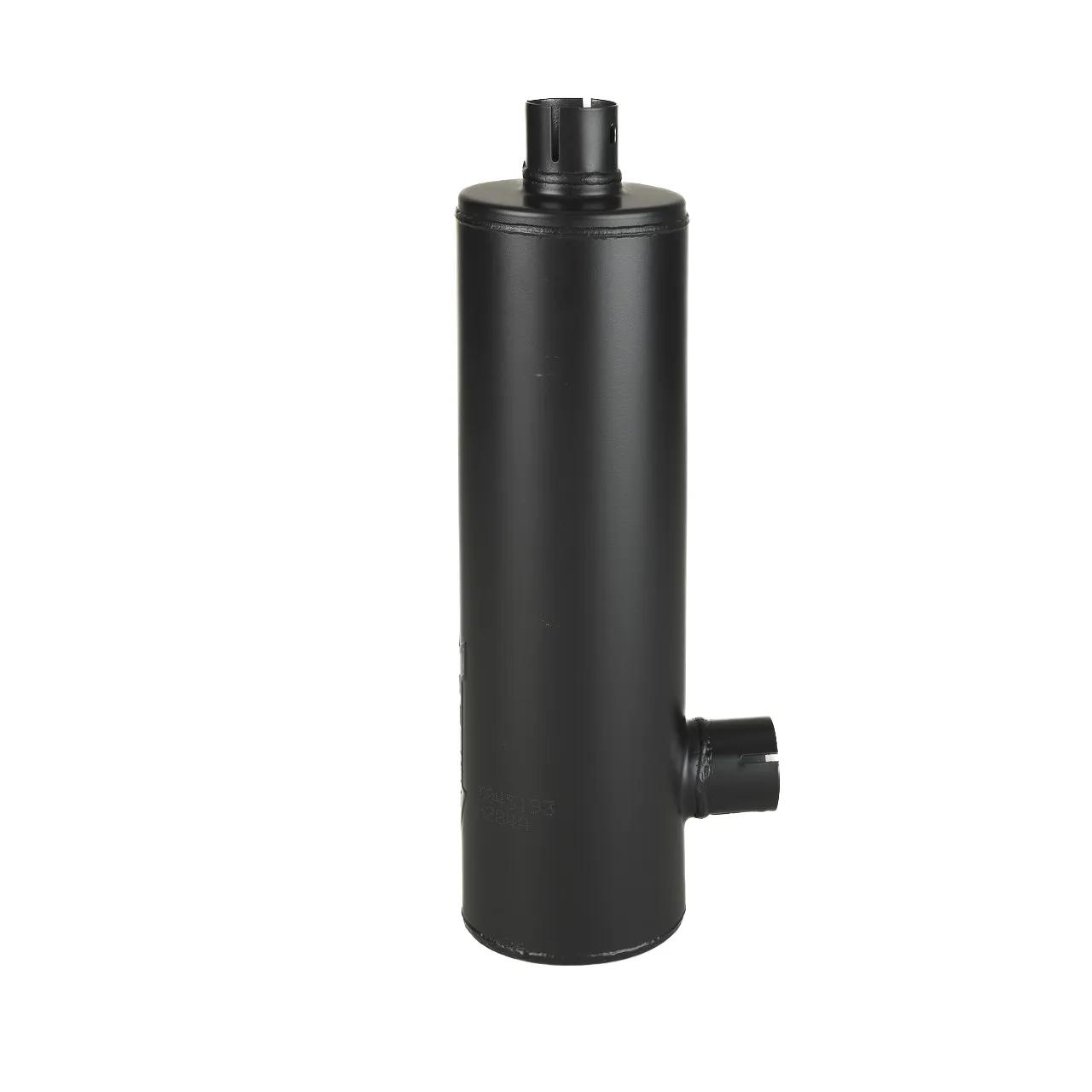

Muffler, Le: 13-25/32 in
#DONM045193
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 12 dBA |
| Attenuation High Range | 18 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 4-3/8 in (11.12 cm) |
| Body Length | 13-25/32 in (35.01 cm) |
| Inlet Clock Position | 12:00 |
| Inlet Diameter | 1-5/8 in (4.14 cm) |
| Length | 13-25/32 in (35 cm) |
| Outlet Diameter | 1-5/8 in (4.14 cm) |
| Overall Length | 15-51/64 in (40.13 cm) |
| Rated Flow High Range | 218.95 cfm (6.2 m³/min) |
| Rated Flow Low Range | 127.13 cfm (3.6 m³/min) |
| Rated Flow Mid Range | 218.95 cfm (6.2 m³/min)[delete] |
| Length Range | 13 to 14 in |
| Style | Style 3 |
Interchanges & Equivalent parts:
| 3617 |
| 476663 |
| 9103074 |
| 555M045193 |
| AU106006 |
| NESIL003 |
| 78626181 |
| 8626181 |
| 9575M045193 |
| SKS792071 |
| 11075 |
| 31075 |
| 36352672 |
| 59548594 |
| DCM045193 |
| 5910121 |
| 12047E49 |
| 21997 |
| 1547250 |
| 13000494 |
| 507122 |
| 507218 |
| 12549 |
| 264387001 |
| 810260 |
| 810262 |

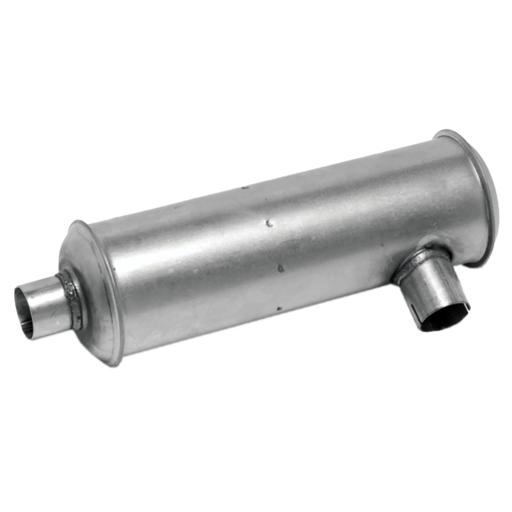

| 22769 |
| 1M13284800 |
| DN M045193 |
| DN M045193 |
| 021997 |
| 00810260 |
| 00810262 |
| 05910121 |
| 1901334 |
| 2191-M045193 |
| 31075HDM |
| 3617Q |
| 88H168193 |
| DONM045193 |
| 12047E+53 |
