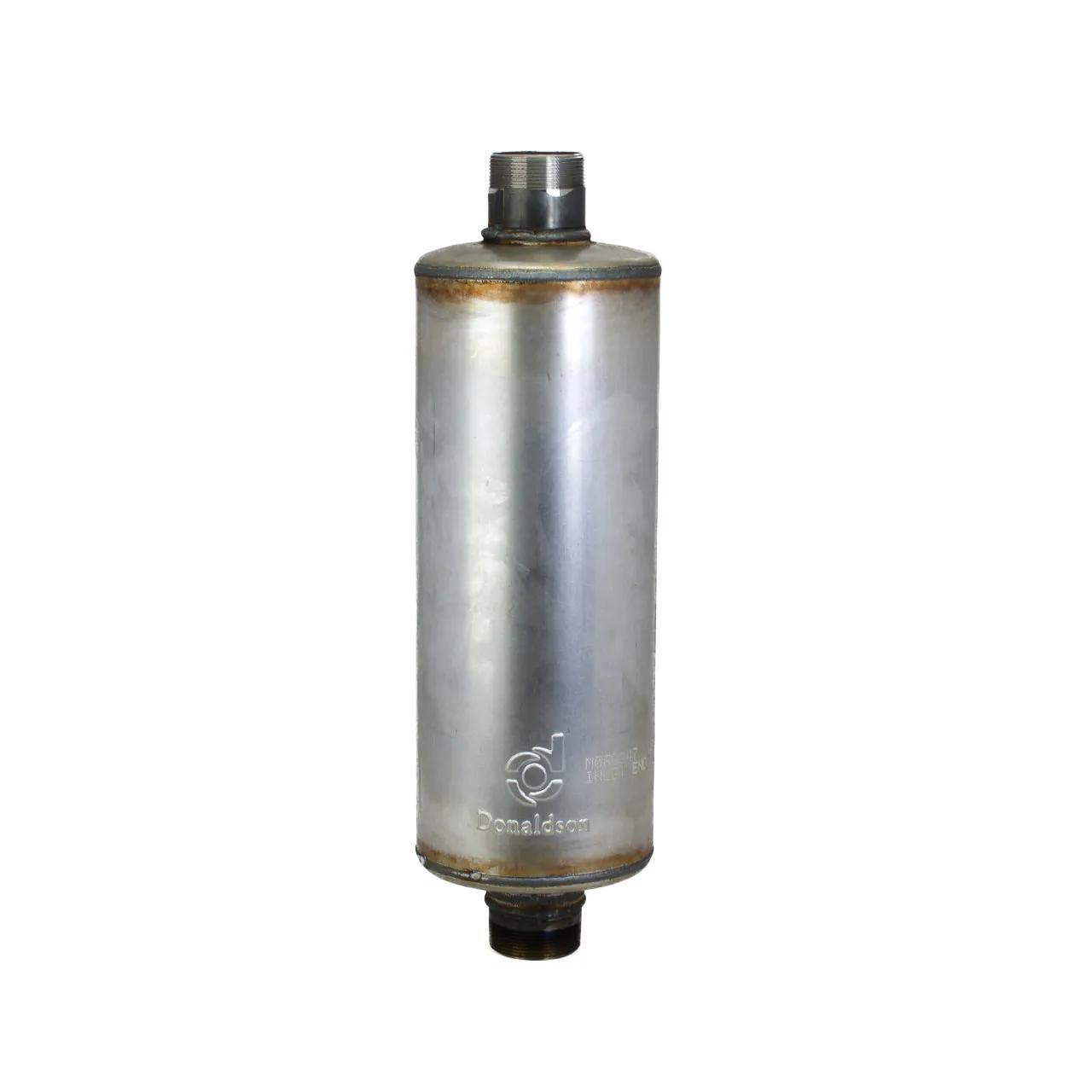

Muffler, Le: 14-1/2 in
#DONM060247
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 8 dBA |
| Attenuation High Range | 12 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 5-63/64 in (15.2 cm) |
| Body Length | 14-31/64 in (36.79 cm) |
| Inlet Diameter | 2-3/8 in (6.05 cm) |
| Length | 14-1/2 in (36.83 cm) |
| Outlet Diameter | 2 in (5.08 cm) |
| Overall Length | 20 in (50.8 cm) |
| Rated Flow High Range | 776.92 cfm (22 m³/min) |
| Rated Flow Low Range | 448.5 cfm (12.7 m³/min) |
| Rated Flow Mid Range | 776.92 cfm (22 m³/min)[delete] |
| Length Range | 14 to 15 in |
| Style | Style 1 |
Interchanges & Equivalent parts:
| 3878 |
| MPT20 |
| X12209 |
| 1901331 |
| 9575M060247 |
| 31251 |
| DCM060247 |
| 7000073228 |
| 22766 |
| 2191-M060247 |
| 31251HDM |
| DONM060247 |
| DN M060247 |
| DN M060247 |
