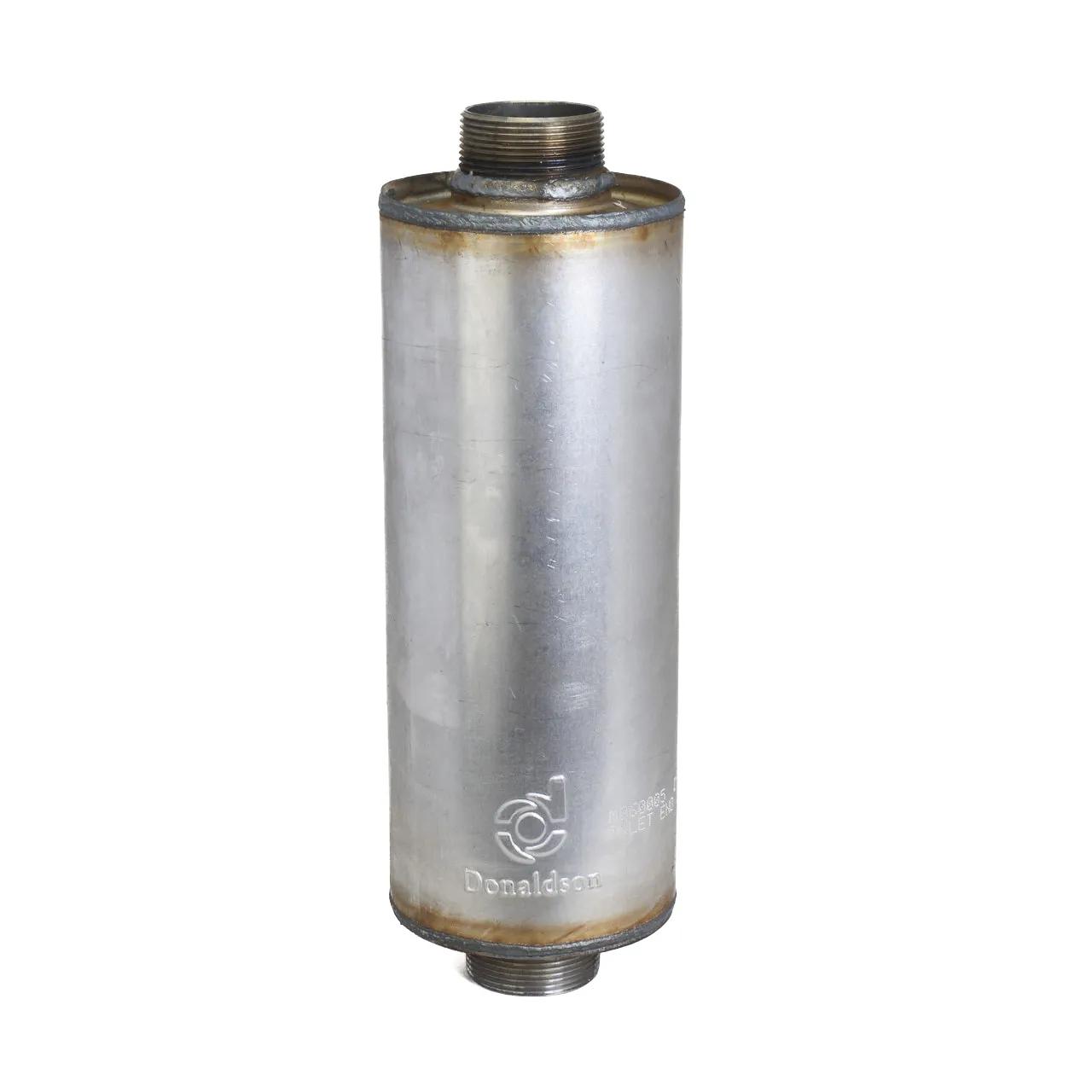

Muffler, Le: 15 in
#DONM060005
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 8 dBA |
| Attenuation High Range | 12 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 5-63/64 in (15.2 cm) |
| Body Length | 15 in (38.1 cm) |
| Inlet Diameter | 2-1/2 in (6.35 cm) |
| Length | 15 in (38.1 cm) |
| Outlet Diameter | 2-1/2 in (6.35 cm) |
| Overall Length | 18-7/64 in (46 cm) |
| Rated Flow High Range | 773.39 cfm (21.9 m³/min) |
| Rated Flow Low Range | 444.96 cfm (12.6 m³/min) |
| Rated Flow Mid Range | 773.39 cfm (21.9 m³/min)[delete] |
| Length Range | 15 to 16 in |
| Style | Style 1 |
Interchanges & Equivalent parts:
| M060005 |
| 3879 |
| 86172M |
| MPT25 |
| 3686 |
| 3686Q |
| 846100205 |
| 49688 |
| 51986 |
| RH049688 |
| 9575M060005 |
| 31077 |
| R18706 |
| 680009 |
| DCM060005 |
| 35673022 |
| 23991 |
| 78147 |
| S11732 |
| 87300004 |
| 8734 |
| 19TN726 |
| 46664250 |
| 41751 |
| 22765 |
| X12259 |
| 1550817 |
| RH49688 |
| DN M060005 |
| DN M060005 |
| 0680009 |
| 2191-M060005 |
| 31077HDM |
| 5181515 |
| DONM060005 |
| EN163 |
