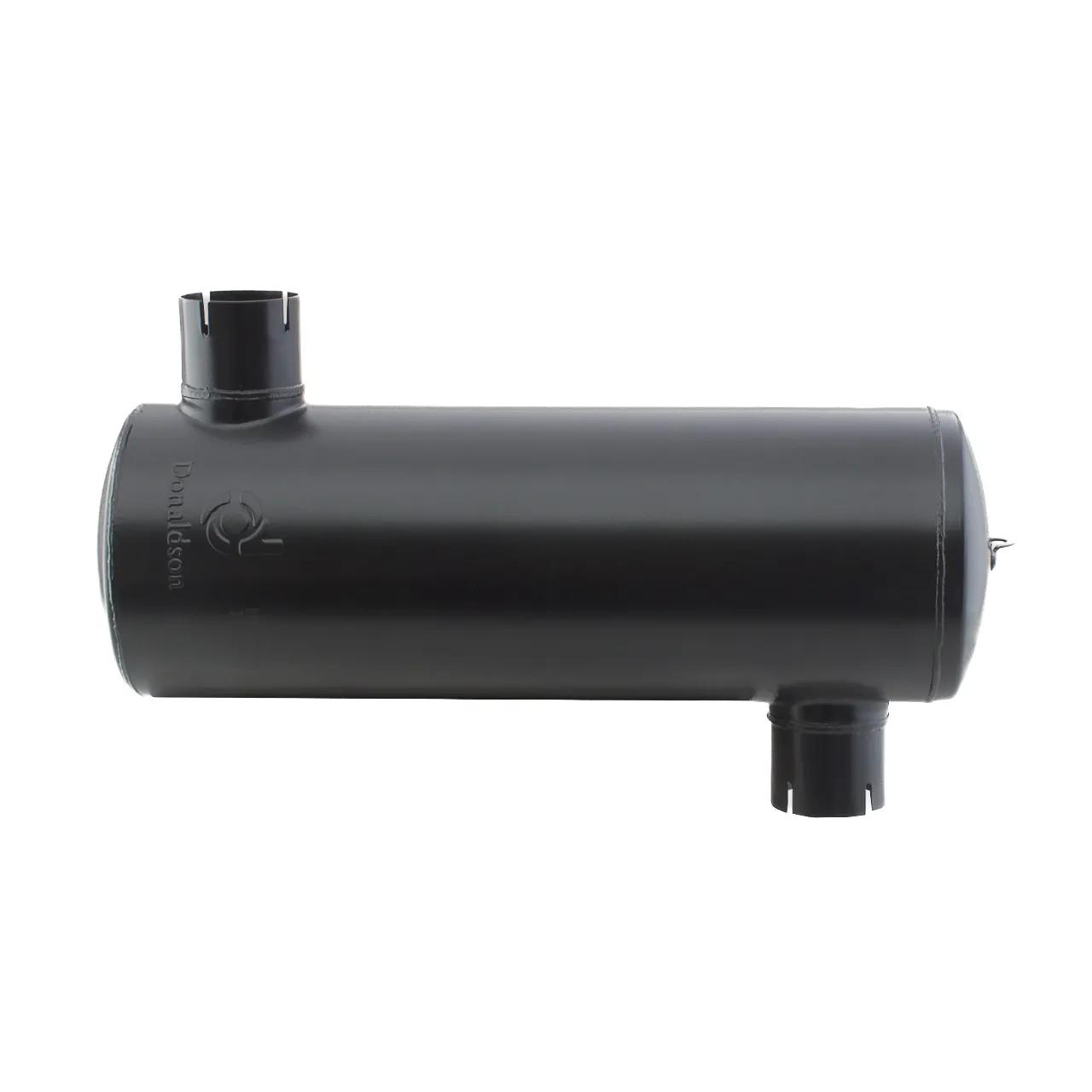

Muffler, Le: 17 in
#DONM065142
Product Overview
MUFFLER, ROUND STYLE 6
Features & Benefits
- MUFFLER, ROUND STYLE 6
Specifications
| Attenuation High Range | 18 dBA |
| Attenuation Low Range | 12 dBA |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 6-1/2 in (16.51 cm) |
| Body Length | 17-63/64 in (45.68 cm) |
| Diameter | 6-5/8 in (16.83 cm) |
| Diameter Range | 2 to 3 in |
| Inlet Clock Position | 9:00 |
| Inlet Diameter | 2-1/2 in (6.35 cm) |
| Length | 17 in (43.18 cm) |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 2-1/2 in (6.35 cm) |
| Overall Length | 19-27/32 in (50.41 cm) |
| Price Type | E |
| Rated Flow High Range | 610 cfm (17,3 m³/min) |
| Rated Flow Low Range | 442 cfm (12,5 m³/min) |
| Rated Flow Mid Range | 610 cfm (17,3 m³/min)[delete] |
| Standard Length | 17 to 18 in |
| Style | Style 6 |
