Muffler, Le: 17 in

#DONM065142

Product Overview

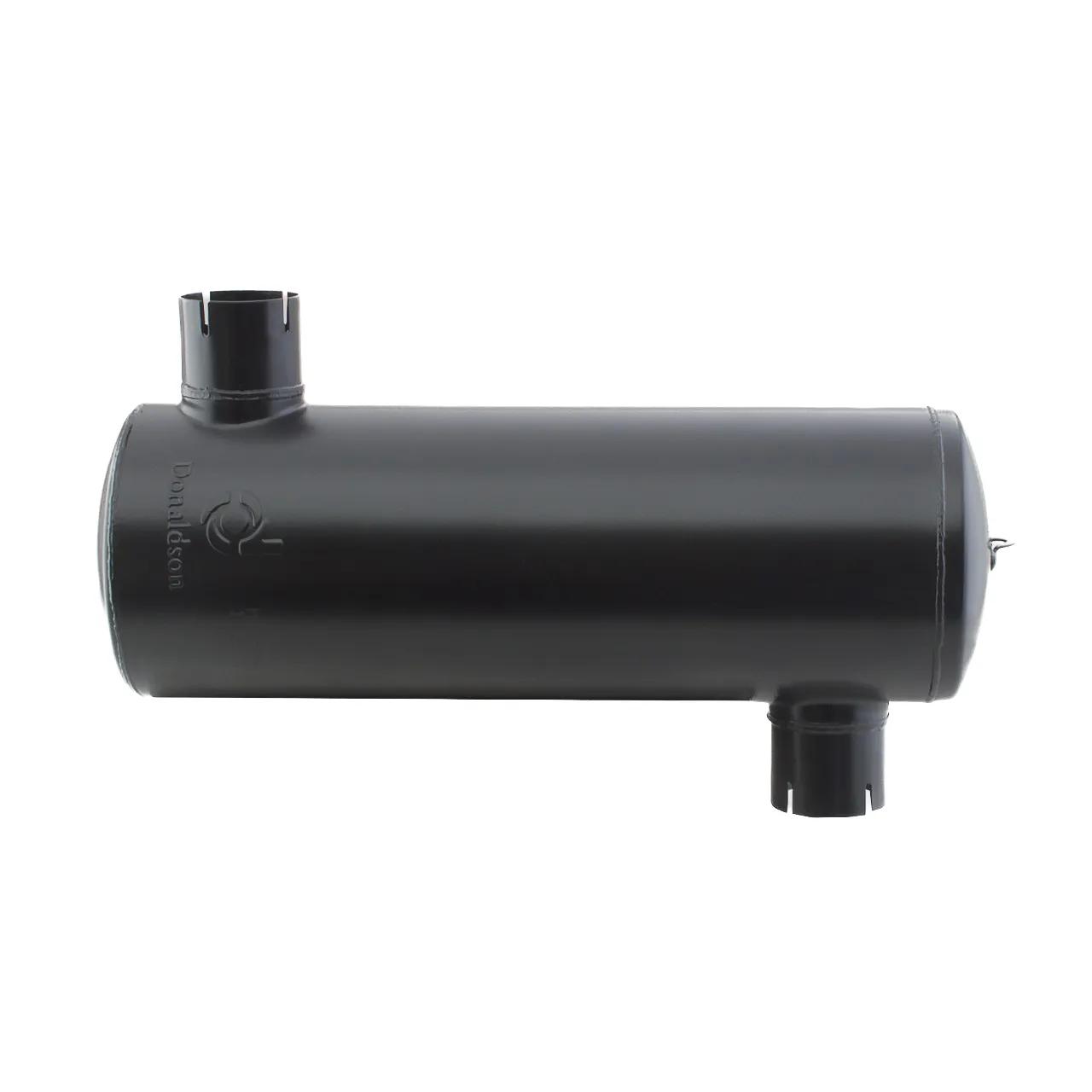

MUFFLER, ROUND STYLE 6

Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.

Products and technology designed to consistently meet required specifications – and your expectations.

Attenuation Low Range	12 dBA
Attenuation High Range	18 dBA
Back Pressure High-Range (Metric)	76 mm HG
Back Pressure High Range	2.99 in HG
Back Pressure Low Range	0.98 in HG
Back Pressure Mid Range	2.01 in HG
Back Pressure Low-Range (Metric)	25 mm HG
Back Pressure Mid-Range (Metric)	51 mm HG
Body Diameter	6-1/2 in
Body Length	17-63/64 in
Diameter	6-5/8 in
Diameter Range	2 to 3 in
Inlet Clock Position	9:00
Inlet Diameter	2-1/2 in
Length	17 in
Outlet Clock Position	12:00
Outlet Diameter	2-1/2 in
Overall Length	19-27/32 in
Rated Flow High Range	610 cfm
Rated Flow Low Range	442 cfm
Length Range	17 to 18 in
Style	Style 6

201559N

AU104421

11336

13000573

DN M065142

1-1336

2191-M065142

DCM065142

DONM065142
