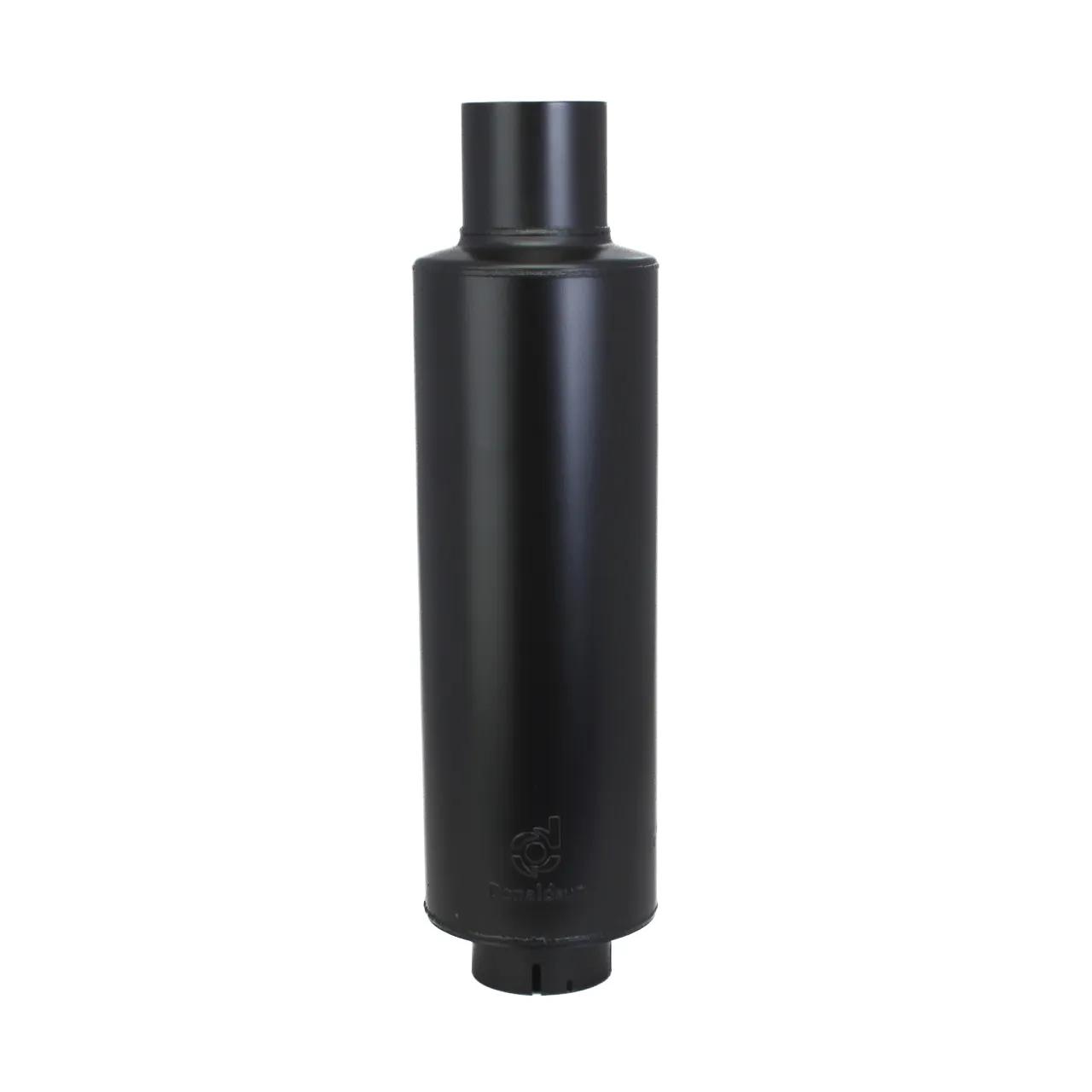

Muffler, Le: 18-3/4 in

#DONM070325

Product Overview

Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.

Products and technology designed to consistently meet required specifications – and your expectations.

Attenuation Low Range	10 dBA
Attenuation High Range	14 dBA
Back Pressure High-Range (Metric)	76 mm HG
Back Pressure High Range	2.99 in HG
Back Pressure Low Range	0.98 in HG
Back Pressure Mid Range	2.01 in HG
Back Pressure Low-Range (Metric)	25 mm HG
Back Pressure Mid-Range (Metric)	51 mm HG
Body Diameter	7 in
Body Length	19-1/64 in
Color	Naturel
Diameter	7 in
Diameter Range	4 to 5 in
Inlet Diameter	4 in
Inlet Quantity	1
Inlet Type	Pipe Connection
Length	18-3/4 in
Outlet Diameter	4-1/8 in
Outlet Quantity	1
Outlet Type	Pipe Connection
Overall Length	25-1/2 in
Rated Flow High Range	1830 cfm
Rated Flow Low Range	1088 cfm
Length Range	18 to 19 in
Style	Style 1

M070325

20619T

13339213

TCBH135

2191-M070325

DONM070325

DN M070325

DCM070325
