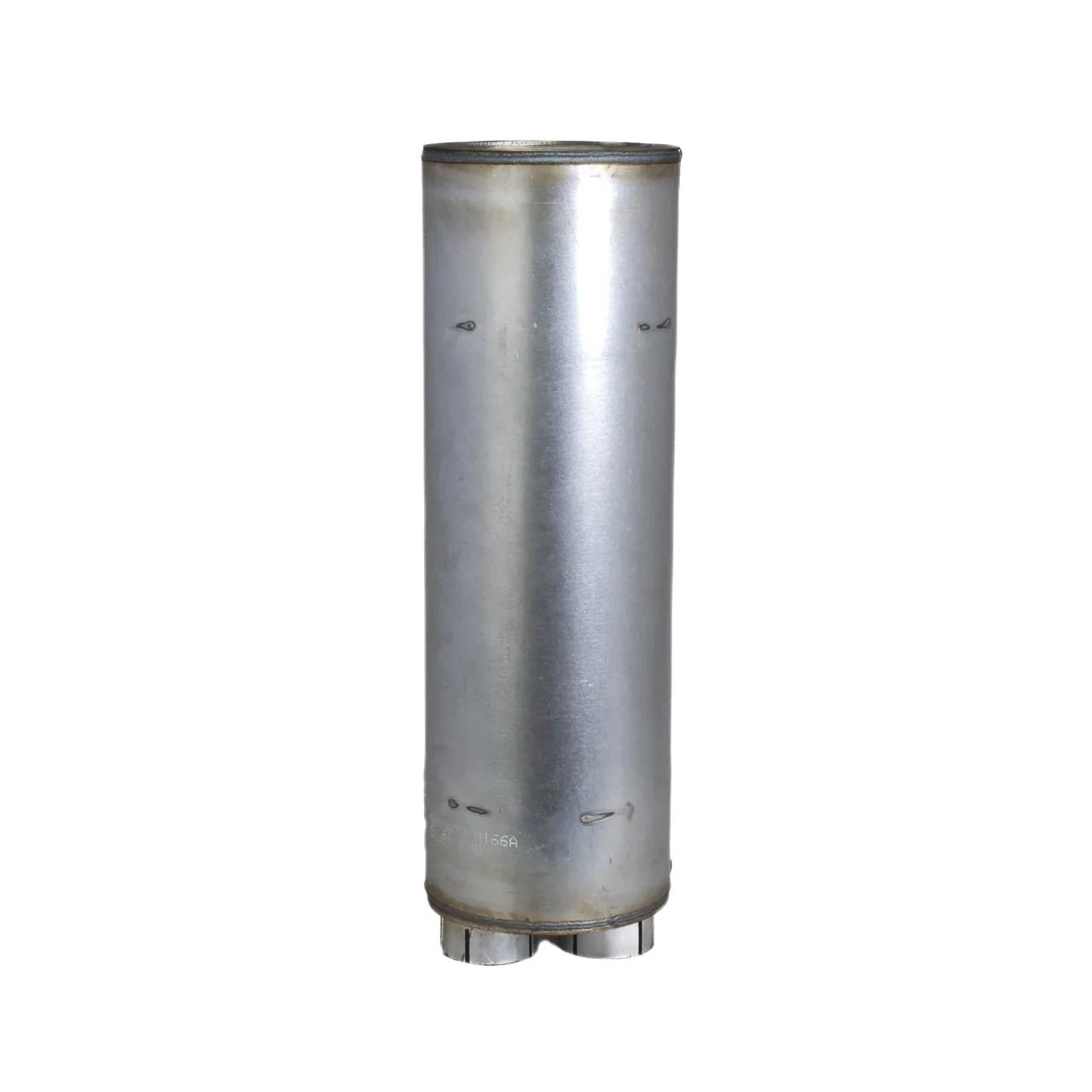

Muffler, Le: 20 in
#DONM065073
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 15 dBA |
| Attenuation High Range | 20 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 6-39/64 in (16.79 cm) |
| Body Length | 20 in (50.8 cm) |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 2-1/2 in (6.35 cm) |
| Length | 20 in (50.8 cm) |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 2-1/2 in (6.35 cm) |
| Overall Length | 21-1/2 in (54.61 cm) |
| Rated Flow High Range | 716.89 cfm (20.3 m³/min) |
| Rated Flow Low Range | 413.18 cfm (11.7 m³/min) |
| Rated Flow Mid Range | 716.89 cfm (20.3 m³/min)[delete] |
| Length Range | 20 to 21 in |
| Style | Style 5 |
Interchanges & Equivalent parts:
| NM065073 |
| 2797478 |
| 12466144 |
| 31242 |
| 12470842 |
| 46634150 |
| RM46634150 |
| RM4664150 |
| 43846716 |
| DCM065073 |
| 10837799 |
| 37799X |
| 2403783 |
| 8275035 |
| 31242HDM |
| DN M065073 |
| DN M065073 |
| 2191-M065073 |
| 6224934 |
| DONM065073 |
