Muffler, Le: 20 in
#DONM085411
Product Overview

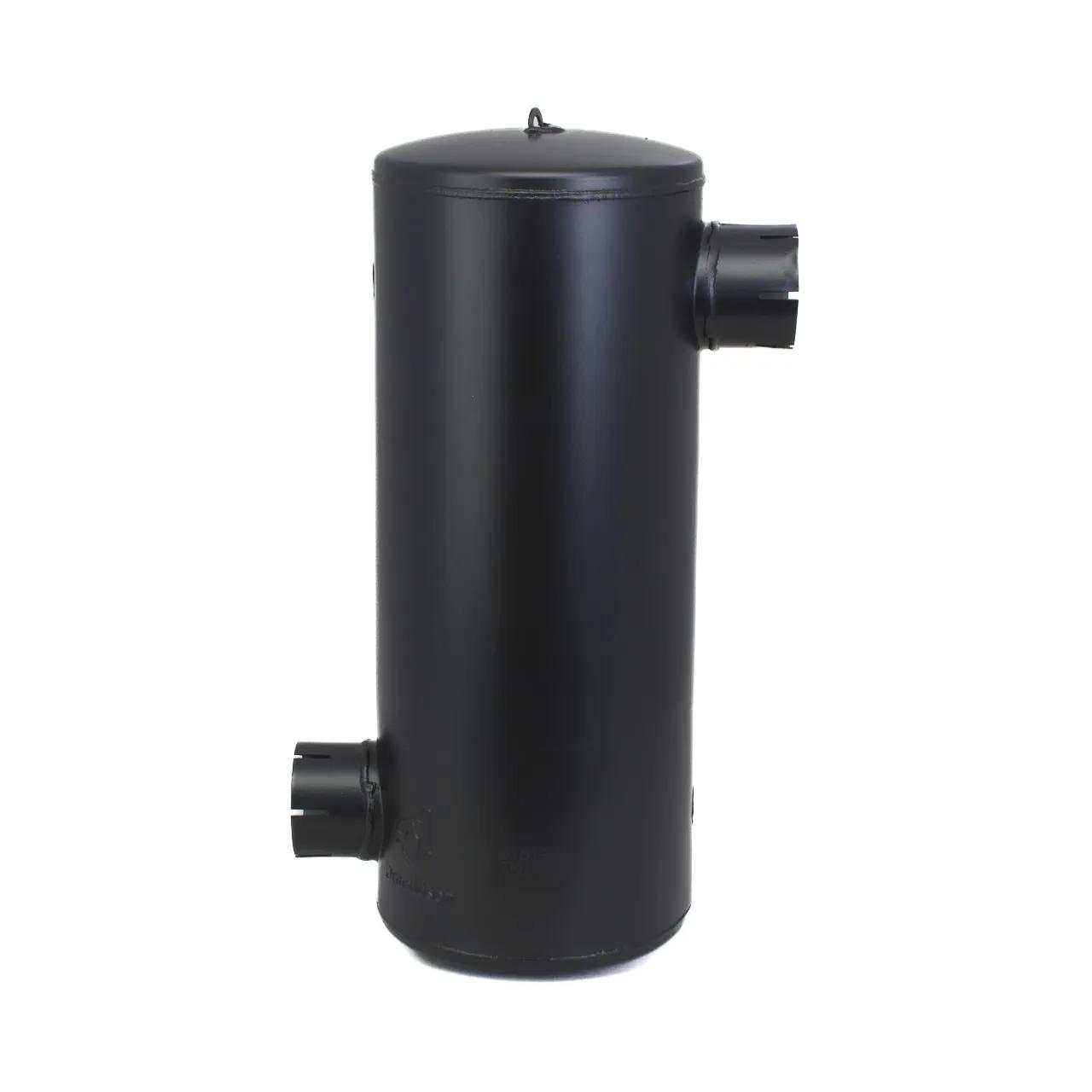

MUFFLER, ROUND STYLE 6
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 12 dBA |
| Attenuation High Range | 18 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 8-1/2 in (21.59 cm) |
| Body Length | 20 in (50.8 cm) |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 3 in (7.62 cm) |
| Length | 20 in (50.8 cm) |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 3 in (7.62 cm) |
| Overall Length | 21-57/64 in (55.61 cm) |
| Rated Flow High Range | 882.87 cfm (25 m³/min) |
| Rated Flow Low Range | 635.66 cfm (18 m³/min) |
| Rated Flow Mid Range | 882.87 cfm (25 m³/min)[delete] |
| Length Range | 20 to 21 in |
| Style | Style 6 |
Interchanges & Equivalent parts:
| 201564N |
| 307708 |
| M085411248147 |
| N100270 |
| 10000520 |
| 574554401 |
| M13035 |
| E8A0593 |
| 4170 |
| DN M085411 |
| DN M085411 |
| 050187850042 |
| 2191-M085411 |
| DCM085411 |
| DONM085411 |
| 50187850042 |
