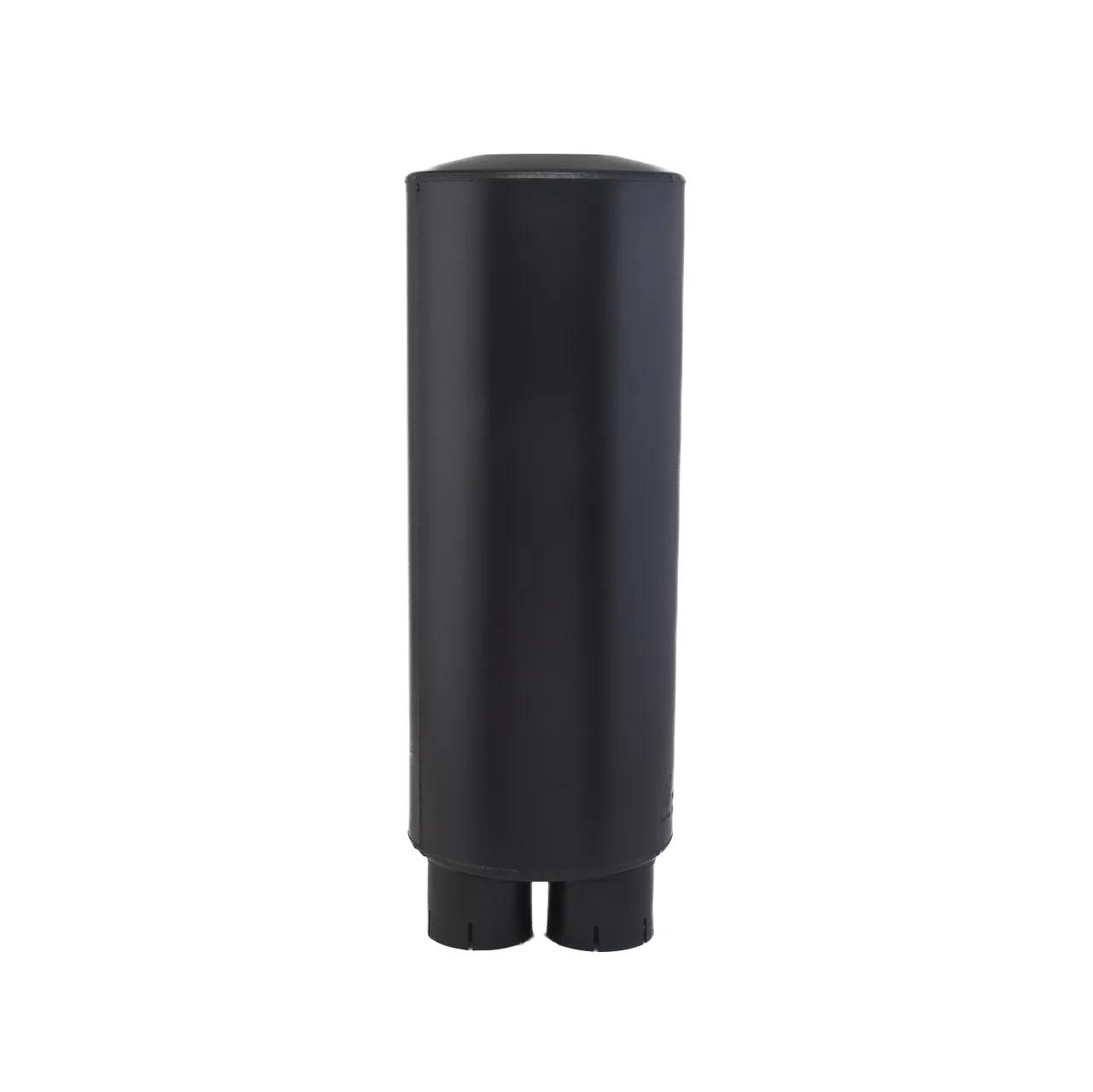

Muffler, Le: 21-3/4 in
#DONM091049
Specifications
| Attenuation High Range | 18 dBA |
| Attenuation Low Range | 12 dBA |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 9-1/64 in (22.91 cm) |
| Body Length | 22 in (55.88 cm) |
| Diameter | 9 in (22.86 cm) |
| Diameter Range | 3 to 4 in |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 3-33/64 in (8.94 cm) |
| Length | 21-3/4 in (55,25 cm) |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 3-1/2 in (8.91 cm) |
| Overall Length | 26-7/16 in (67.16 cm) |
| Price Type | E |
| Rated Flow High Range | 1526 cfm (43,22 m³/min) |
| Rated Flow Low Range | 866 cfm (24,5 m³/min) |
| Rated Flow Mid Range | 1526 cfm (43,22 m³/min)[delete] |
| Standard Length | 21 to 22 in |
| Style | Style 5 |
