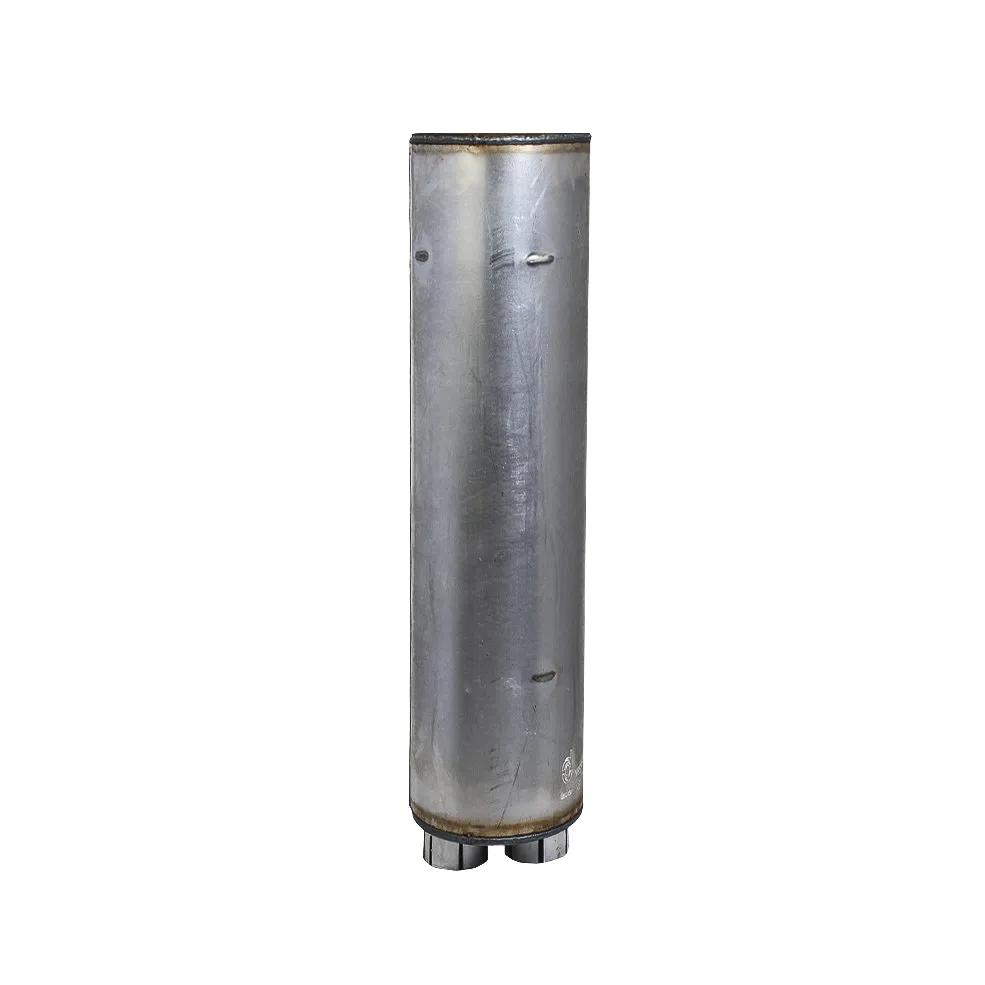

Muffler, Le: 22 in
Specifications
| Attenuation High Range | 20 dBA |
| Attenuation Low Range | 15 dBA |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 8-1/2 in (21.59 cm) |
| Body Length | 22 in (55.88 cm) |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 3 in (7.62 cm) |
| Length | 22 in (55.88 cm) |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 3 in (7.62 cm) |
| Overall Length | 23-1/2 in (59.69 cm) |
| Price Type | E |
| Rated Flow High Range | 1087.69 cfm (30.8 m³/min) |
| Rated Flow Low Range | 628.6 cfm (17.8 m³/min) |
| Rated Flow Mid Range | 1087.69 cfm (30.8 m³/min)[delete] |
| Standard Length | 22 to 23 in |
| Style | Style 5 |
Interchanges & Equivalent parts:
22637, 004013140000, 004013174000, 050187850033, 0501878533, 13145271, 145777001, 1909218, 2191-M085207, 1901305, 1909230, 2100150, 2403184, 31243HDM, 413174, 501878533, 53505476, 595182, 88300218, DCM085207, DN M085207, DN M085207, DONM085207, LL847413, LPP32697, P32697, P501878533, P532697, M085207, 4013140000, 4013174000, 145777001, 0501878533, 2403184, LL847413, 501878533, 413174, DN M085207, 004013140000, 53505476, 88300218, 31243HDM, P32697, DONM085207, 595182, 13145271, 050187850033, 004013174000, DN M085207, 1909218, LPP32697, DCM085207, 1901305, 1909230, 2191-M085207, P532697, 2100150, P501878533, 22637, 4013140000, 4013174000, M085207, 31243, 50187850033
