Muffler, Le: 22 in
#DONM091046
Product Overview

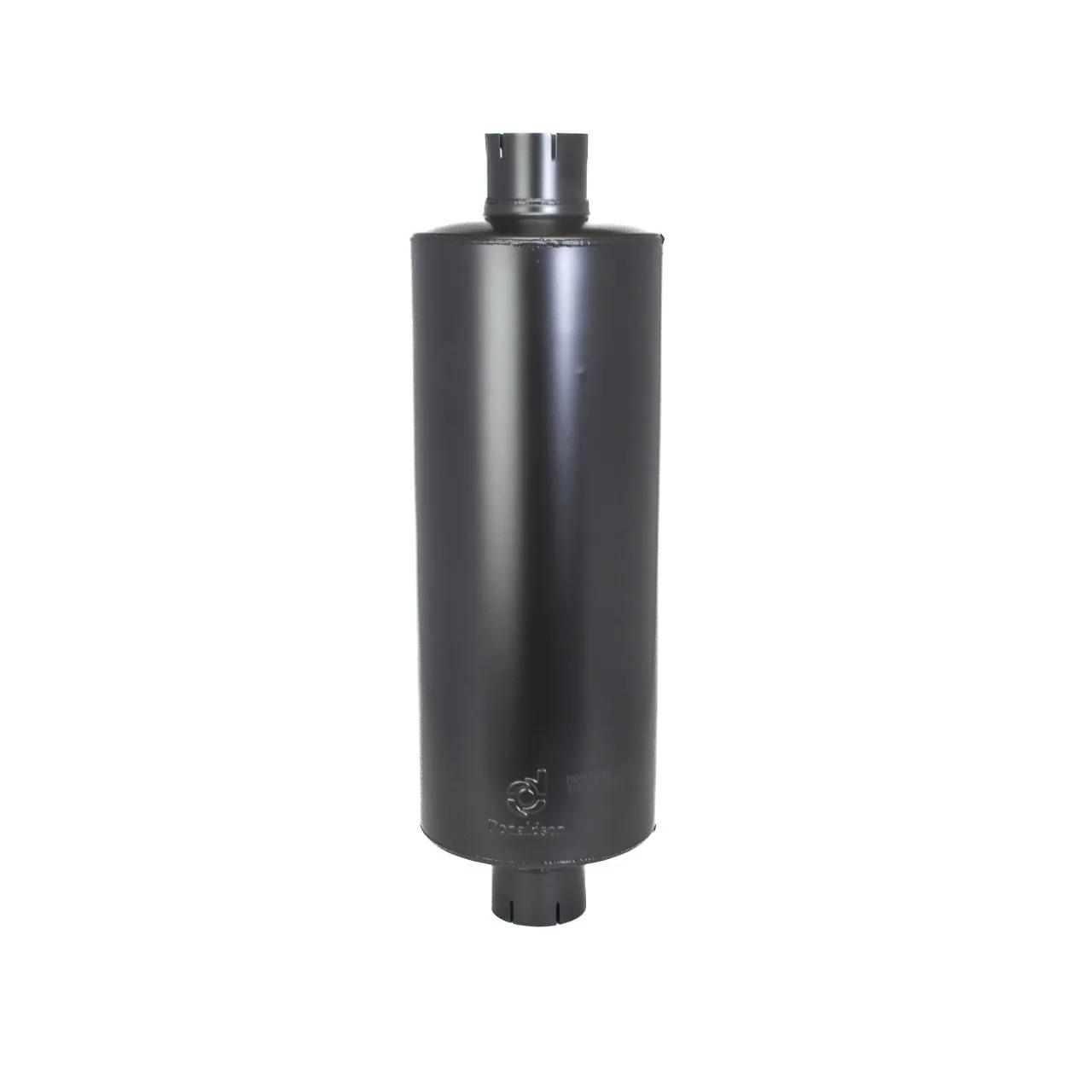

MUFFLER, ROUND STYLE 1
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 12 dBA |
| Attenuation High Range | 18 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 9-1/64 in (22.91 cm) |
| Body Length | 22 in (55.88 cm) |
| Inlet Diameter | 3-1/2 in (8.89 cm) |
| Length | 22 in (55.88 cm) |
| Outlet Diameter | 3-1/2 in (8.89 cm) |
| Overall Length | 29 in (73.66 cm) |
| Rated Flow High Range | 1525.59 cfm (43.2 m³/min) |
| Rated Flow Low Range | 865.21 cfm (24.5 m³/min) |
| Rated Flow Mid Range | 1525.59 cfm (43.2 m³/min)[delete] |
| Length Range | 22 to 23 in |
| Style | Style 1 |
Interchanges & Equivalent parts:
| 201565N |
| 7642000012 |
| 296277847 |
| 0868829 |
| 2191-M091046 |
| DCM091046 |
| DONM091046 |
| DN M091046 |
| DN M091046 |
| 868829 |
