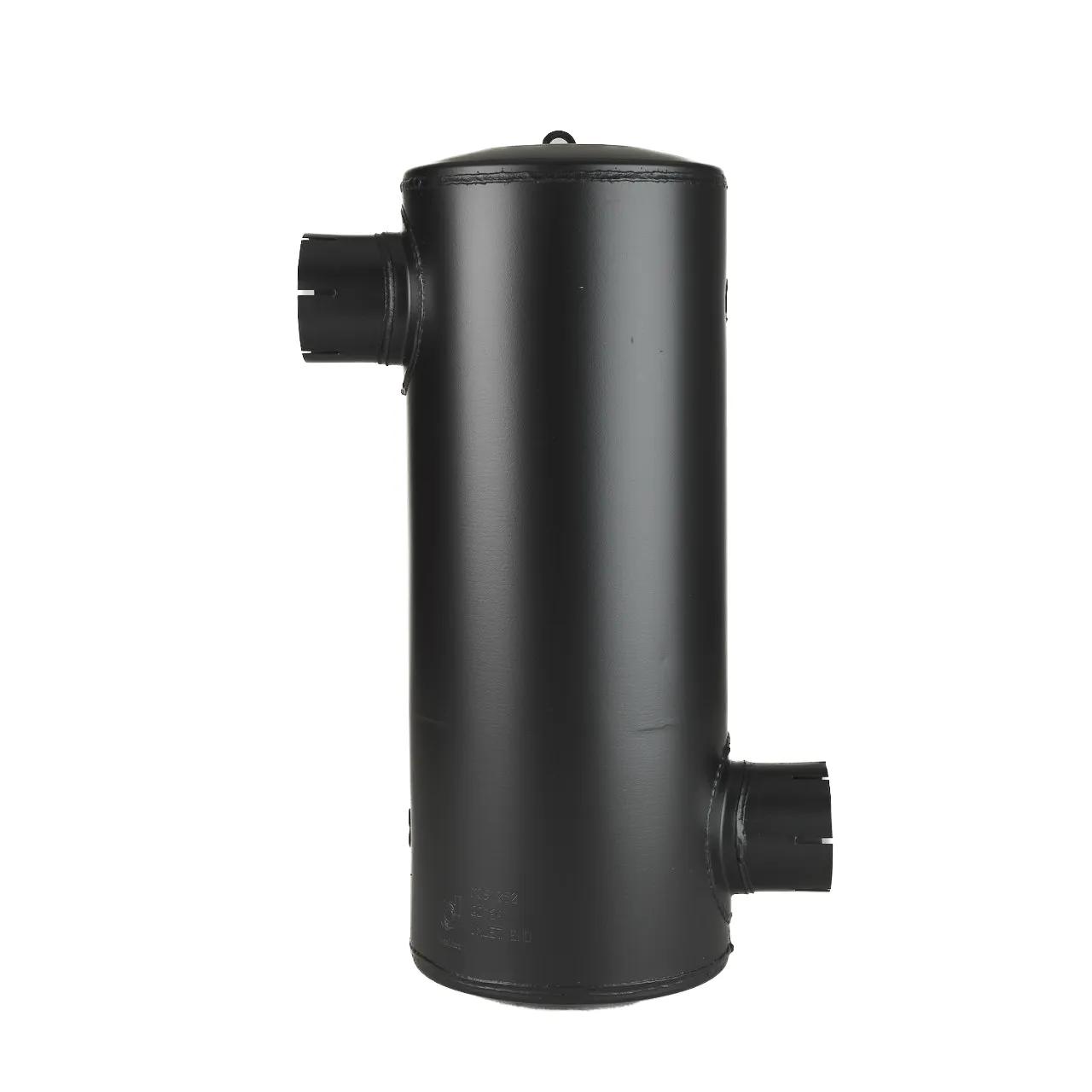

Muffler, Le: 22 in
#DONM091050
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 12 dBA |
| Attenuation High Range | 18 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 9-1/64 in (22.91 cm) |
| Body Length | 22 in (55.88 cm) |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 3-1/2 in (8.89 cm) |
| Length | 22 in (55.88 cm) |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 3-1/2 in (8.89 cm) |
| Overall Length | 23-25/32 in (60.41 cm) |
| Rated Flow High Range | 1200.7 cfm (34 m³/min) |
| Rated Flow Low Range | 865.21 cfm (24.5 m³/min) |
| Rated Flow Mid Range | 1200.7 cfm (34 m³/min)[delete] |
| Length Range | 22 to 23 in |
| Style | Style 6 |
Interchanges & Equivalent parts:
| 201569N |
| 8NG1001506 |
| 10000521 |
| 296274651 |
| DN M091050 |
| DN M091050 |
| 050187850043 |
| 201559N |
| 2191-M091050 |
| DCM091050 |
| DONM091050 |
| 50187850043 |
