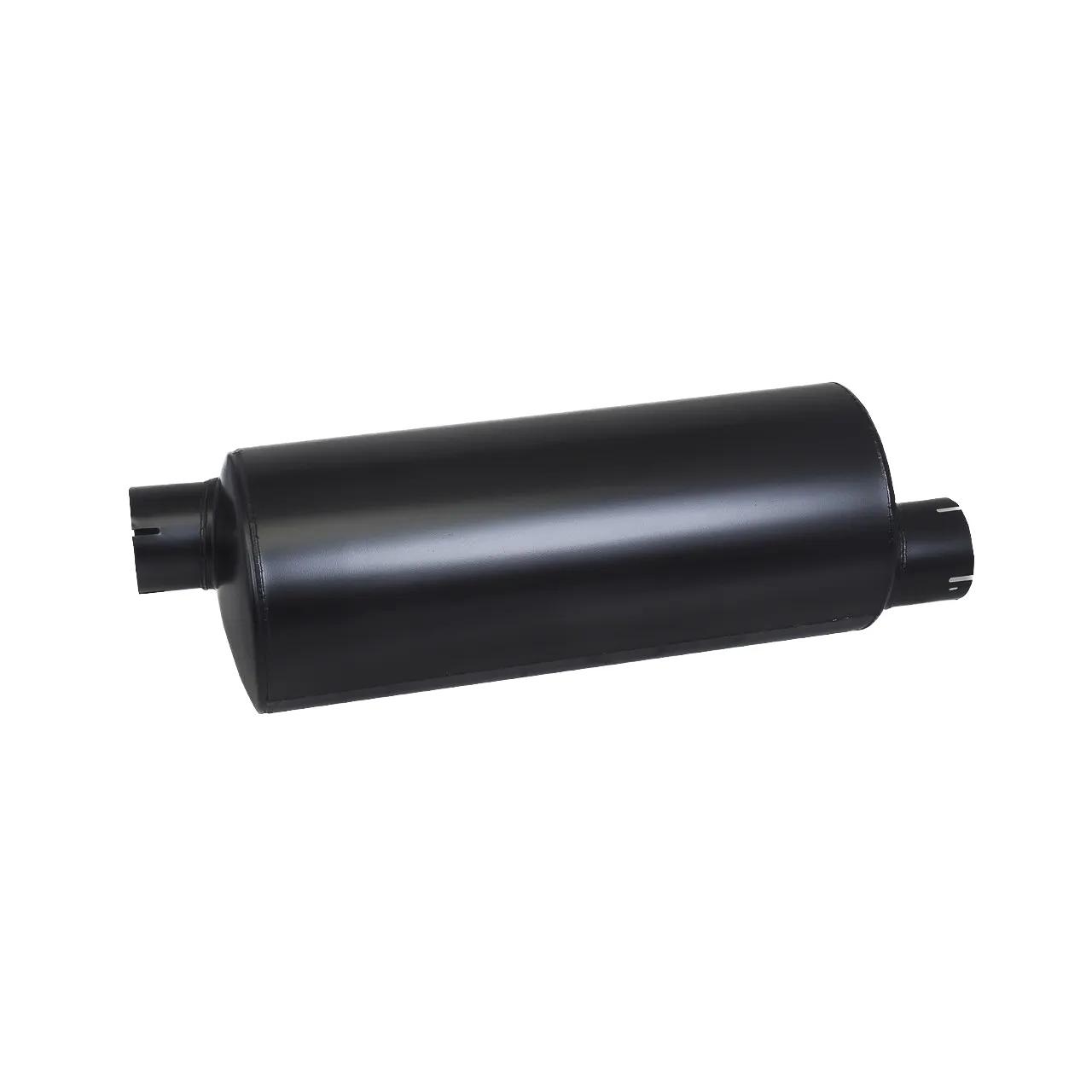

Muffler, Le: 24 in
#DONM101168
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 12 dBA |
| Attenuation High Range | 18 dBA |
| Back Pressure High-Range (Metric) | 51 mm HG |
| Back Pressure High Range | 2.01 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 10 in (25.4 cm) |
| Body Length | 24-1/64 in (61.01 cm) |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 4 in (10.16 cm) |
| Length | 24 in (60.96 cm) |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 4 in (10.16 cm) |
| Overall Length | 32 in (81.28 cm) |
| Rated Flow High Range | 1567.97 cfm (44.4 m³/min) |
| Rated Flow Low Range | 1412.59 cfm (40 m³/min) |
| Rated Flow Mid Range | 1567.97 cfm (44.4 m³/min)[delete] |
| Length Range | 24 to 25 in |
| Style | Style 2 |
Interchanges & Equivalent parts:
| 201571N |
| 194456 |
| 194456A |
| LL847463 |
| 2191-M101168 |
| DCM101168 |
| DONM101168 |
| DN M101168 |
| DN M101168 |
