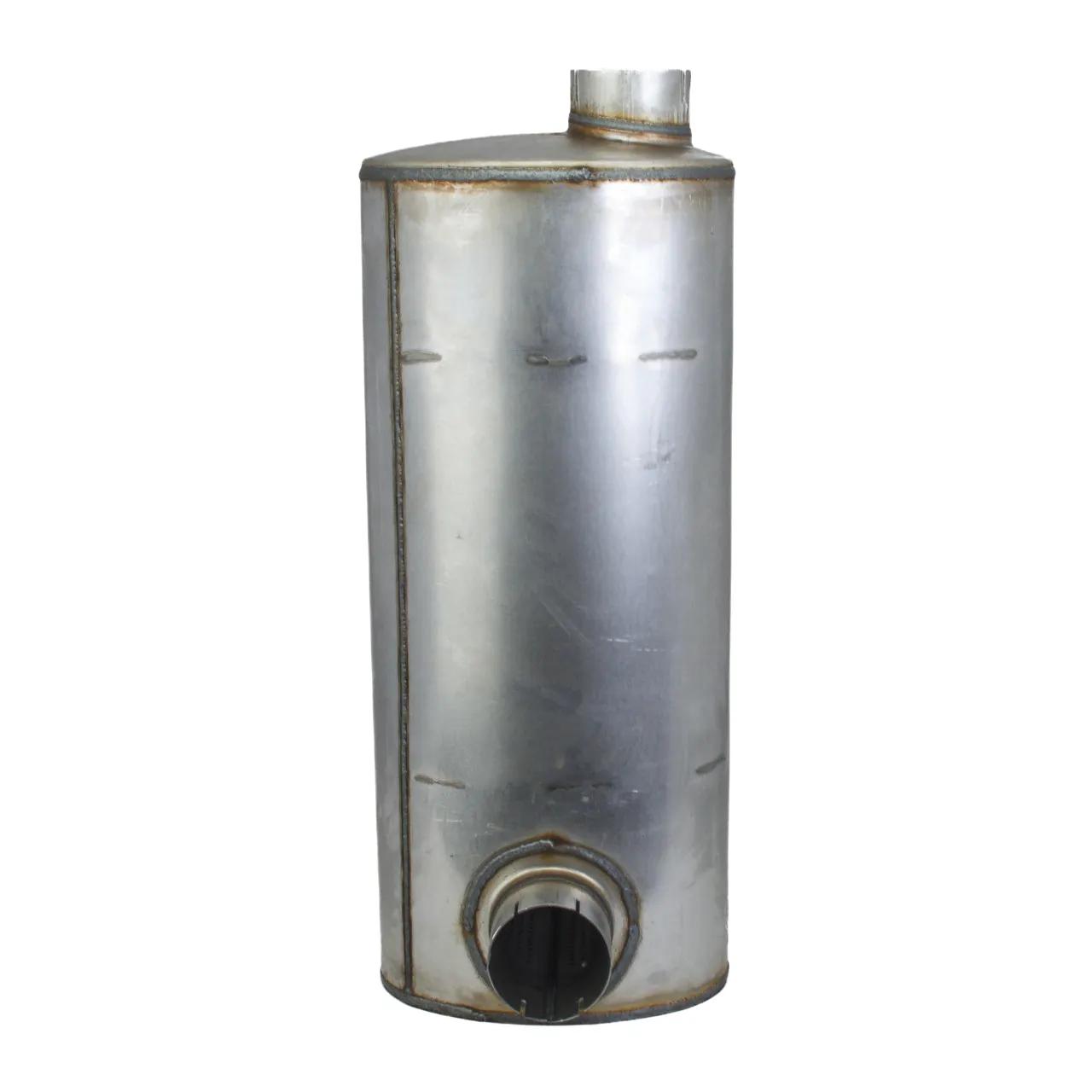

Muffler, Le: 26-1/8 in

#DONM090301

Product Overview

Why Choose Donaldson?

Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.

Products and technology designed to consistently meet required specifications – and your expectations.

Attenuation Low Range	15 dBA
Attenuation High Range	20 dBA
Back Pressure High-Range (Metric)	76 mm HG
Back Pressure High Range	2.99 in HG
Back Pressure Low Range	0.98 in HG
Back Pressure Mid Range	2.01 in HG
Back Pressure Low-Range (Metric)	25 mm HG
Back Pressure Mid-Range (Metric)	51 mm HG
Body Diameter	8-5/16 in (21.12 cm)
Body Diameter Max	11-1/2 in (29.21 cm)
Body Length	26-9/64 in (66.4 cm)
Diameter	11-1/2 in (29.21 cm)
Diameter Range	3 to 4 in
Inlet Clock Position	6:00
Inlet Diameter	3-33/64 in (8.94 cm)
Length	26-1/8 in (66.37 cm)
Outlet Clock Position	9:00
Outlet Diameter	3-1/2 in (8.89 cm)
Overall Length	29-1/4 in (74.3 cm)
Rated Flow High Range	1113 cfm (31,52 m³/min)
Rated Flow Low Range	643 cfm (18,2 m³/min)
Rated Flow Mid Range	1113 cfm (31,52 m³/min)[delete]
Length Range	26 to 27 in
Style	Style 3
