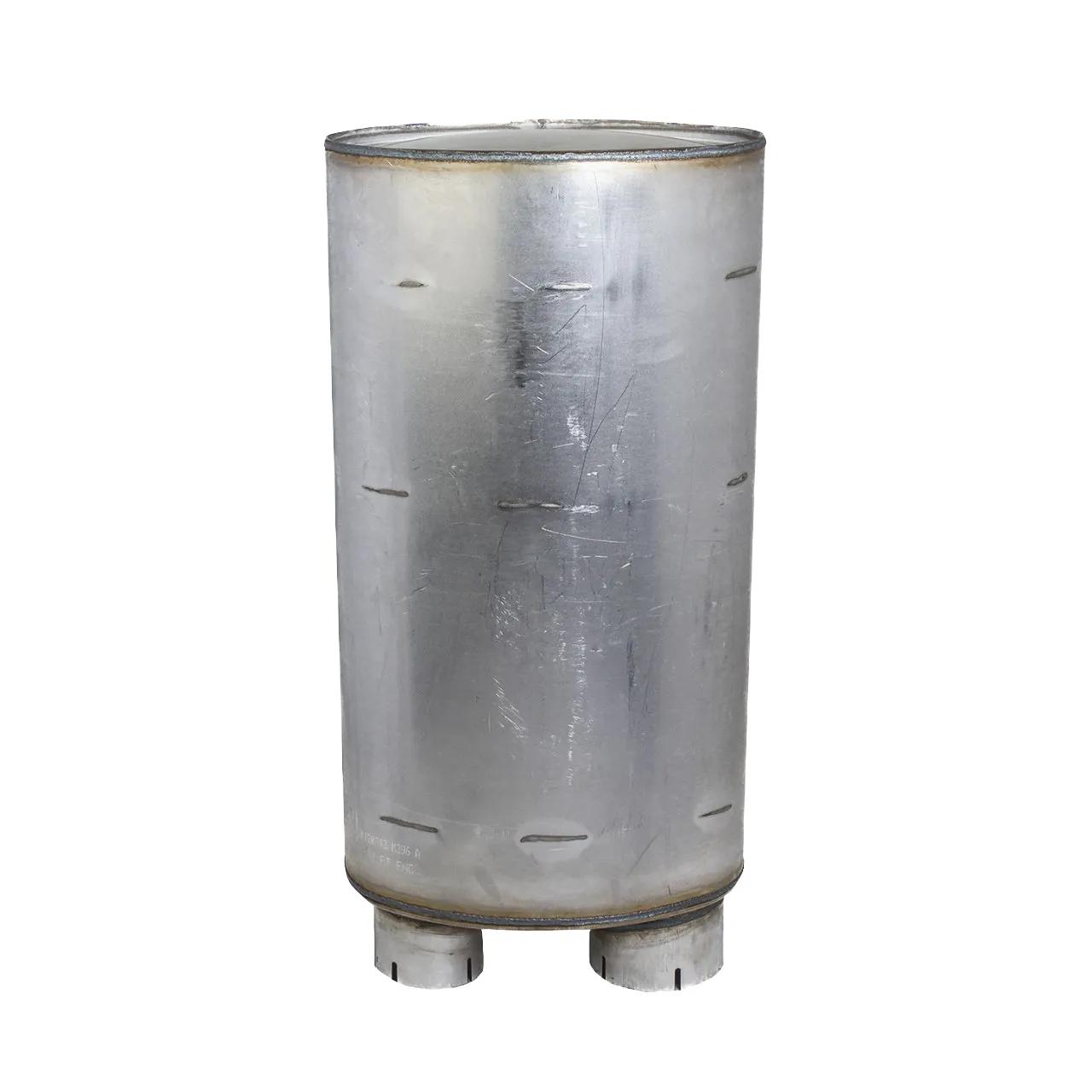

Muffler, Le: 26-3/4 in

#DONM120713

Product Overview

Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.

Products and technology designed to consistently meet required specifications – and your expectations.

Attenuation Low Range	13 dBA
Attenuation High Range	18 dBA
Back Pressure High-Range (Metric)	76 mm HG
Back Pressure High Range	2.99 in HG
Back Pressure Low Range	0.98 in HG
Back Pressure Mid Range	2.01 in HG
Back Pressure Low-Range (Metric)	25 mm HG
Back Pressure Mid-Range (Metric)	51 mm HG
Body Diameter	10 in
Body Diameter Max	15 in
Body Length	27 in
Diameter	15 in
Diameter Range	5 to 6 in
Inlet Clock Position	3:00
Inlet Diameter	4 in
Length	26-3/4 in
Outlet Clock Position	9:00
Outlet Diameter	5 in
Overall Length	31-1/8 in
Rated Flow High Range	2070 cfm
Rated Flow Low Range	1159 cfm
Length Range	26 to 27 in
Style	Style 5

M120713

DN M120713

TBB 61240169

02250183598

2191-M120713

2250183598

2ME3112

61240169

86543M

DCM120713

DONM120713

TBB61240169
