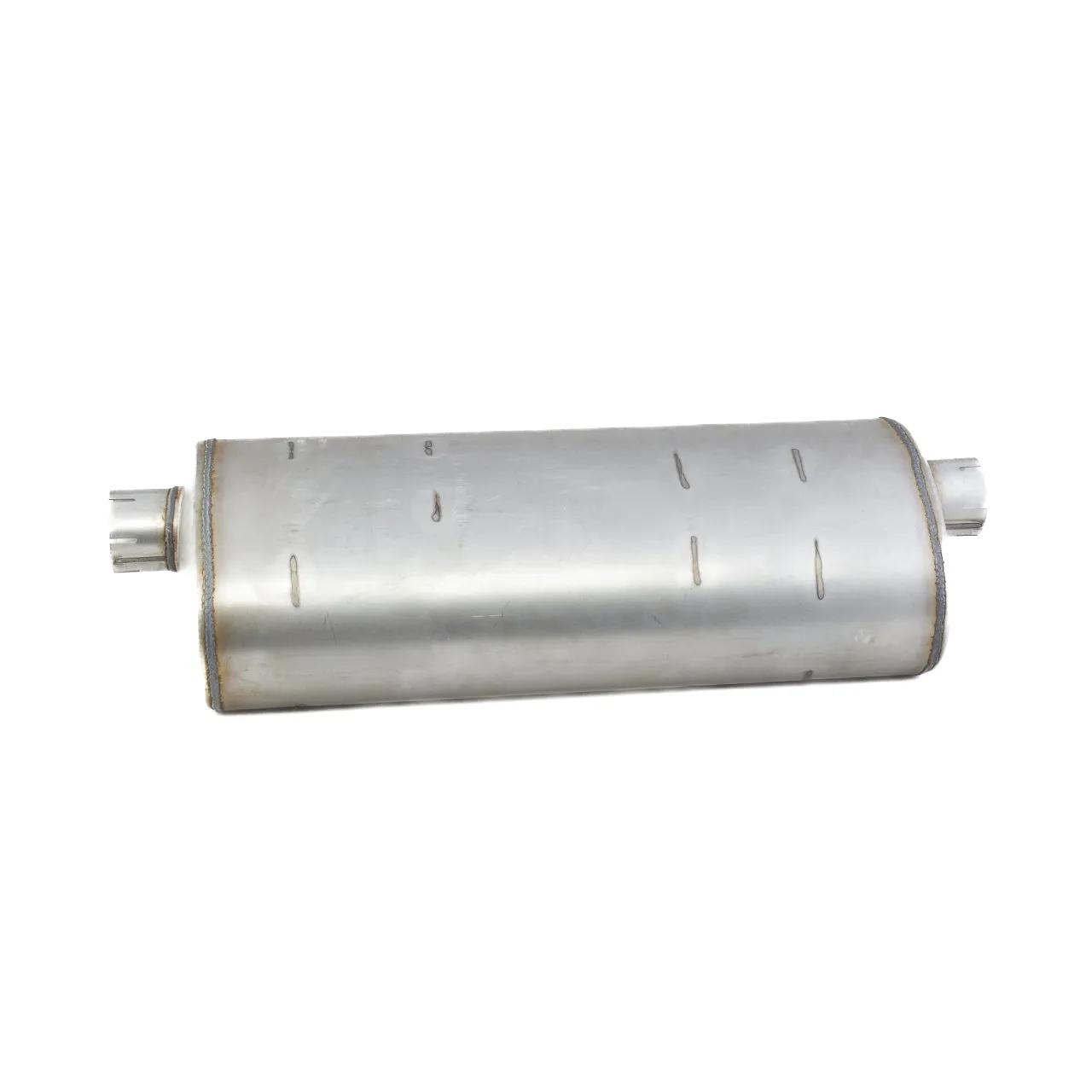

Muffler, Le: 26 in
#DONM090170
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 19 dBA |
| Attenuation High Range | 25 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 8-3/16 in |
| Body Diameter Max | 11-1/2 in |
| Body Length | 25-63/64 in |
| Inlet Clock Position | 3:00 |
| Inlet Diameter | 3 in |
| Length | 26 in |
| Outlet Clock Position | 3:00 |
| Outlet Diameter | 3 in |
| Overall Length | 33-3/4 in |
| Rated Flow High Range | 826.36 cfm |
| Rated Flow Low Range | 476.75 cfm |
| Length Range | 25 to 26 in |
| Style | Style 2 |
Interchanges & Equivalent parts:
| M090170 |
| 00810318 |
| 0551306996 |
| 0773905 |
| 114289 |
| 11875 |
| 1901303 |
| 2081801 |
| 2120402592 |
| 2191-M090170 |
| 23570018 |
| 2501803 |
| 27076533 |
| 27Z739 |
| 31126HDM |
| 34880 |
| 3616Q |
| 39617 |
| 420V4382 |
| 463765C1 |
| 466817C1 |
| 467614C1 |
| 480489C1 |
| 501803 |
| 50579085 |
| 508699 |
| 5292627 |
| 53500179 |
| 76420000031 |
| 7642000031 |
| 773905 |
| 86657M |
| D114289 |
| DCM090170 |
| DONM090170 |
| E650103 |
| F18658 |
| HD4070 |
| M2501803 |
| P2120402592 |
| S508699 |
| DN M090170 |
| DN M090170 |
| 3616 |
| 551306996 |
