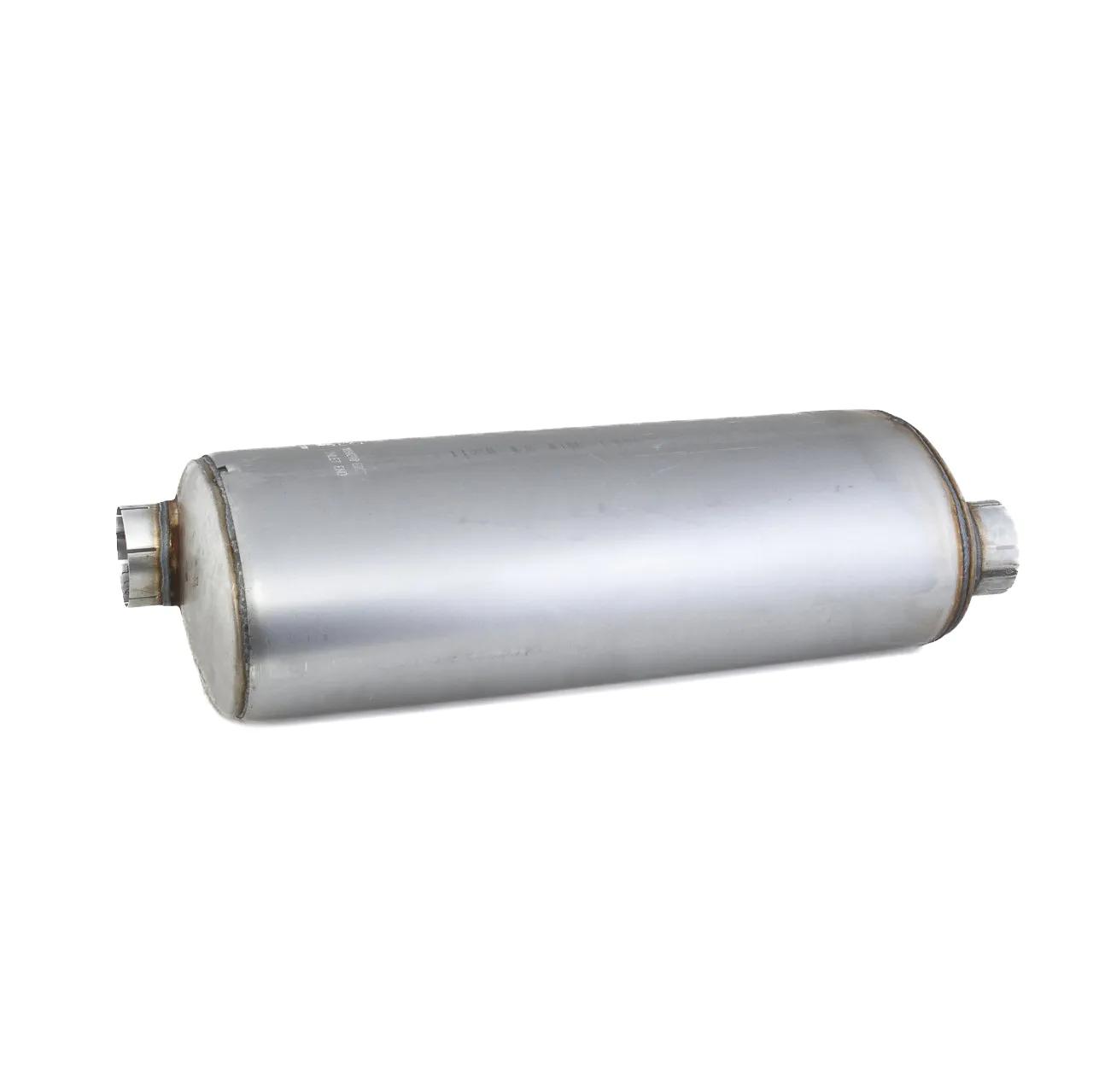

Muffler, Le: 26 in
#DONM090210
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Plage basse d'atténuation | 15 dBA |
| Gamme haute d'atténuation | 20 dBA |
| Gamme haute de contre-pression (métrique) | 76 mm HG |
| Back Pressure High Range | 2,99 po HG |
| Back Pressure Low Range | 0,98 po HG |
| Back Pressure Mid Range | 2,01 po HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 8-1/2 po (21,59 cm) |
| Body Diameter Max | 11-13/16 po (30,01 cm) |
| Body Length | 25-63/64 po (66 cm) |
| Diameter | 11-13/16 po (30,01 cm) |
| Diameter Range | 3 à 4 po |
| Inlet Clock Position | 3:00 |
| Inlet Diameter | 3-33/64 in (8.94 cm) |
| Length | 26 po (66,04 cm) |
| Outlet Clock Position | 9:00 |
| Outlet Diameter | 3-1/2 po (8,89 cm) |
| Overall Length | 32-1/4 po (81,92 cm) |
| Rated Flow High Range | 1325 pi³/min (37,52 m³/min) |
| Rated Flow Low Range | 763 pi³/min (21,6 m³/min) |
| Rated Flow Mid Range | 1325 cfm (37,52 m³/min)[delete] |
| Length Range | 26 à 27 po |
| Style | Style 2 |
| Type | Enveloppé |
Interchanges & Equivalent parts:
| M090210 |
| 86206M |
| 3634 |
| 3634Q |
| 1110389 |
| 16R48 |
| 114144400 |
| 27Q82 |
| 2510883 |
| 125925 |
| 224620 |
| 34691 |
| F19008 |
| 1503535 |
| DNM090210 |
| 73671042 |
| 83671042 |
| 93671042 |
| VA25990014 |
| VA25990015 |
| 7642000055 |
| 7642000059 |
| 31129W |
| 35797877 |
| 43919646 |
| RM43919646 |
| DCM090210 |
| 3220039 |
| 810803400 |
| S224620 |
| FP1503535 |
| LL847245 |
| D132041 |
| 23374 |
| 2403044 |
| 211516500 |
| C138018 |
| 902353 |
| 00023374 |
| 044751 |
| 2191-M090210 |
| 810090220 |
| DONM090210 |
| W22551 |
| DN M090210 |
| DN M090210 |
| 22632 |
| 44751 |
