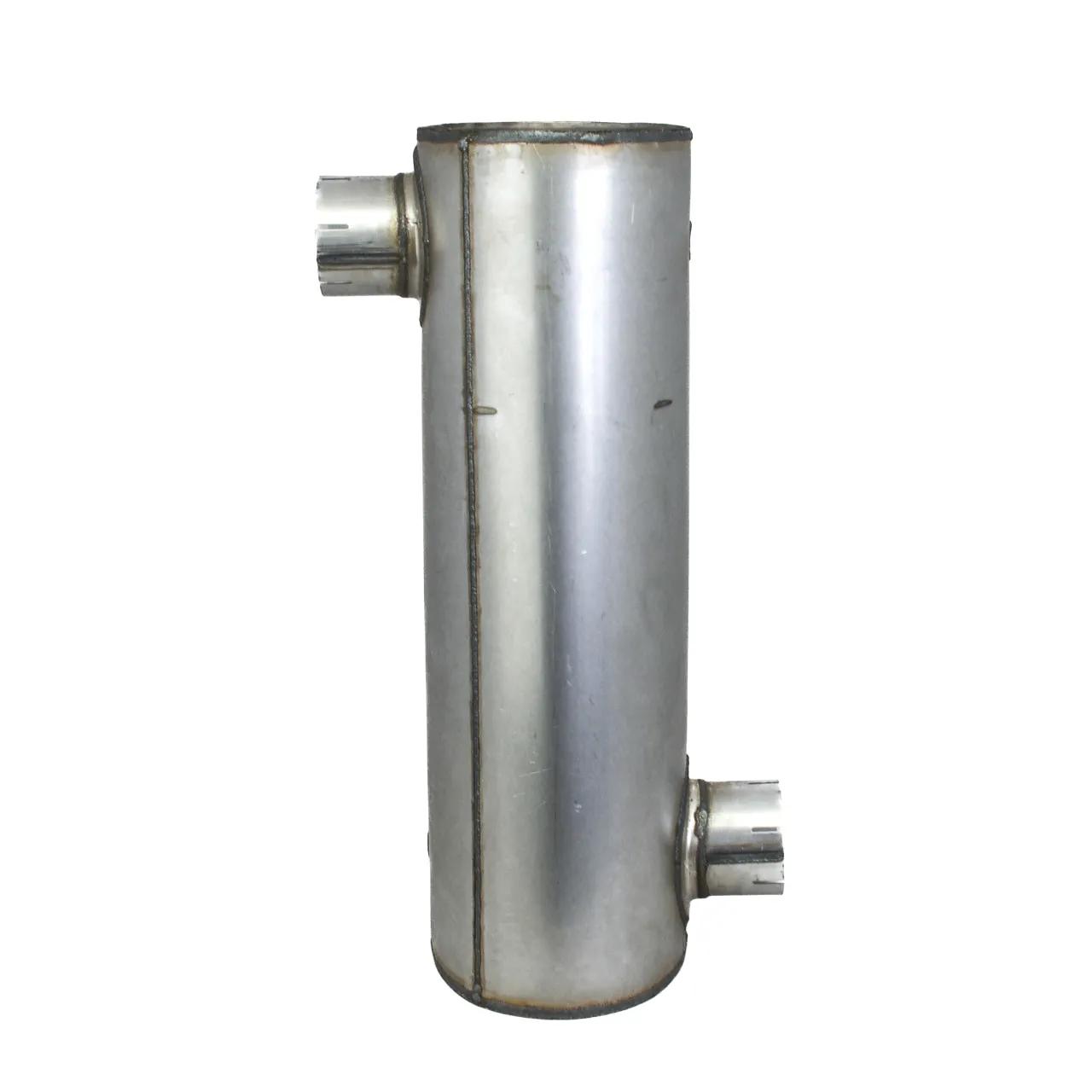

Muffler, Le: 26 in
#DONM090598
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 15 dBA |
| Attenuation High Range | 20 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 8-5/16 in |
| Body Diameter Max | 11-1/2 in |
| Body Length | 25-63/64 in |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 3-1/2 in |
| Length | 26 in |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 3-1/2 in |
| Overall Length | 26 in |
| Rated Flow High Range | 1161.85 cfm |
| Rated Flow Low Range | 670.98 cfm |
| Length Range | 25 to 26 in |
| Style | Style 6 |
Interchanges & Equivalent parts:
| DN M090598 |
| DN M090598 |
| 10000644 |
| 2191-M090598 |
| 31248 |
| 31248HDM |
| 58861444 |
| DCM090598 |
| DONM090598 |
| LL847427 |
| MAN090598 |
| Y0602300395 |
