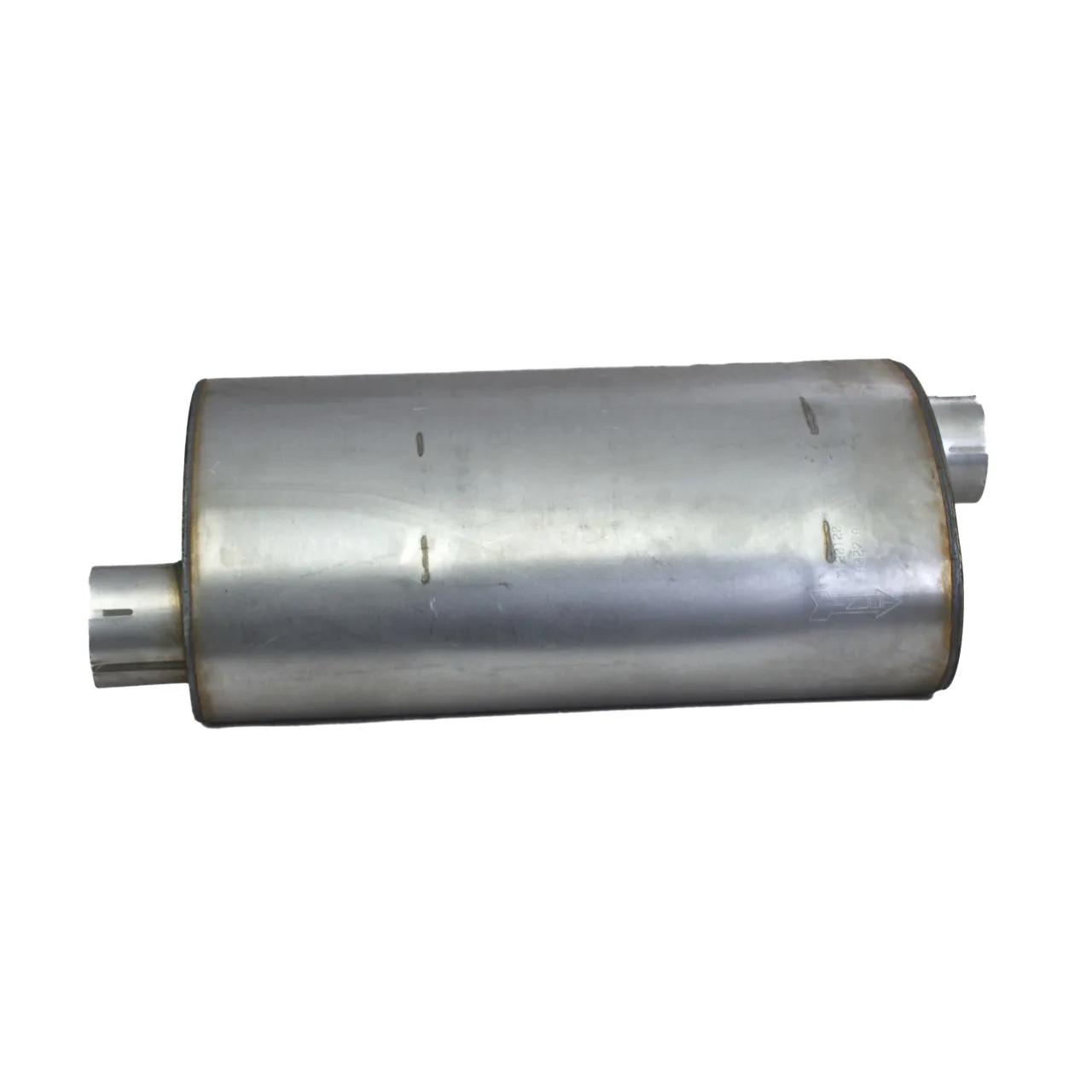

Muffler, Le: 26 in

#DONM120100

Product Overview

Why Choose Donaldson?

Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.

Products and technology designed to consistently meet required specifications – and your expectations.

Attenuation Low Range	15 dBA
Attenuation High Range	20 dBA
Back Pressure High-Range (Metric)	76 mm HG
Back Pressure High Range	2.99 in HG
Back Pressure Low Range	0.98 in HG
Back Pressure Mid Range	2.01 in HG
Back Pressure Low-Range (Metric)	25 mm HG
Back Pressure Mid-Range (Metric)	51 mm HG
Body Diameter	10 in (25.4 cm)
Body Diameter Max	15 in (38.1 cm)
Body Length	25-63/64 in (66 cm)
Inlet Clock Position	3:00
Inlet Diameter	4 in (10.16 cm)
Length	26 in (66.04 cm)
Outlet Clock Position	9:00
Outlet Diameter	4 in (10.16 cm)
Overall Length	32-1/2 in (82.55 cm)
Rated Flow High Range	1995.28 cfm (56.5 m³/min)
Rated Flow Low Range	1151.26 cfm (32.6 m³/min)
Rated Flow Mid Range	1995.28 cfm (56.5 m³/min)[delete]
Length Range	25 to 26 in
Style	Style 2
