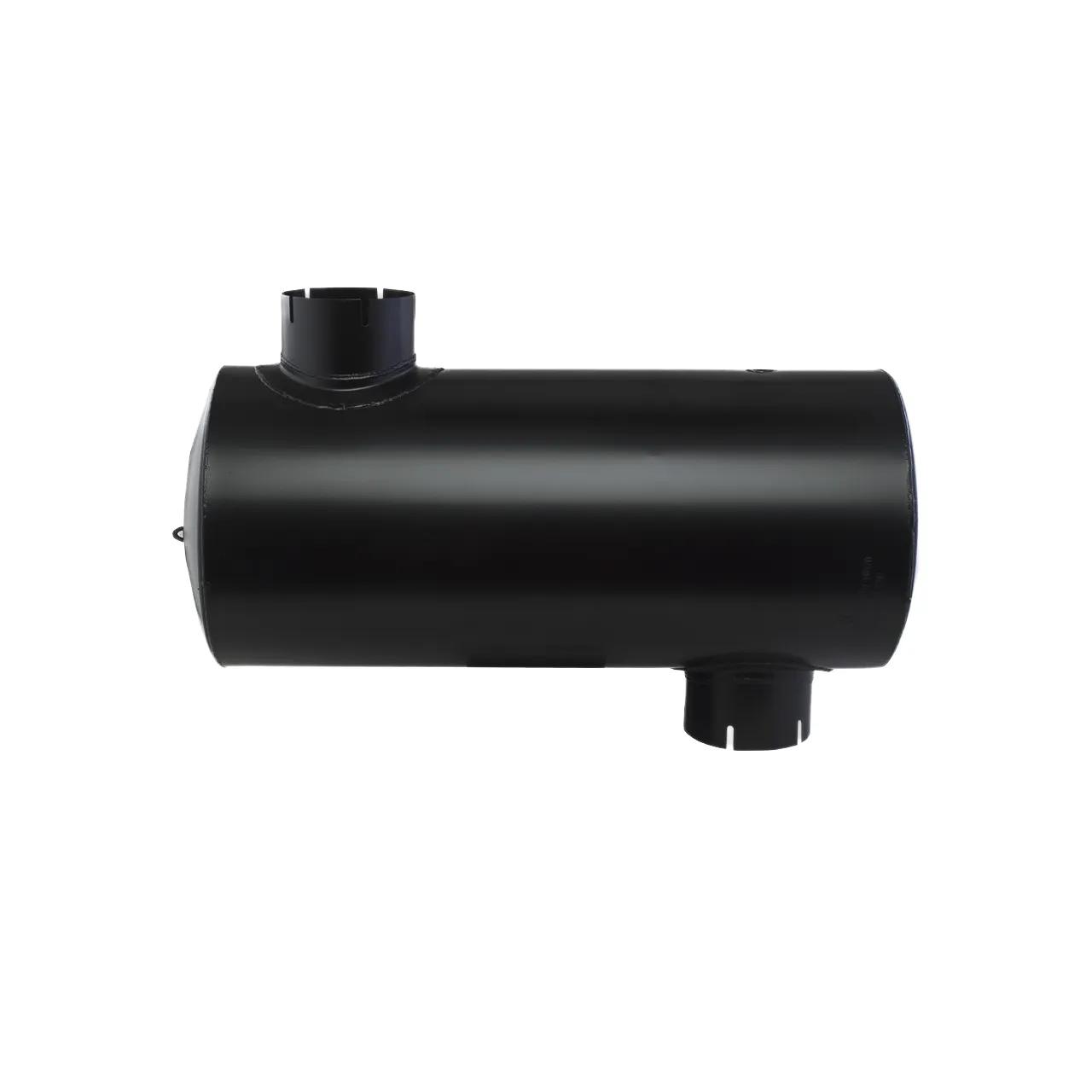

Muffler, Le: 26 in
#DONM120751
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 12 dBA |
| Attenuation High Range | 18 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 12 in (30.48 cm) |
| Body Length | 25-63/64 in (66 cm) |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 5 in (12.7 cm) |
| Length | 26 in (66.04 cm) |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 5 in (12.7 cm) |
| Overall Length | 29-19/64 in (74.42 cm) |
| Rated Flow High Range | 3097.1 cfm (87.7 m³/min) |
| Rated Flow Low Range | 1762.2 cfm (49.9 m³/min) |
| Rated Flow Mid Range | 3097.1 cfm (87.7 m³/min)[delete] |
| Length Range | 25 to 26 in |
| Style | Style 6 |
Interchanges & Equivalent parts:
| 201579N |
| 96207 |
| 80683303 |
| 2191-M120751 |
| DCM120751 |
| DONM120751 |
| DN M120751 |
| DN M120751 |
