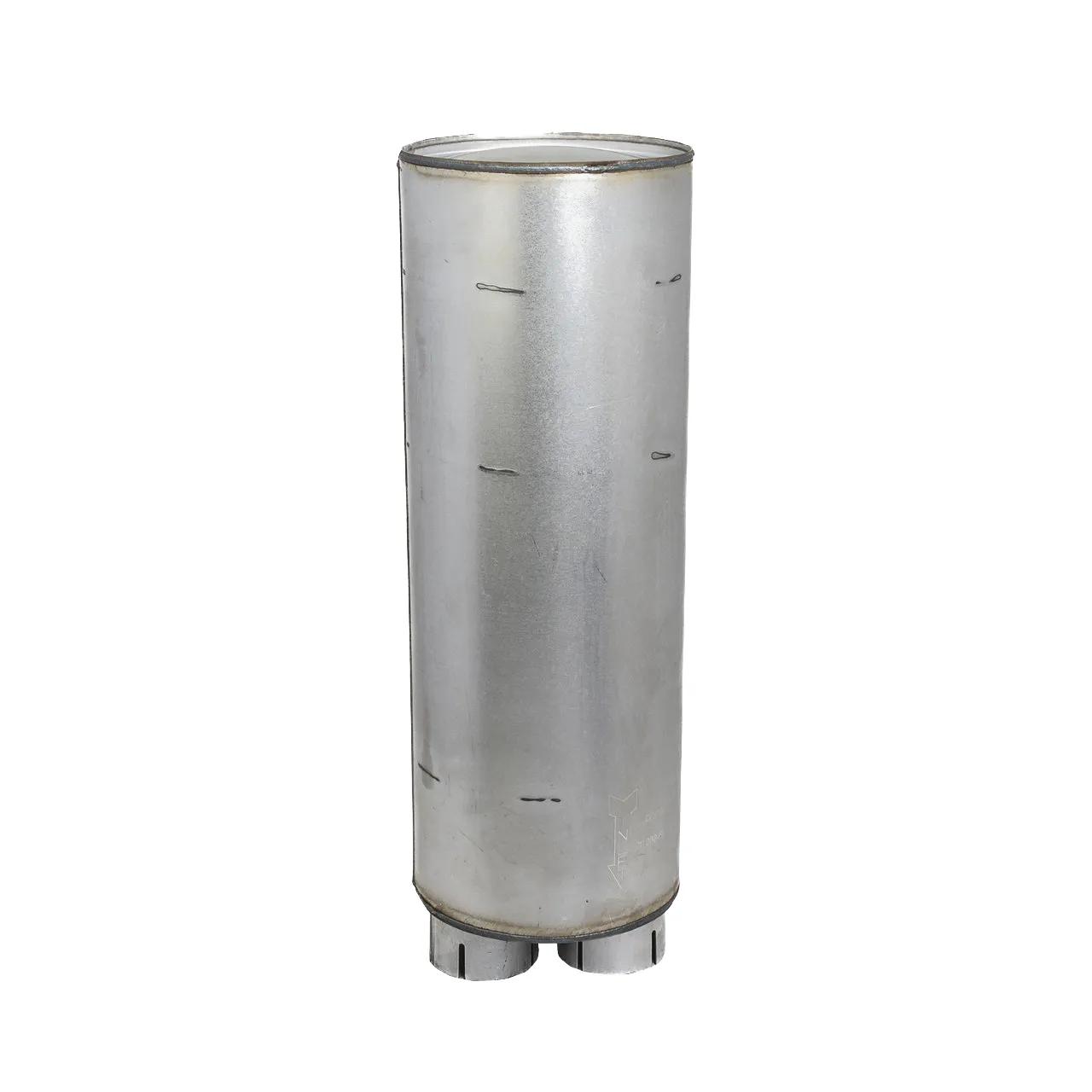

Muffler, Le: 27-3/4 in

#DONM100049

Product Overview

Why Choose Donaldson?

Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.

Products and technology designed to consistently meet required specifications – and your expectations.

Attenuation Low Range	15 dBA
Attenuation High Range	20 dBA
Back Pressure High-Range (Metric)	76 mm HG
Back Pressure High Range	2.99 in HG
Back Pressure Low Range	0.98 in HG
Back Pressure Mid Range	2.01 in HG
Back Pressure Low-Range (Metric)	25 mm HG
Back Pressure Mid-Range (Metric)	51 mm HG
Body Diameter	10 in (25.4 cm)
Body Length	27-49/64 in (70.53 cm)
Inlet Clock Position	12:00
Inlet Diameter	4 in (10.16 cm)
Length	27-3/4 in (70.49 cm)
Outlet Clock Position	6:00
Outlet Diameter	4 in (10.16 cm)
Overall Length	30-7/8 in (78.43 cm)
Rated Flow High Range	1447.9 cfm (41 m³/min)
Rated Flow Low Range	836.96 cfm (23.7 m³/min)
Rated Flow Mid Range	1447.9 cfm (41 m³/min)[delete]
Length Range	27 to 28 in
Style	Style 5
