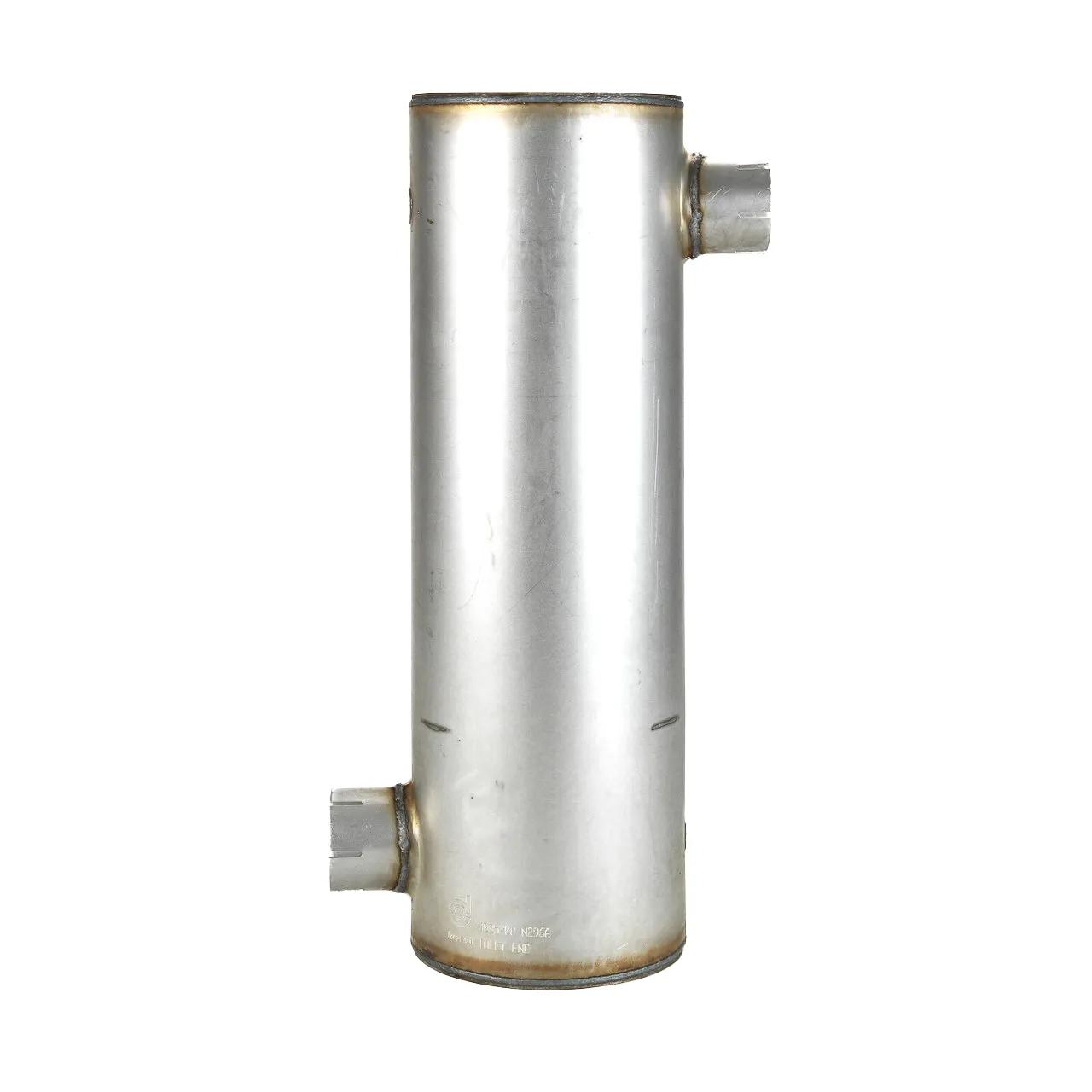

Muffler, Le: 27 in
#DONM085208
Product Overview
MUFFLER, ROUND STYLE 6
Features & Benefits
- MUFFLER, ROUND STYLE 6
Specifications
| Attenuation High Range | 20 dBA |
| Attenuation Low Range | 15 dBA |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 8-1/2 in (21.59 cm) |
| Body Length | 27 in (68.58 cm) |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 3 in (7.62 cm) |
| Length | 27 in (68.58 cm) |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 3 in (7.62 cm) |
| Overall Length | 27 in (68.58 cm) |
| Price Type | E |
| Rated Flow High Range | 1041.78 cfm (29.5 m³/min) |
| Rated Flow Low Range | 600.35 cfm (17 m³/min) |
| Rated Flow Mid Range | 1041.78 cfm (29.5 m³/min)[delete] |
| Standard Length | 27 to 28 in |
| Style | Style 6 |
Interchanges & Equivalent parts:
020563, 050187850028, 0823452, 11415207, 114667539, 215254001, 2152540011, 2191-M085208, 29323081, 31247HDM, 4204408, 50187850028, 501878528, 78295, 9575M085208, 957SM085208, DCM085208, DN M085208, DN M085208, DONM085208, Y0602300162, 823452, 020563, 215254001, DN M085208, DN M085208, 114667539, 501878528, 2191-M085208, 31247HDM, 29323081, 2152540011, DCM085208, Y0602300162, DONM085208, 0823452, 957SM085208, 9575M085208, 78295, 11415207, 050187850028, 4204408, 50187850028, 823452, 305605056, 784120014X1, 5XA601, T5XA601M, T5XB601M, 31247, 20563
