2 POINTS

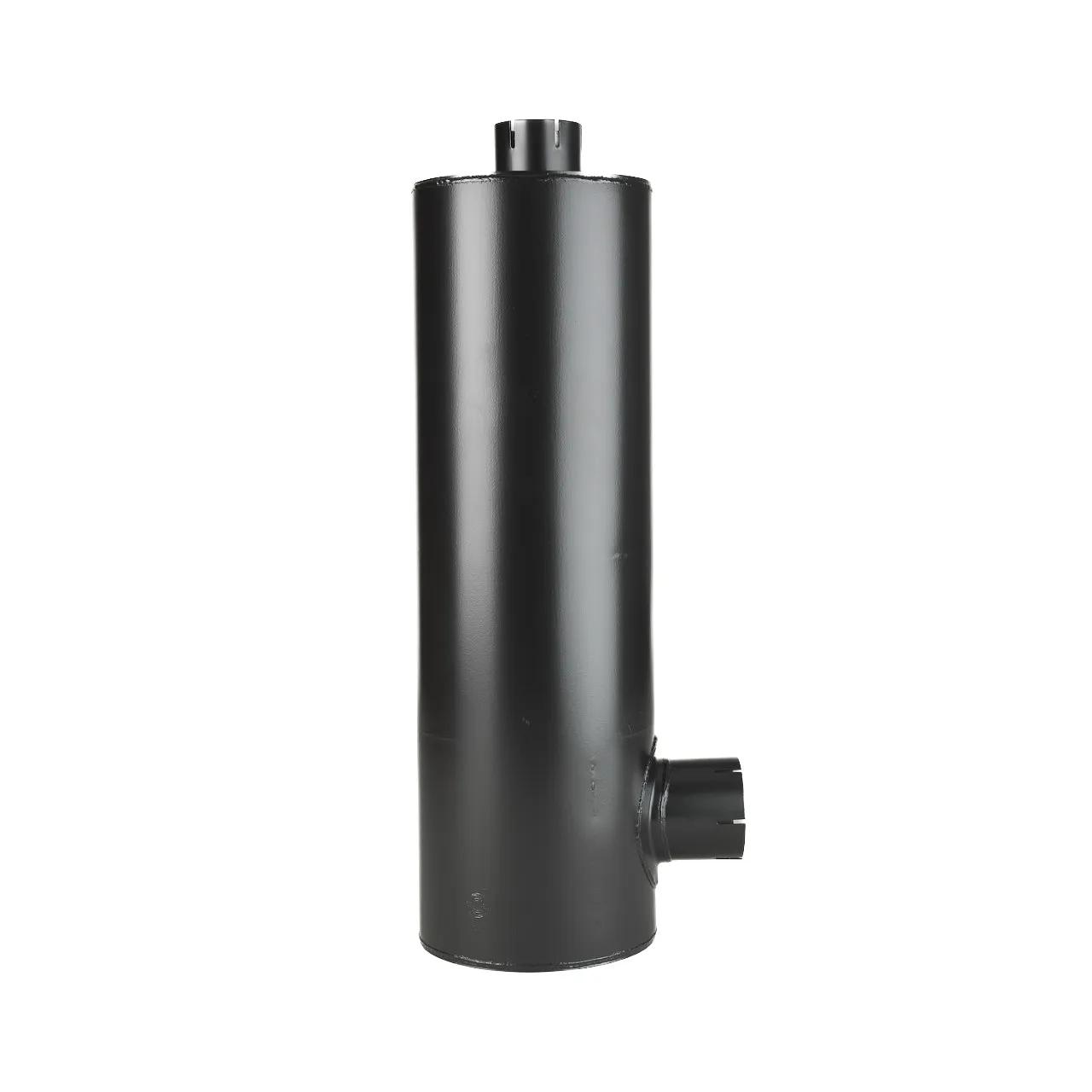

Muffler, Le: 27 in
#DONM085084
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 15 dBA |
| Attenuation High Range | 20 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 8-1/2 in |
| Body Length | 27 in |
| Inlet Clock Position | 3:00 |
| Inlet Diameter | 3-1/2 in |
| Length | 27 in |
| Outlet Clock Position | 6:00 |
| Outlet Diameter | 3 in |
| Overall Length | 29-1/2 in |
| Rated Flow High Range | 801.64 cfm |
| Rated Flow Low Range | 462.62 cfm |
| Length Range | 27 to 28 in |
| Style | Style 3 |
Interchanges & Equivalent parts:
| M085084 |
| 86192M |
| 114143800 |
| 85821055 |
| DCM085084 |
| 9575M085084 |
| 1503898 |
| HD3995 |
| 31584 |
| 35514629 |
| 44095 |
| 4160316 |
| 20183 |
| 3626 |
| 810295 |
| 044095 |
| 020183 |
| 00810295 |
| DNM085084 |
| DN M085084 |
| DN M085084 |
| 2191-M085084 |
| 31584HDM |
| 8708 |
| DONM085084 |
