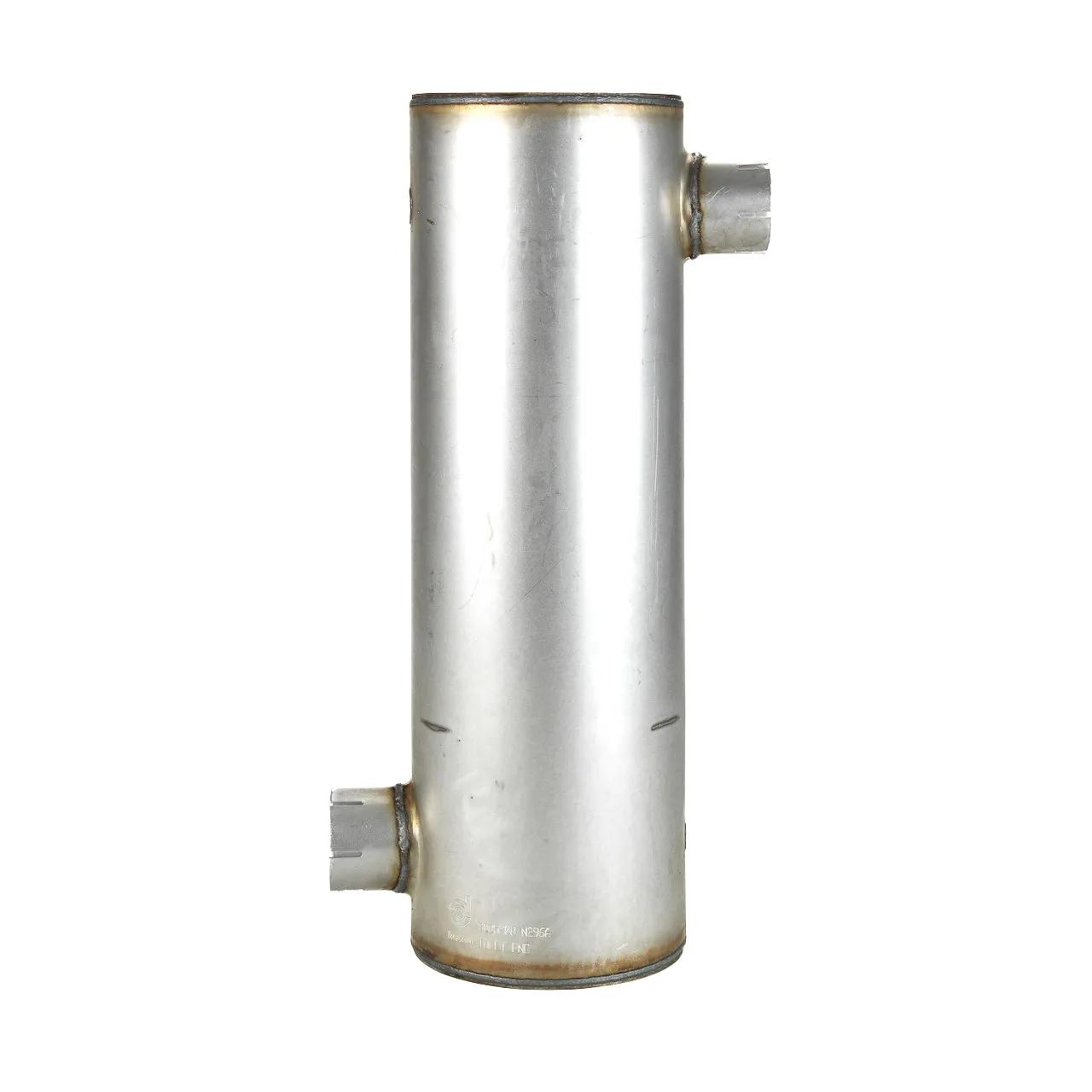

Muffler, Le: 27 in
#DONM085208
Product Overview
MUFFLER, ROUND STYLE 6
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 15 dBA |
| Attenuation High Range | 20 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 8-1/2 in (21.59 cm) |
| Body Length | 27 in (68.58 cm) |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 3 in (7.62 cm) |
| Length | 27 in (68.58 cm) |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 3 in (7.62 cm) |
| Overall Length | 27 in (68.58 cm) |
| Rated Flow High Range | 1041.78 cfm (29.5 m³/min) |
| Rated Flow Low Range | 600.35 cfm (17 m³/min) |
| Rated Flow Mid Range | 1041.78 cfm (29.5 m³/min)[delete] |
| Length Range | 27 to 28 in |
| Style | Style 6 |
Interchanges & Equivalent parts:
| 784120014X1 |
| 5XA601 |
| T5XA601M |
| T5XB601M |
| Y0602300162 |
| 823452 |
| 9575M085208 |
| 31247 |
| DCM085208 |
| 4204408 |
| 78295 |
| 20563 |
| 29323081 |
| 114667539 |
| 50187850028 |
| 501878528 |
| 215254001 |
| 2152540011 |
| 11415207 |
| DN M085208 |
| DN M085208 |
| 0823452 |
| 020563 |
| 050187850028 |
| 2191-M085208 |
| 31247HDM |
| 957SM085208 |
| DONM085208 |
| 305605056 |
| 22767 |
