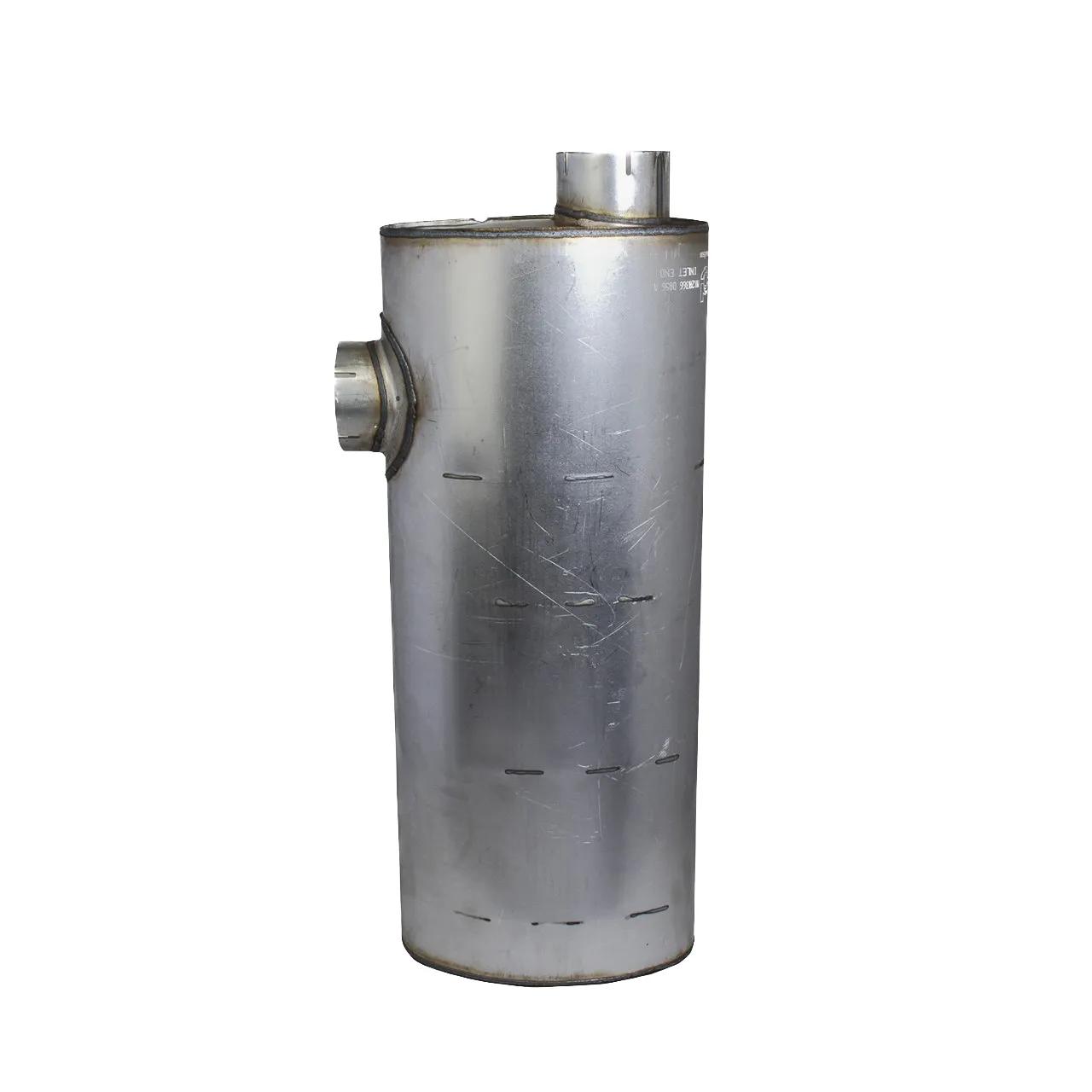

Muffler, Le: 3 ft
#DONM120366
Specifications
| Attenuation High Range | 20 dBA |
| Attenuation Low Range | 15 dBA |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 10 in (25.4 cm) |
| Body Diameter Max | 15 in (38.1 cm) |
| Body Length | 35-63/64 in (91.4 cm) |
| Inlet Clock Position | 3:00 |
| Inlet Diameter | 5 in (12.7 cm) |
| Length | 36 in (91.44 cm) |
| Outlet Clock Position | 9:00 |
| Outlet Diameter | 5 in (12.7 cm) |
| Overall Length | 39-1/4 in (99.7 cm) |
| Price Type | E |
| Rated Flow High Range | 2397.87 cfm (67.9 m³/min) |
| Rated Flow Low Range | 1384.33 cfm (39.2 m³/min) |
| Rated Flow Mid Range | 2397.87 cfm (67.9 m³/min)[delete] |
| Standard Length | 35 to 36 in |
| Style | Style 4 |
Interchanges & Equivalent parts:
86503M, 12322864, 190-9858, 2191-M120366, 31218, 31218HDM, 3698Q, 9575M120366, DCM120366, DN M120366, DN M120366, DONM120366, E0HT5225FA, E2HT5225AZB, FG 86503M, M0M120366, M4-5510X15, NFM86503M, W22337, 9575MOM120366, 9575MOM120366P, DNM120366, M45510X15, M503, MOM120366, 3698, W22337, DN M120366, E0HT5225FA, E2HT5225AZB, 9575M120366, 190-9858, 2191-M120366, 12322864, 31218, DN M120366, M4-5510X15, M0M120366, FG 86503M, DONM120366, DCM120366, 31218HDM, NFM86503M, 3698Q, 86503M, 9575MOM120366, DNM120366, M45510X15, 9575MOM120366P, M503, MOM120366, 3698, D140159, 22337
