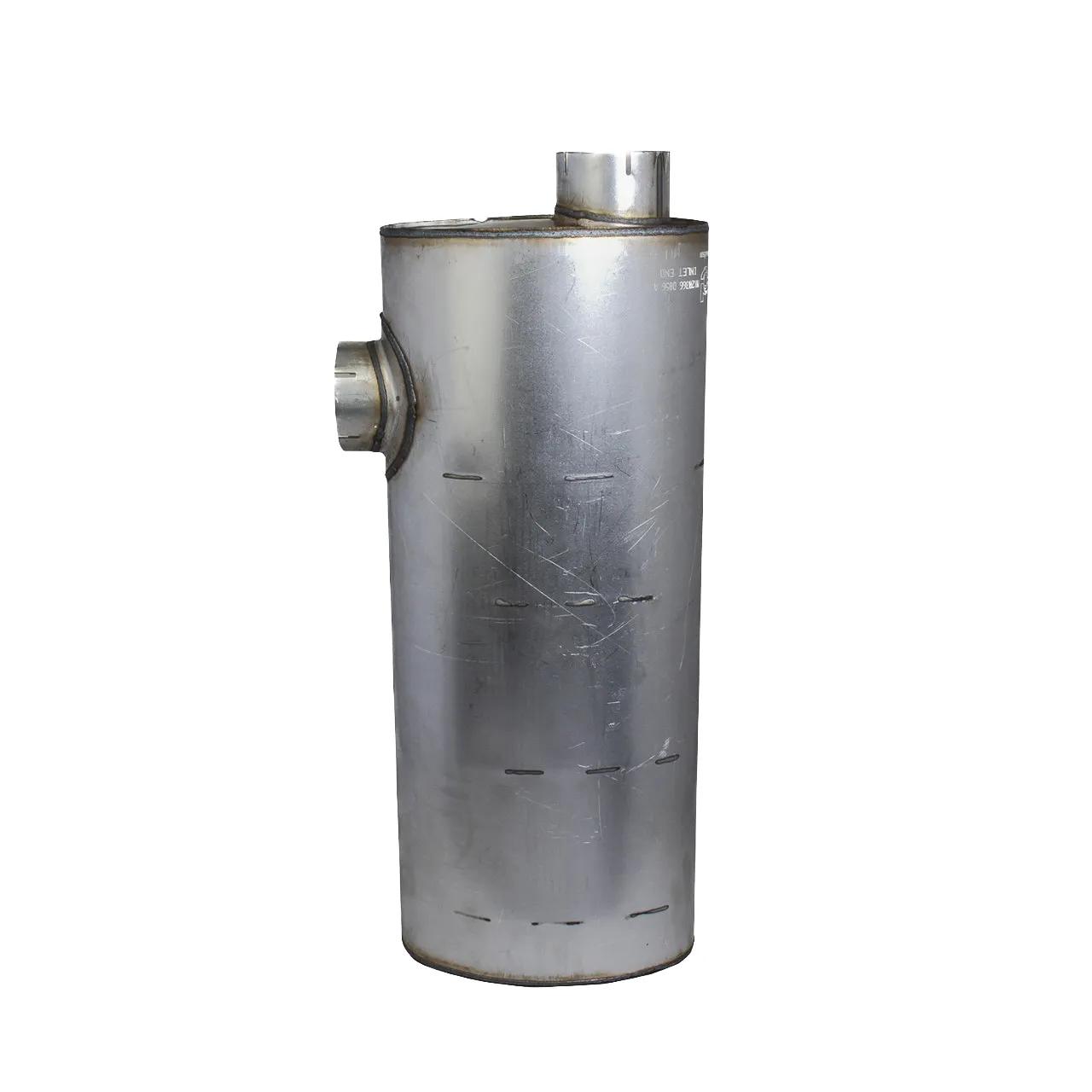

Muffler, Le: 3 ft
#DONM120366
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 15 dBA |
| Attenuation High Range | 20 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 10 in |
| Body Diameter Max | 15 in |
| Body Length | 35-63/64 in |
| Inlet Clock Position | 3:00 |
| Inlet Diameter | 5 in |
| Length | 36 in |
| Outlet Clock Position | 9:00 |
| Outlet Diameter | 5 in |
| Overall Length | 39-1/4 in |
| Rated Flow High Range | 2397.87 cfm |
| Rated Flow Low Range | 1384.33 cfm |
| Length Range | 35 to 36 in |
| Style | Style 4 |
Interchanges & Equivalent parts:
| 12322864 |
| 190-9858 |
| 2191-M120366 |
| 31218 |
| 31218HDM |
| 3698 |
| 3698Q |
| 86503M |
| 9575M120366 |
| 9575MOM120366 |
| 9575MOM120366P |
| DCM120366 |
| DNM120366 |
| DONM120366 |
| E0HT5225FA |
| E2HT5225AZB |
| M0M120366 |
| M4-5510X15 |
| M45510X15 |
| M503 |
| MOM120366 |
| NFM86503M |
| W22337 |
| DN M120366 |
| DN M120366 |
| FG 86503M |
| 22337 |
