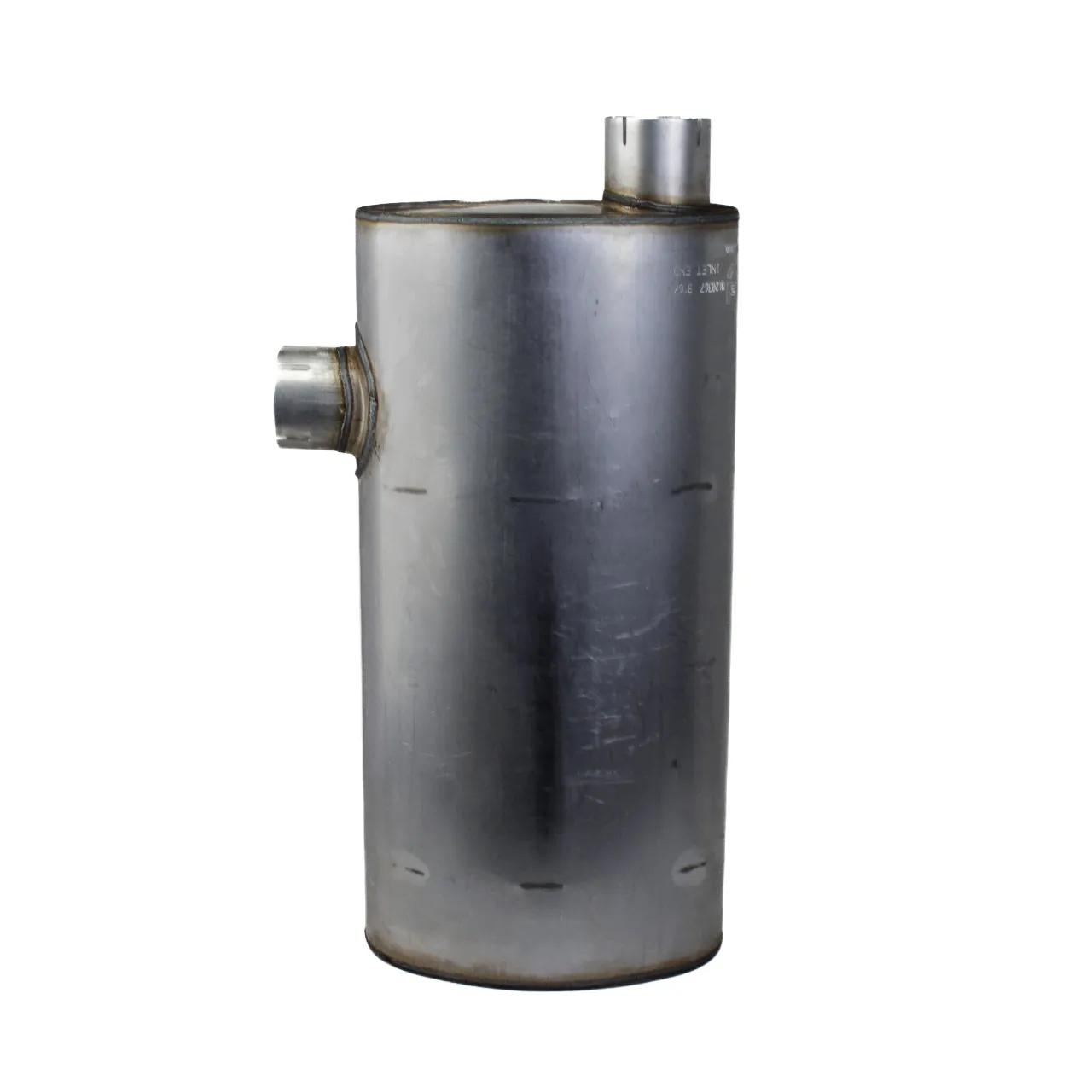

Muffler, Le: 30-3/8 in
#DONM120367
Specifications
| Attenuation High Range | 20 dBA |
| Attenuation Low Range | 15 dBA |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 10 in (25.4 cm) |
| Body Diameter Max | 15 in (38.1 cm) |
| Body Length | 30-25/64 in (77.2 cm) |
| Diameter | 15 in (38.1 cm) |
| Diameter Range | 4 to 5 in |
| Inlet Clock Position | 3:00 |
| Inlet Diameter | 4 in (10.16 cm) |
| Length | 30-3/8 in (77.15 cm) |
| Outlet Clock Position | 9:00 |
| Outlet Diameter | 4 in (10.16 cm) |
| Overall Length | 33-7/8 in (86.03 cm) |
| Price Type | E |
| Rated Flow High Range | 1706 cfm (48,31 m³/min) |
| Rated Flow Low Range | 986 cfm (27,9 m³/min) |
| Rated Flow Mid Range | 1706 cfm (48,31 m³/min)[delete] |
| Standard Length | 30 to 31 in |
| Style | Style 4 |
Interchanges & Equivalent parts:
22555, 12322865, 1909451, 2191-M120367, 86220M, 86608M, 9575M120367, C1591, DCM120367, DN M120367, DN M120367, DONM120367, M-220, M0M120367, M4-4410X15, MOM120367, M120367, 9575MOM120367, 9575MOM120367P, DNM120367, M44410X15, 3921, 86608M, MOM120367, DONM120367, M0M120367, 2191-M120367, 12322865, M4-4410X15, DN M120367, DN M120367, 1909451, 9575M120367, C1591, M-220, 86220M, DCM120367, 22555, DNM120367, 9575MOM120367, 9575MOM120367P, M44410X15, M120367, 3921, 31367, 22665
