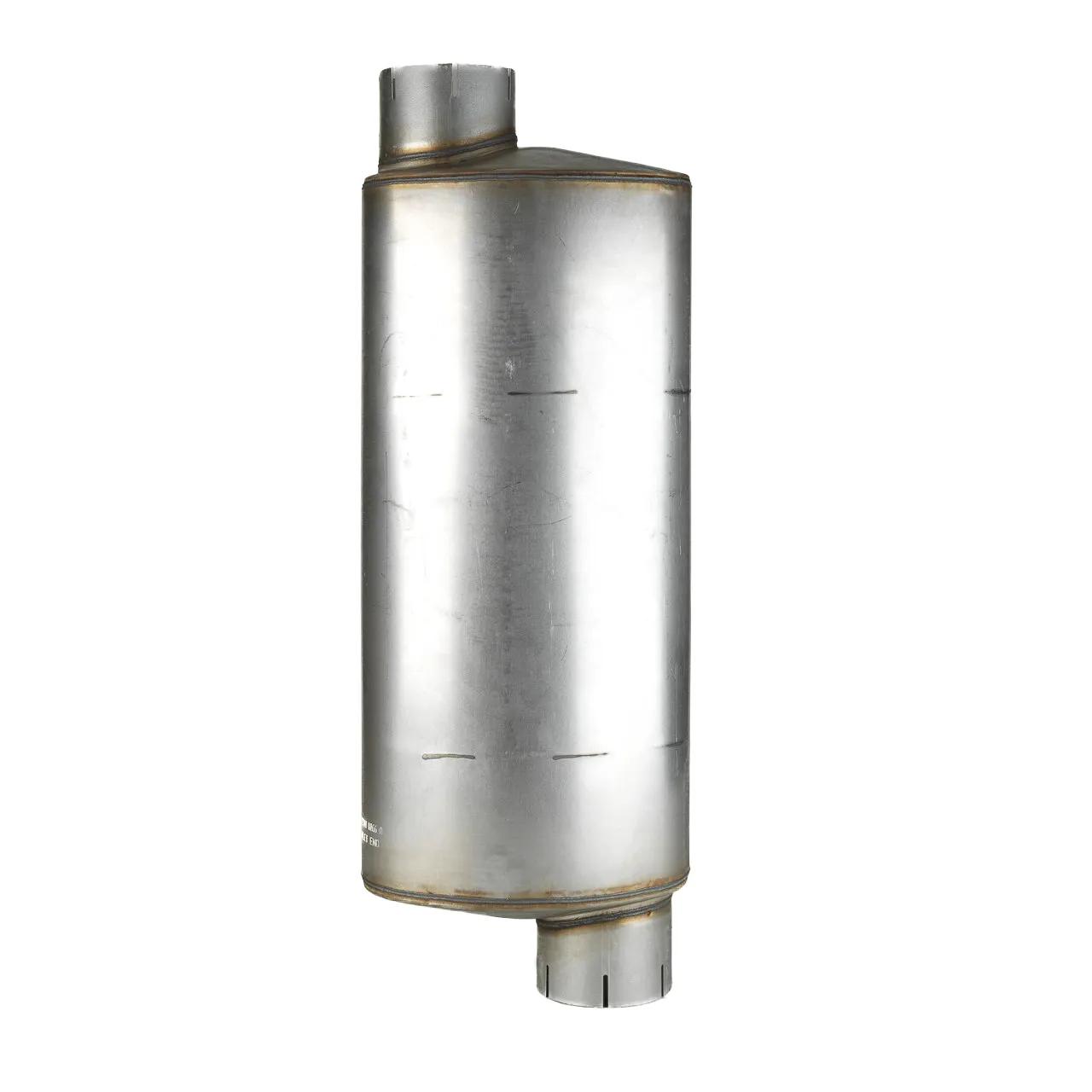

Muffler, Le: 31-3/4 in
#DONM122300
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 10 dBA |
| Attenuation High Range | 15 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 10 in (25.4 cm) |
| Body Diameter Max | 15 in (38.1 cm) |
| Body Length | 31-47/64 in (80.61 cm) |
| Inlet Clock Position | 3:00 |
| Inlet Diameter | 6 in (15.24 cm) |
| Length | 31-3/4 in (80.65 cm) |
| Outlet Clock Position | 9:00 |
| Outlet Diameter | 6 in (15.24 cm) |
| Overall Length | 42-1/2 in (107.95 cm) |
| Rated Flow High Range | 3736.29 cfm (105.8 m³/min) |
| Rated Flow Low Range | 2157.73 cfm (61.1 m³/min) |
| Rated Flow Mid Range | 3736.29 cfm (105.8 m³/min)[delete] |
| Length Range | 31 to 32 in |
| Style | Style 2 |
Interchanges & Equivalent parts:
| M180 |
| 86180M |
| 11197 |
| 15913 |
| 1901348 |
| 3646 |
| 3646Q |
| 3010305004 |
| 5540175500 |
| 4003012000 |
| 43012 |
| 1487001 |
| 9283113008 |
| E12651880 |
| DNM122300 |
| 31197 |
| 22139455 |
| 22139544 |
| 22139555 |
| 911753 |
| DCM122300 |
| GD202SPT063 |
| 29323095 |
| 44M122300 |
| 225039 |
| 1290055 |
| 3913 |
| 22907 |
| 001487001 |
| DN M122300 |
| DN M122300 |
| FG 86180M |
| 01290055 |
| 004003012000 |
| 1000200014 |
| 202SPT063 |
| 2191-M122300 |
| 31197HDM |
| DONM122300 |
| M-180 |
| NFM86180M |
| W22907 |
