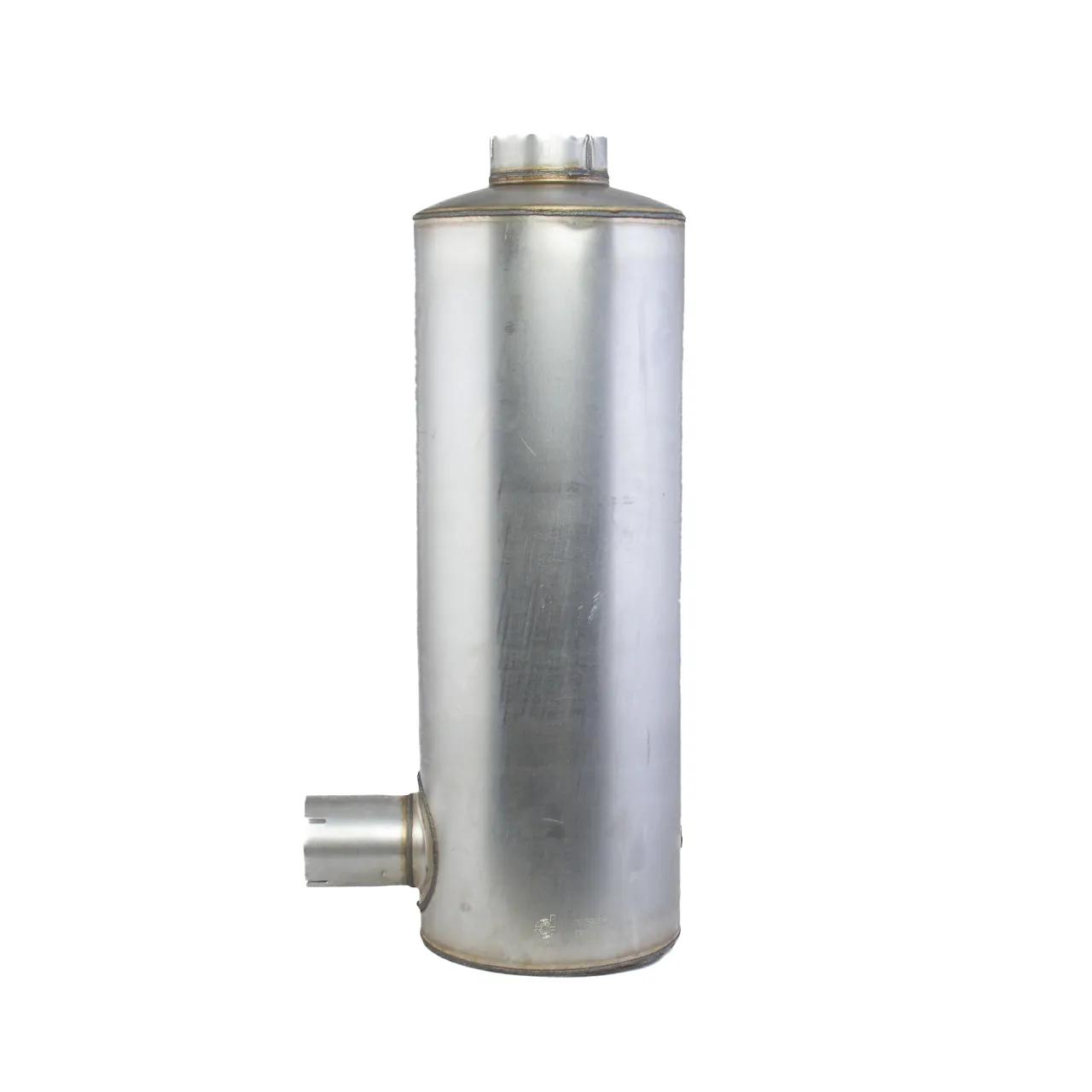

Muffler, Le: 32-1/8 in
#DONM120598
Product Overview
MUFFLER, ROUND STYLE 3
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 12 dBA |
| Attenuation High Range | 18 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 12 in (30.48 cm) |
| Body Length | 32-1/8 in (81.6 cm) |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 4 in (10.16 cm) |
| Length | 32-1/8 in (81.61 cm) |
| Outlet Diameter | 5 in (12.7 cm) |
| Overall Length | 35-1/2 in (90.17 cm) |
| Rated Flow High Range | 2263.67 cfm (64.1 m³/min) |
| Rated Flow Low Range | 1306.64 cfm (37 m³/min) |
| Rated Flow Mid Range | 2263.67 cfm (64.1 m³/min)[delete] |
| Length Range | 32 to 33 in |
| Style | Style 3 |
Interchanges & Equivalent parts:
| DNM120598 |
| DN M120598 |
| DN M120598 |
| 01805756 |
| 2191-M120598 |
| DCM120598 |
| DONM120598 |
