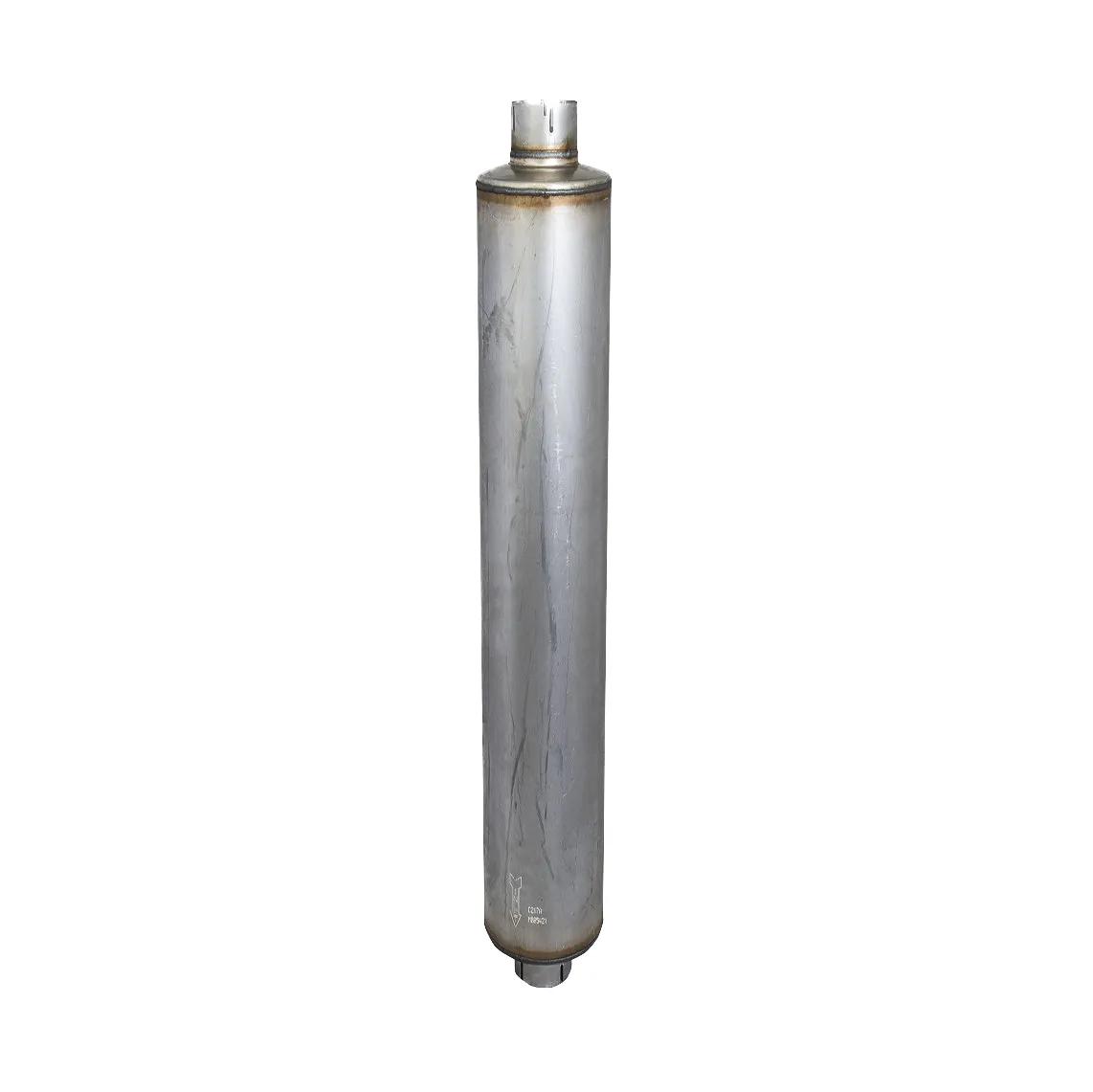

Muffler, Le: 34-3/8 in
#DONM085421
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 12 dBA |
| Attenuation High Range | 18 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 8-1/2 in (21.59 cm) |
| Body Length | 34-3/8 in (87.32 cm) |
| Inlet Diameter | 4 in (10.16 cm) |
| Length | 34-3/8 in (87.33 cm) |
| Outlet Diameter | 4 in (10.16 cm) |
| Overall Length | 40 in (101.6 cm) |
| Rated Flow High Range | 2097.69 cfm (59.4 m³/min) |
| Rated Flow Low Range | 1211.29 cfm (34.3 m³/min) |
| Rated Flow Mid Range | 2097.69 cfm (59.4 m³/min)[delete] |
| Length Range | 34 to 35 in |
| Style | Style 1 |
Interchanges & Equivalent parts:
| 11466693744 |
| 3653 |
| 3892 |
| DN M085421 |
| 2191-M085421 |
| DCM085421 |
| DONM085421 |
| M-127 |
| 21838 |
