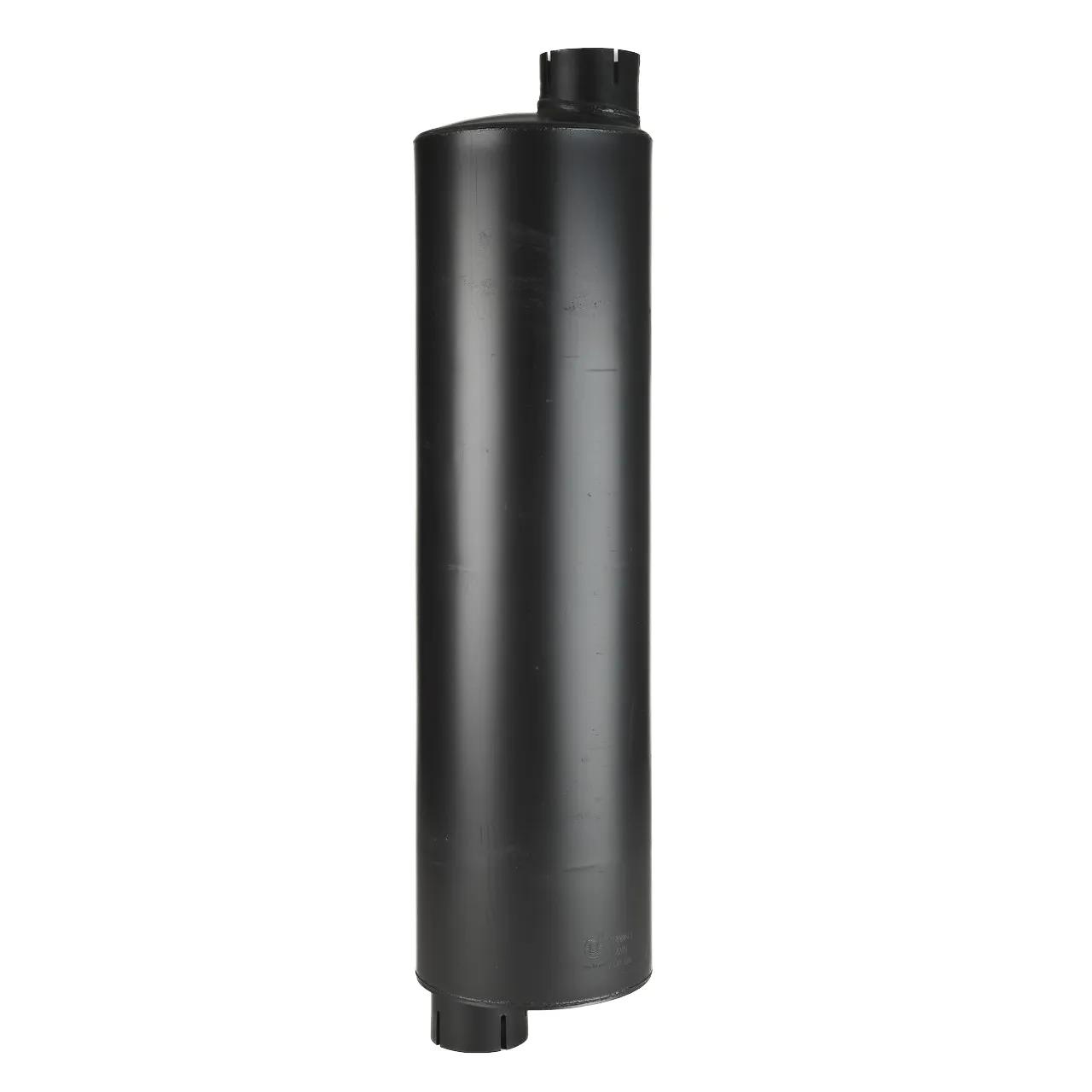

Muffler, Le: 35-3/8 in
Features & Benefits
- MUFFLER, ROUND STYLE 2
Specifications
| Attenuation High Range | 20 dBA |
| Attenuation Low Range | 15 dBA |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 10 in (25.4 cm) |
| Body Length | 35-25/64 in (89.9 cm) |
| Diameter | 10-3/32 in (25.64 cm) |
| Diameter Range | 4 to 5 in |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 4 in (10.16 cm) |
| Length | 35-3/8 in (89,86 cm) |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 4 in (10.16 cm) |
| Overall Length | 41-3/4 in (106.05 cm) |
| Price Type | E |
| Rated Flow High Range | 1703 cfm (48,23 m³/min) |
| Rated Flow Low Range | 982 cfm (27,8 m³/min) |
| Rated Flow Mid Range | 1703 cfm (48,23 m³/min)[delete] |
| Standard Length | 35 to 36 in |
| Style | Style 2 |
Interchanges & Equivalent parts:
00810322, 100043, 0000136929, 051368, 10-0010, 11877, 120167A, 153612171, 16193981, 1619398100, 16193984, 2191-M100043, 230010066, 25069983, 2ME377, 31043HDM, 31H0104, 33170099, 3590831, 3612171, 393997, 420V4383, 501170, 5300248006, 53501019, 5369600, 549471C1, 65297S1, 73061486, 7510057, 76049046, 8355910, 86118M, 86662M, 86883067, DCM100043, DN M100043, DONM100043, HD4170, MTM100043, N0901008H, N090100BH, M100043, 136929, 51368, 836339052, 3911, 51368, 836339052, 136929, DONM100043, 5369600, 501170, 86118M, 16193984, 3590831, MTM100043, 53501019, 8355910, 76049046, 16193981, 420V4383, DN M100043, 00810322, 2191-M100043, 3612171, 393997, 230010066, 25069983, 31H0104, 31043HDM, 86662M, 120167A, 73061486, 11877, DCM100043, 0000136929, 7510057, 5300248006, HD4170, 10-0010, 2ME377, 153612171, 549471C1, 65297S1, 051368, 1619398100, N0901008H, N090100BH, 100043, 86883067, 33170099, M100043, 3911, 10918, A3345404, 1075A84440, 31043, 810322
