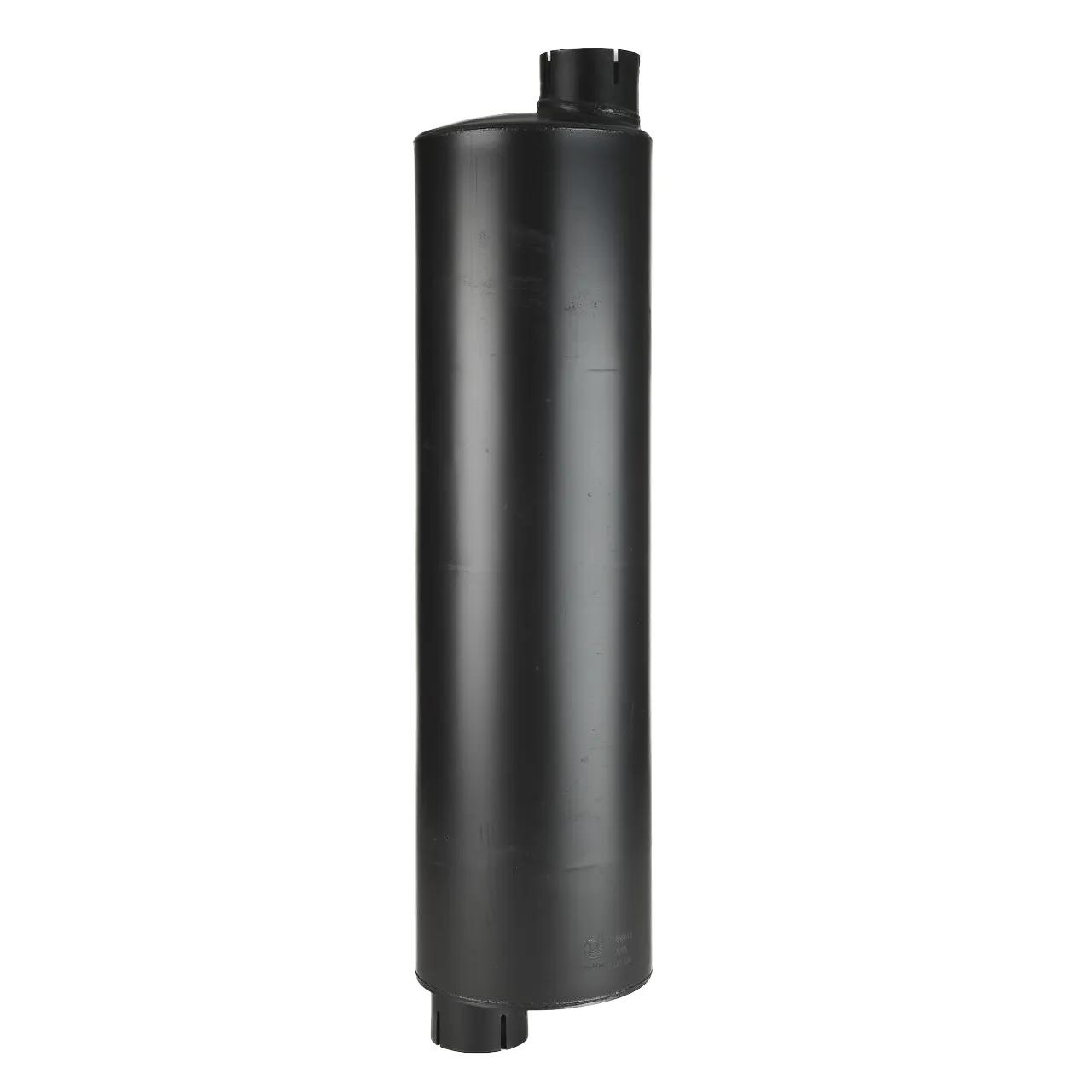

Muffler, Le: 35-3/8 in
#DONM100043
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 15 dBA |
| Attenuation High Range | 20 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 10 in |
| Body Length | 35-25/64 in |
| Diameter | 10-3/32 in |
| Diameter Range | 4 to 5 in |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 4 in |
| Length | 35-3/8 in |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 4 in |
| Overall Length | 41-3/4 in |
| Rated Flow High Range | 1703 cfm |
| Rated Flow Low Range | 982 cfm |
| Length Range | 35 to 36 in |
| Style | Style 2 |
Interchanges & Equivalent parts:
| M100043 |
| 0000136929 |
| 00810322 |
| 051368 |
| 10-0010 |
| 100043 |
| 11877 |
| 120167A |
| 136929 |
| 153612171 |
| 16193981 |
| 1619398100 |
| 16193984 |
| 2191-M100043 |
| 230010066 |
| 25069983 |
| 2ME377 |
| 31043HDM |
| 31H0104 |
| 33170099 |
| 3590831 |
| 3612171 |
| 3911 |
| 393997 |
| 420V4383 |
| 501170 |
| 51368 |
| 5300248006 |
| 53501019 |
| 5369600 |
| 549471C1 |
| 65297S1 |
| 73061486 |
| 7510057 |
| 76049046 |
| 8355910 |
| 836339052 |
| 86118M |
| 86662M |
| 86883067 |
| DCM100043 |
| DONM100043 |
| HD4170 |
| MTM100043 |
| N0901008H |
| N090100BH |
| DN M100043 |
