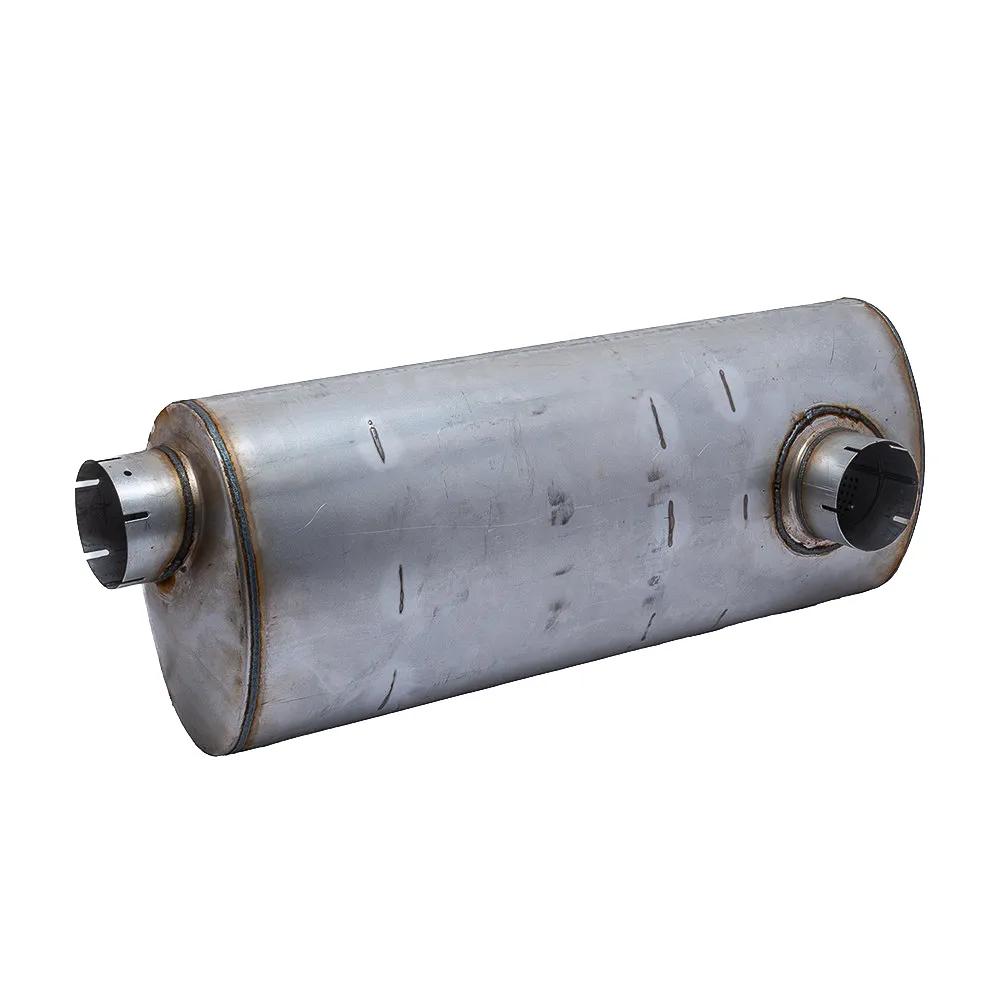

Muffler, Le: 35-7/8 in
#DONM120235
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Plage basse d'atténuation | 15 dBA |
| Gamme haute d'atténuation | 20 dBA |
| Gamme haute de contre-pression (métrique) | 76 mm HG |
| Gamme haute de contre-pression | 2,99 po HG |
| Plage basse de contre-pression | 0,98 po HG |
| Contre-pression milieu de gamme | 2,01 po HG |
| Contre-pression basse gamme (métrique) | 25 mm HG |
| Contre-pression milieu de gamme (métrique) | 51 mm HG |
| Diamètre du corps | 10 po (25,4 cm) |
| Diamètre maximal du corps | 15 po (38,1 cm) |
| Longueur du corps | 35-7/8 po (91,13 cm) |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 5 in (12.7 cm) |
| Length | 35-7/8 po (91,14 cm) |
| Outlet Clock Position | 9:00 |
| Outlet Diameter | 5 po (12,7 cm) |
| Overall Length | 39-7/8 po (101,29 cm) |
| Rated Flow High Range | 2097,69 pi³/min (59,4 m³/min) |
| Rated Flow Low Range | 1211,29 pi³/min (34,3 m³/min) |
| Rated Flow Mid Range | 2097.69 cfm (59.4 m³/min)[delete] |
| Length Range | 35 à 36 po |
| Style | Style 3 |
Interchanges & Equivalent parts:
| 3645 |
| 86194M |
| 15010 |
| 15909 |
| 15909Q |
| 1901351 |
| 123684 |
| AG123684 |
| 3645Q |
| 27Q288D1 |
| 3227Q3 |
| 21094 |
| 21099 |
| 10000881 |
| CDD000013 |
| M120234 |
| 9575M120235 |
| DNM120235 |
| 5369750 |
| 7642000068 |
| 764200068 |
| 31191 |
| A31191 |
| 22456172 |
| DCM120235 |
| 170797 |
| 32564204391 |
| 3256420V4391 |
| 4204391 |
| 420V4391 |
| 536975 |
| 33170508 |
| 1736900 |
| 1572191 |
| R023180137 |
| 658184 |
| 410354 |
| 3933 |
| 9036810011 |
| 22917 |
| DN M120235 |
| DN M120235 |
| 2191-M120235 |
| 31191HDM |
| DONM120235 |
