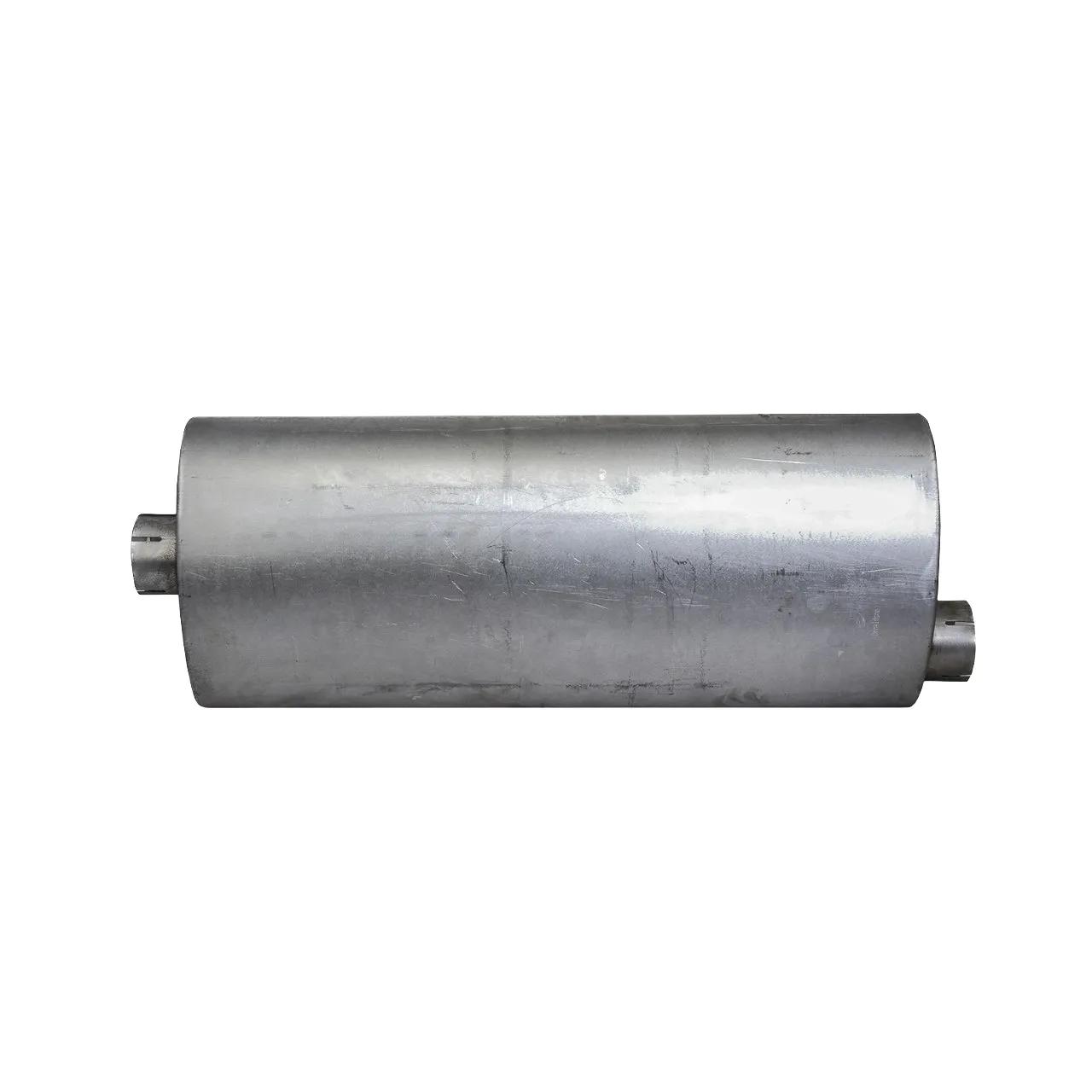

Muffler, Le: 36-1/8 in
#DONM120197
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 22 dBA |
| Attenuation High Range | 28 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 10-5/16 in |
| Body Diameter Max | 15-5/16 in |
| Body Length | 35-63/64 in |
| Diameter | 15-5/16 in |
| Diameter Range | 4 to 5 in |
| Inlet Clock Position | 3:00 |
| Inlet Diameter | 4 in |
| Length | 36-1/8 in |
| Outlet Clock Position | 9:00 |
| Outlet Diameter | 4 in |
| Overall Length | 42 in |
| Rated Flow High Range | 1385 cfm |
| Rated Flow Low Range | 799 cfm |
| Length Range | 36 to 37 in |
| Style | Style 2 |
| Type | Wrapped |
Interchanges & Equivalent parts:
| M120197 |
| 00810337 |
| 00810346 |
| 027076535 |
| 15904W |
| 2100083 |
| 21072 |
| 21083 |
| 2191-M120197 |
| 230010051 |
| 2403077 |
| 27076535 |
| 31204 |
| 31204HDM |
| 32H0511 |
| 32H511 |
| 3590846 |
| 3612162 |
| 3675 |
| 3675Q |
| 4211754M91 |
| 470263M91 |
| 56774953 |
| 717202 |
| 85103138 |
| 86203M |
| 862265 |
| 86752M |
| 8A5810 |
| D7HT5225BNA |
| DCM120197 |
| DNM120197 |
| DONM120197 |
| HD9830 |
| VP20096 |
| ZH003 |
| DN M120197 |
| DN M120197 |
| 22833 |
