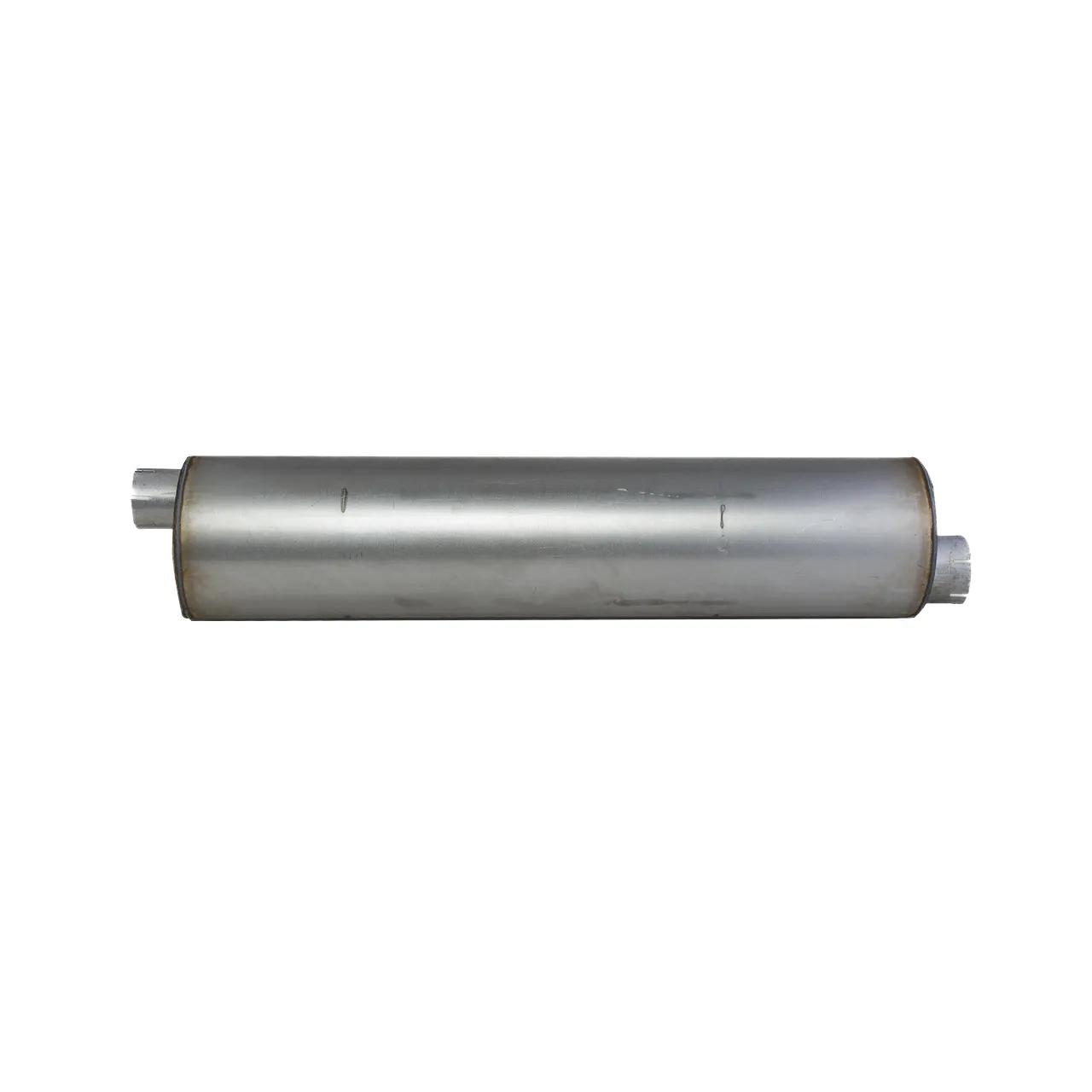

Muffler, Le: 37-1/4 in
#DONM085008
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 15 dBA |
| Attenuation High Range | 20 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 8-1/2 in |
| Body Length | 37-49/64 in |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 3-1/2 in |
| Length | 37-1/4 in |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 3 in |
| Overall Length | 43 in |
| Rated Flow High Range | 1123.01 cfm |
| Rated Flow Low Range | 649.79 cfm |
| Length Range | 37 to 38 in |
| Style | Style 2 |
Interchanges & Equivalent parts:
| M085008 |
| 00561802 |
| 00810298 |
| 039263 |
| 053117778 |
| 0R023180037 |
| 0RO23180037 |
| 101085302A |
| 10175576 |
| 125625 |
| 141674R91 |
| 161WA0601 |
| 1744959 |
| 18154F |
| 18154FX |
| 1901343 |
| 1902493 |
| 1909207 |
| 199386R91 |
| 2089167 |
| 208916700 |
| 21038 |
| 212361 |
| 2191-M085008 |
| 2403033 |
| 244002R91 |
| 2672157 |
| 27Z260 |
| 2955550 |
| 2974081 |
| 2980508392 |
| 298508392 |
| 31018 |
| 31018HDM |
| 3662 |
| 3662Q |
| 3PS4174 |
| 514643C1 |
| 520376 |
| 53117778 |
| 549468C1 |
| 561802 |
| 59534321 |
| 7018 |
| 76025334 |
| 85131016 |
| 85903 |
| 86134M |
| 94307 |
| 964L1 |
| 9XD354 |
| A2318037 |
| C43328 |
| DCM085008 |
| DNM085008 |
| DONM085008 |
| E208 |
| E2355 |
| E650057 |
| HD3530 |
| HD357 |
| HD358 |
| LL84771 |
| M235385 |
| ORO23180037 |
| OV35032 |
| OV352 |
| R02318037 |
| S39263 |
| TD019 |
| TD19 |
| XD350 |
| XD355 |
| DN M085008 |
| DN M085008 |
| 39263 |
