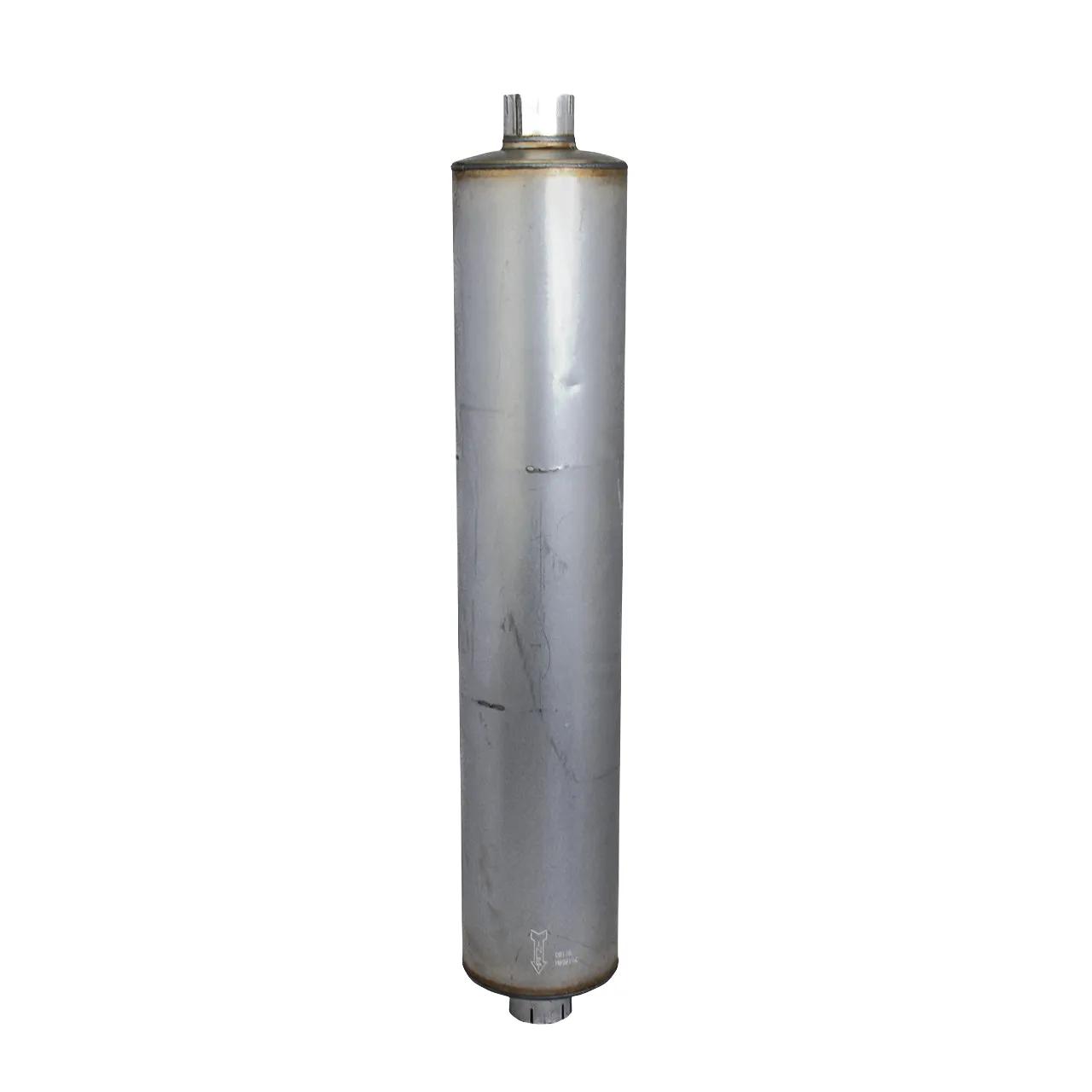

Muffler, Le: 44-1/2 in
#DONM090146
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 18 dBA |
| Attenuation High Range | 25 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 9-1/64 in (22.91 cm) |
| Body Length | 44-31/64 in (112.99 cm) |
| Inlet Diameter | 3-1/2 in (8.89 cm) |
| Length | 44-1/2 in (113.03 cm) |
| Outlet Diameter | 3-1/2 in (8.89 cm) |
| Overall Length | 51 in (129.54 cm) |
| Rated Flow High Range | 102.41 cfm (2.9 m³/min) |
| Rated Flow Low Range | 579.16 cfm (16.4 m³/min) |
| Rated Flow Mid Range | 102.41 cfm (2.9 m³/min)[delete] |
| Length Range | 40 to 50 in |
| Style | Style 1 |
Interchanges & Equivalent parts:
| M090146 |
| 3679 |
| 87350113 |
| 87350113Q |
| 87350345 |
| 86113M |
| 86216M |
| M353590 |
| 90915 |
| 9XD358 |
| 1909341 |
| 1909351 |
| 1909376 |
| 3679Q |
| 846100359 |
| E108 |
| 12A3569 |
| 9575M090146 |
| D3HA5225AAA |
| D3HZ5255A |
| D4HA5225EA |
| D4HZ5230C |
| D3HZ5230D |
| DNM090146 |
| 10175624 |
| 76420000036 |
| 7642000610 |
| 31025 |
| 35304310 |
| 366303C1 |
| 429619C1 |
| 436198C1 |
| 447124C1 |
| 447125C1 |
| DCM090146 |
| 4068782 |
| ZH209 |
| 57200B |
| 57200BX |
| LL847181 |
| 2403052 |
| 534948 |
| TAC427 |
| 810313 |
| 22844 |
| 00810313 |
| 1403748 |
| 1522201 |
| 31025HDM |
| DN M090146 |
| DN M090146 |
| 2191-M090146 |
| DONM090146 |
| V9-0005 |
