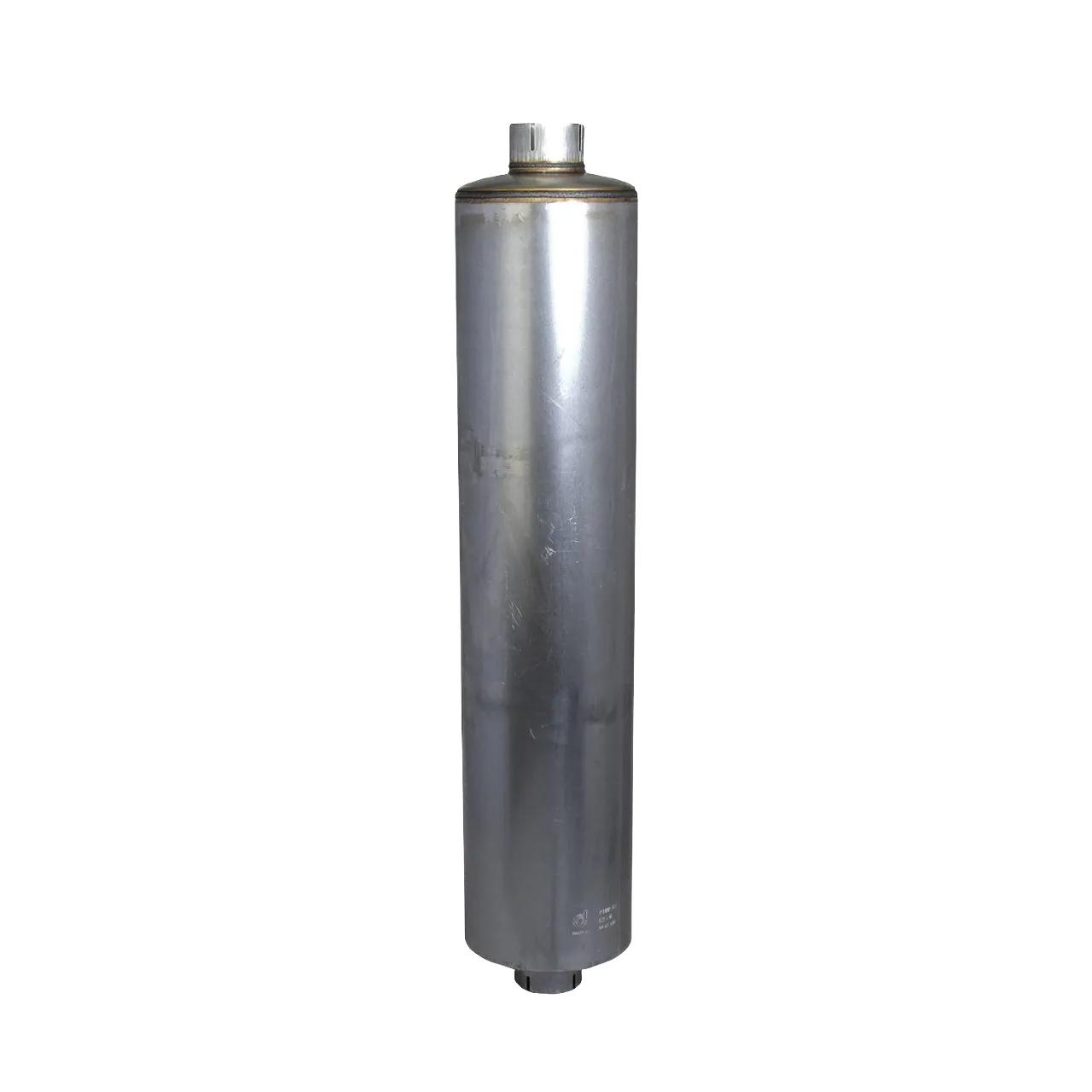

Muffler, Le: 44-1/2 in
#DONM100464
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 25 dBA |
| Attenuation High Range | 35 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 10-5/16 in (26.2 cm) |
| Body Length | 44-31/64 in (112.99 cm) |
| Inlet Diameter | 4 in (10.16 cm) |
| Length | 44-1/2 in (113.03 cm) |
| Outlet Diameter | 4 in (10.16 cm) |
| Overall Length | 51 in (129.54 cm) |
| Rated Flow High Range | 1419.65 cfm (40.2 m³/min) |
| Rated Flow Low Range | 819.3 cfm (23.2 m³/min) |
| Rated Flow Mid Range | 1419.65 cfm (40.2 m³/min)[delete] |
| Length Range | 40 to 50 in |
| Style | Style 1 |
| Type | Wrapped |
Interchanges & Equivalent parts:
| 86111M |
| 86152M |
| 86215M |
| DWM4410 |
| 10908 |
| 1909336 |
| 1909350 |
| 1909869 |
| 1909870 |
| 12322848 |
| 3665 |
| 3671 |
| 3673 |
| LG77625 |
| 28R15 |
| 2200815613 |
| 535671 |
| 541362 |
| 11872 |
| 11873 |
| 3640908 |
| 3820392 |
| 6003255 |
| 21057 |
| 21067 |
| DCM100464 |
| WTM100104 |
| WZM100464 |
| 992L1 |
| 992L13 |
| 73331 |
| 12A3513 |
| 38A1007 |
| 8A6256 |
| 8A6256A |
| 9575M100464 |
| 9575WZM100464P |
| C1TT5230BD |
| D5HA5225HA |
| D5HZ5230G |
| D6HS5230AA |
| D7HT5225AJA |
| D8HS5225CA |
| D8HZ5230AE |
| D9HS5225JA |
| E0HT5225EB |
| E2HT5225BHA |
| E3HT5225RA |
| E5HZ5230B |
| A0410561 |
| A04105610 |
| A04105611 |
| A0410618 |
| A04106181 |
| A04109610 |
| A04114470 |
| A0411447000 |
| A04114471 |
| A04116941 |
| DNM100464 |
| 85403160 |
| 7642000020 |
| 7642000045 |
| 7642000051 |
| 9642100072 |
| 31148 |
| 31149 |
| 431256C1 |
| 431792C1 |
| 434836C1 |
| 442926C1 |
| 442937C1 |
| 454305C91 |
| 454308R91 |
| 467364C1 |
| 499495C1 |
| 523719C1 |
| 549483C1 |
| 68010 |
| 875390 |
| 125666 |
| 4204375 |
| 4204376 |
| 420V4375 |
| 420V4376 |
| 420V4386 |
| 846100279 |
| 78254 |
| 1ME19301P8 |
| 1ME19301P9 |
| 2191WZM100464 |
| 2ME29301P12 |
| 2ME29301P3 |
| 2ME29301P5 |
| 2ME371 |
| 2ME373 |
| 2ME376 |
| 4073737 |
| ZH201 |
| 27Q206 |
| A1204214 |
| 18410 |
| 5430119091 |
| 2980518592 |
| 2403054 |
| 132038 |
| 230010 |
