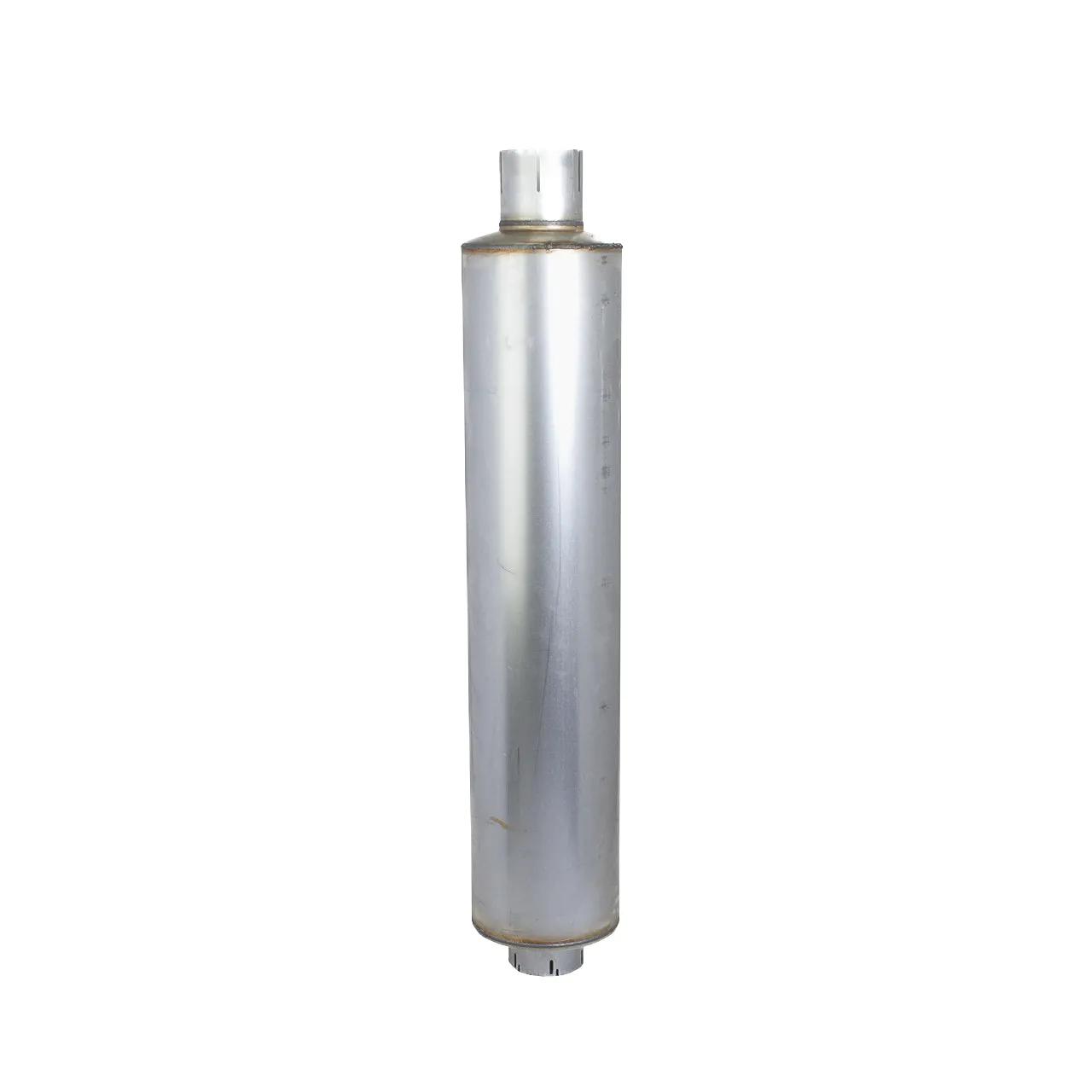

Muffler, Le: 44-1/4 in

#DONM101263

Product Overview

Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.

Products and technology designed to consistently meet required specifications – and your expectations.

Attenuation Low Range	16 dBA
Attenuation High Range	23 dBA
Back Pressure High-Range (Metric)	76 mm HG
Back Pressure High Range	2.99 in HG
Back Pressure Low Range	0.98 in HG
Back Pressure Mid Range	2.01 in HG
Back Pressure Low-Range (Metric)	25 mm HG
Back Pressure Mid-Range (Metric)	51 mm HG
Body Diameter	10 in
Body Length	44-1/4 in
Diameter	10-1/16 in
Diameter Range	5 to 6 in
Inlet Diameter	5 in
Length	44-1/4 in
Outlet Diameter	5 in
Overall Length	53 in
Rated Flow High Range	2529 cfm
Rated Flow Low Range	1565 cfm
Length Range	40 to 50 in
Style	Style 1
