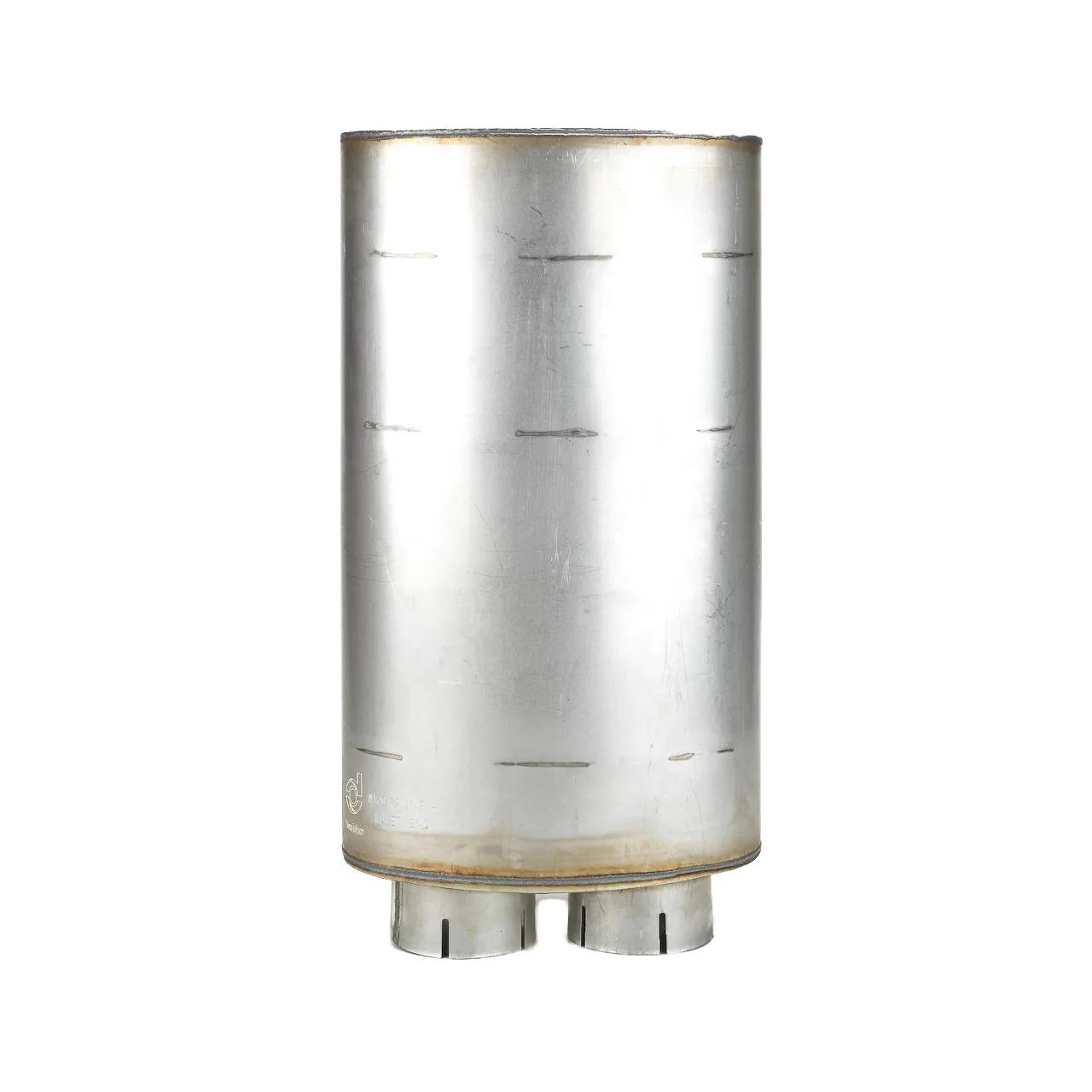

Muffler, OD: 10 in, Le: 25 in
#DONM120176
Specifications
| Attenuation High Range | 20 dBA |
| Attenuation Low Range | 15 dBA |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 10 in (25.4 cm) |
| Body Diameter Max | 15 in (38.1 cm) |
| Body Length | 25-63/64 in (66 cm) |
| Color | Aluminized |
| Height | 10 in (25.4 cm) |
| Inlet Clock Position | 3:00 |
| Inlet Diameter | 5 in (12.7 cm) |
| Inlet Quantity | 1 |
| Inlet Type | Pipe Connection |
| Length | 25 in (63.5 cm) |
| Material | Steel |
| Outlet Clock Position | 9:00 |
| Outlet Diameter | 5 in (12.7 cm) |
| Outlet Quantity | 1 |
| Outlet Type | Pipe Connection |
| Overall Length | 29-3/8 in (74.62 cm) |
| Price Type | E |
| Rated Flow High Range | 2044.72 cfm (57.9 m³/min) |
| Rated Flow Low Range | 1179.51 cfm (33.4 m³/min) |
| Rated Flow Mid Range | 2044.72 cfm (57.9 m³/min)[delete] |
| Reversible | No |
| Shape | Oval |
| Standard Length | 25 to 26 in |
| Style | Style 5 |
| Width | 15 in (3.81 cm) |
Interchanges & Equivalent parts:
050187850019, 190-9427, 00810341, 115841, 15019056, 2191-M120176, 3590838, 3643, 3643Q, 38903111110, 49032190, 50187850019, 547379C1, 549479C1, 5606629, 76034168, 7642000056, 764200056, 80015984, 86121M, 88500428, 9575M120176, DCM120176, DN M120176, DN M120176, DONM120176, FG 86121M, NFM86121M, W22381, M120176, 1909427, DNM120176, P3141445, P3141445, FG 86121M, 88500428, 5606629, 49032190, 050187850019, 86121M, W22381, 76034168, 00810341, 50187850019, 549479C1, 764200056, 190-9427, 38903111110, 3643, DONM120176, 3643Q, 2191-M120176, 547379C1, 9575M120176, 15019056, 3590838, DN M120176, DN M120176, 80015984, DCM120176, NFM86121M, 115841, 7642000056, DNM120176, 1909427, M120176, 810341
