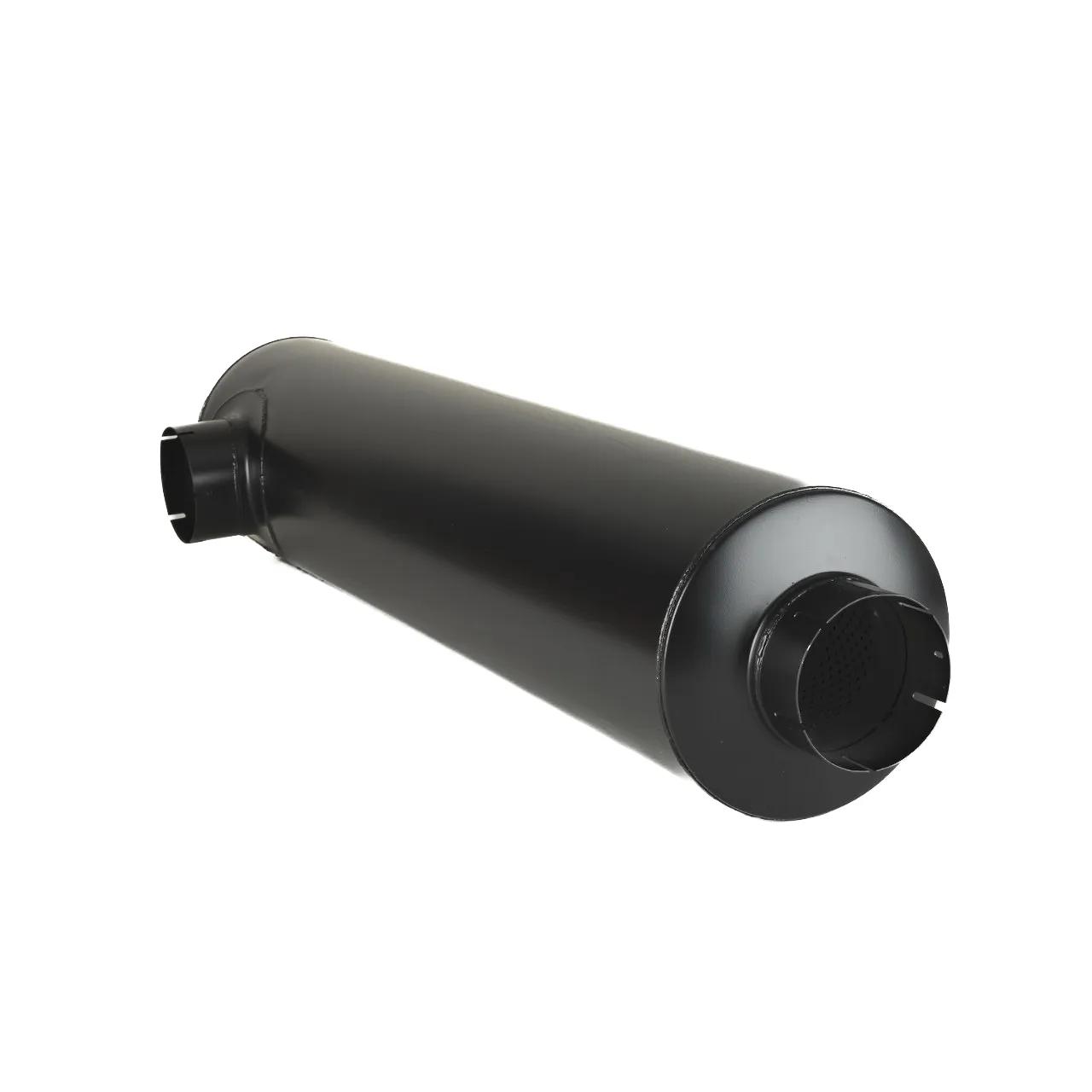

Muffler, OD: 10 in, Le: 3-2/3 ft

#DONM100213

Product Overview

Why Choose Donaldson?

Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.

Products and technology designed to consistently meet required specifications – and your expectations.

Attenuation Low Range	13 dBA
Attenuation High Range	18 dBA
Back Pressure High-Range (Metric)	76 mm HG
Back Pressure High Range	2.99 in HG
Back Pressure Low Range	0.98 in HG
Back Pressure Mid Range	2.01 in HG
Back Pressure Low-Range (Metric)	25 mm HG
Back Pressure Mid-Range (Metric)	51 mm HG
Body Diameter	10 in (25.4 cm)
Body Length	44-31/64 in (112.99 cm)
Color	Aluminized
Diameter	10-1/16 in (25.57 cm)
Diameter Range	5 to 6 in
Height	10 in (25.4 cm)
Inlet Clock Position	6:00
Inlet Diameter	5 in (12.7 cm)
Inlet Quantity	1
Inlet Type	Pipe Connection
Length	44 in (111.76 cm)
Material	Steel
Outlet Diameter	5 in (12.7 cm)
Outlet Quantity	1
Outlet Type	Pipe Connection
Overall Length	48 in (121.92 cm)
Rated Flow High Range	2412 cfm (68,31 m³/min)
Rated Flow Low Range	1395 cfm (40 m³/min)
Rated Flow Mid Range	2412 cfm (68,31 m³/min)[delete]
Reversible	No
Shape	Round
Length Range	40 to 50 in
Style	Style 3
Width	10 in (2.54 cm)
