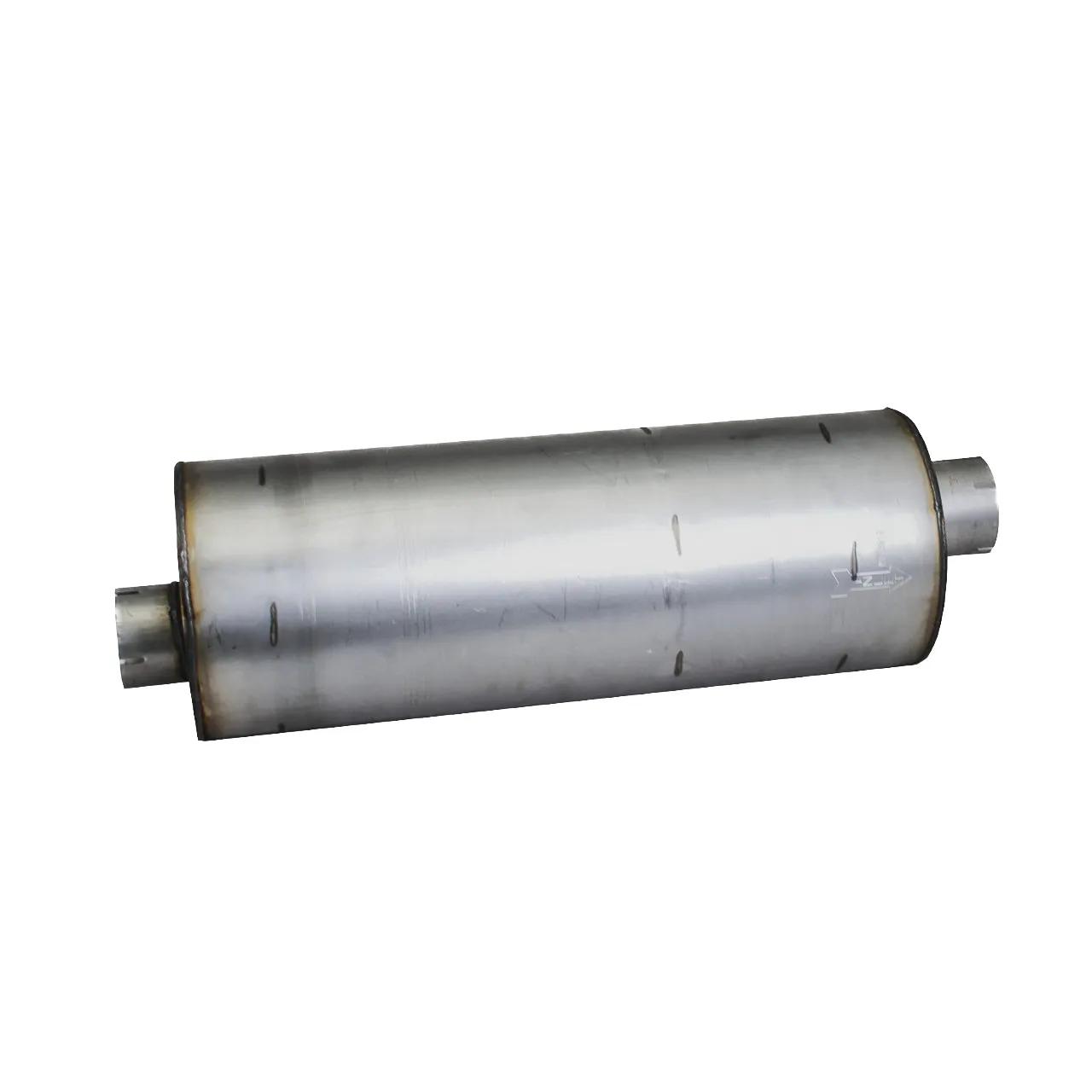

Muffler, OD: 11 in, Le: 30 in
#DONM110012
Specifications
| Attenuation High Range | 20 dBA |
| Attenuation Low Range | 15 dBA |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Color | Aluminized |
| Diameter | 11-1/16 in (28.11 cm) |
| Diameter Range | 4 to 5 in |
| Height | 11 in (27.94 cm) |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 4 in (10.16 cm) |
| Inlet Quantity | 1 |
| Inlet Type | Pipe Connection |
| Length | 30 in (76.2 cm) |
| Material | Steel |
| Outlet Clock Position | 12:00 |
| Outlet Quantity | 1 |
| Outlet Type | Pipe Connection |
| Rated Flow High Range | 1731 cfm (49,02 m³/min) |
| Rated Flow Low Range | 1000 cfm (28,3 m³/min) |
| Rated Flow Mid Range | 1413 cfm (40,02 m³/min) |
| Reversible | No |
| Shape | Round |
| Standard Length | 11 to 12 in |
| Style | Style 2 |
| Width | 11 in (2.79 cm) |
Interchanges & Equivalent parts:
102732, 11-0005, 12322859, 1901150, 2191-M110012, 31230HDM, 727321001, 86500M, 86541M, 86650M, 86653M, 9575M110012, DCM110012, DN M110012, DN M110012, DONM110012, E2HZ5225AFB, E2HZ5230Z, M2-4411, MFM110012, W22888, ZF895, M110012, 9575MFM110012P, DNM110012, M24411, 86653M, 31230HDM, 86541M, 11-0005, DCM110012, 86500M, DN M110012, 86650M, 1901150, 727321001, DN M110012, 9575M110012, E2HZ5230Z, M2-4411, 12322859, ZF895, E2HZ5225AFB, MFM110012, 102732, W22888, DONM110012, 2191-M110012, 9575MFM110012P, DNM110012, M24411, M110012, 3711, 3700, 31230, D132045, 22789
