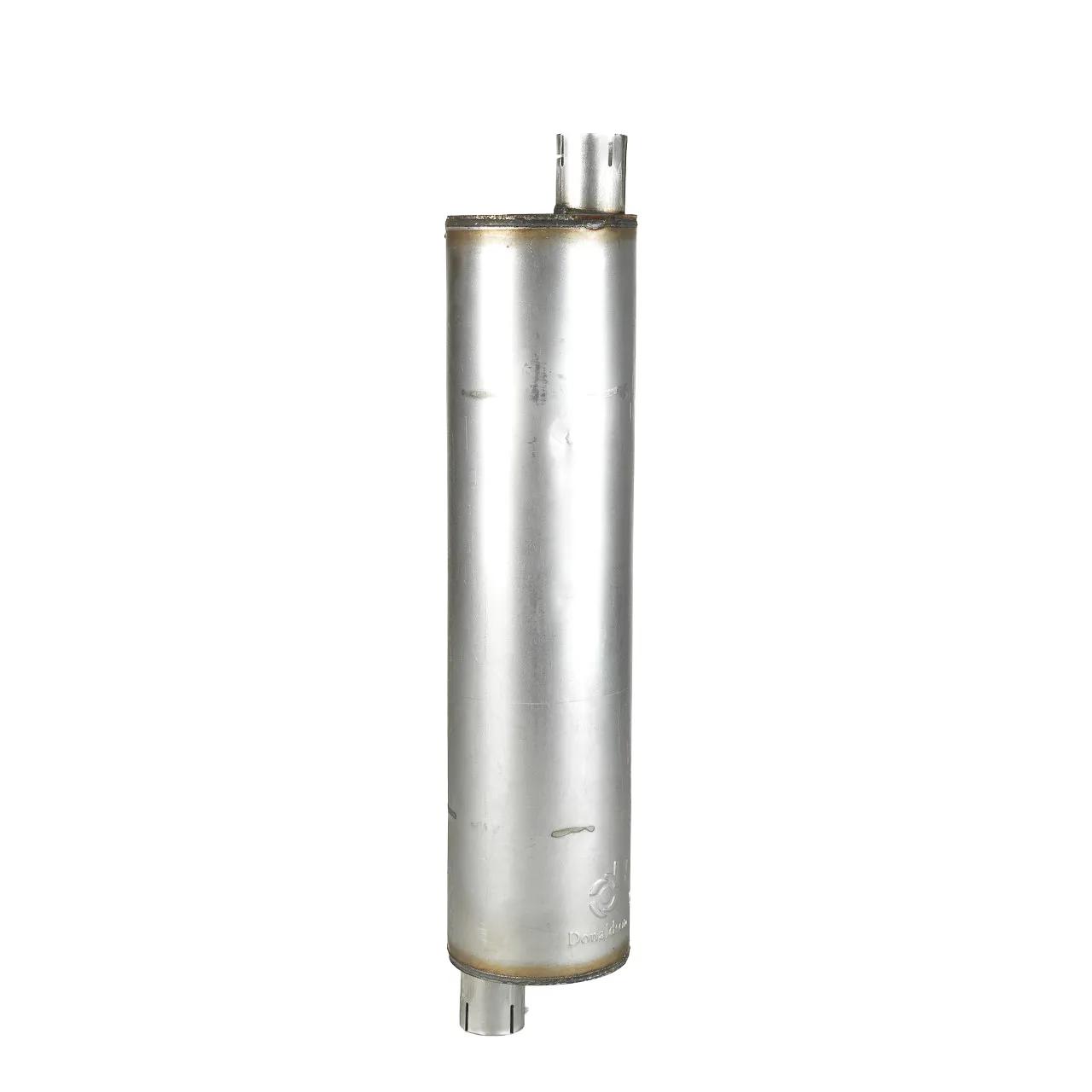

Muffler, OD: 6 in, Le: 22-1/2 in

#DONM060232

Product Overview

Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.

Products and technology designed to consistently meet required specifications – and your expectations.

Attenuation Low Range	15 dBA
Attenuation High Range	20 dBA
Back Pressure High-Range (Metric)	76 mm HG
Back Pressure High Range	2.99 in HG
Back Pressure Low Range	0.98 in HG
Back Pressure Mid Range	2.01 in HG
Back Pressure Low-Range (Metric)	25 mm HG
Back Pressure Mid-Range (Metric)	51 mm HG
Body Diameter	5-63/64 in (15.2 cm)
Body Length	24-1/64 in (61.01 cm)
Color	Aluminized
Height	6 in (15.24 cm)
Inlet Clock Position	6:00
Inlet Diameter	2 in (5.08 cm)
Inlet Quantity	1
Inlet Type	Pipe Connection
Length	22-1/2 in (57.15 cm)
Material	Steel
Outlet Clock Position	12:00
Outlet Diameter	2 in (5.08 cm)
Outlet Quantity	1
Outlet Type	Pipe Connection
Overall Length	29 in (73.66 cm)
Rated Flow High Range	515.59 cfm (14.6 m³/min)
Rated Flow Low Range	296.64 cfm (8.4 m³/min)
Rated Flow Mid Range	515.59 cfm (14.6 m³/min)[delete]
Reversible	No
Shape	Round
Length Range	24 to 25 in
Style	Style 2
Width	6 in (15.24 cm)
