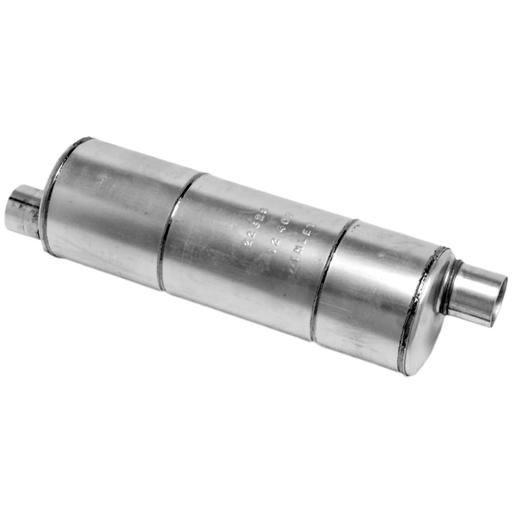

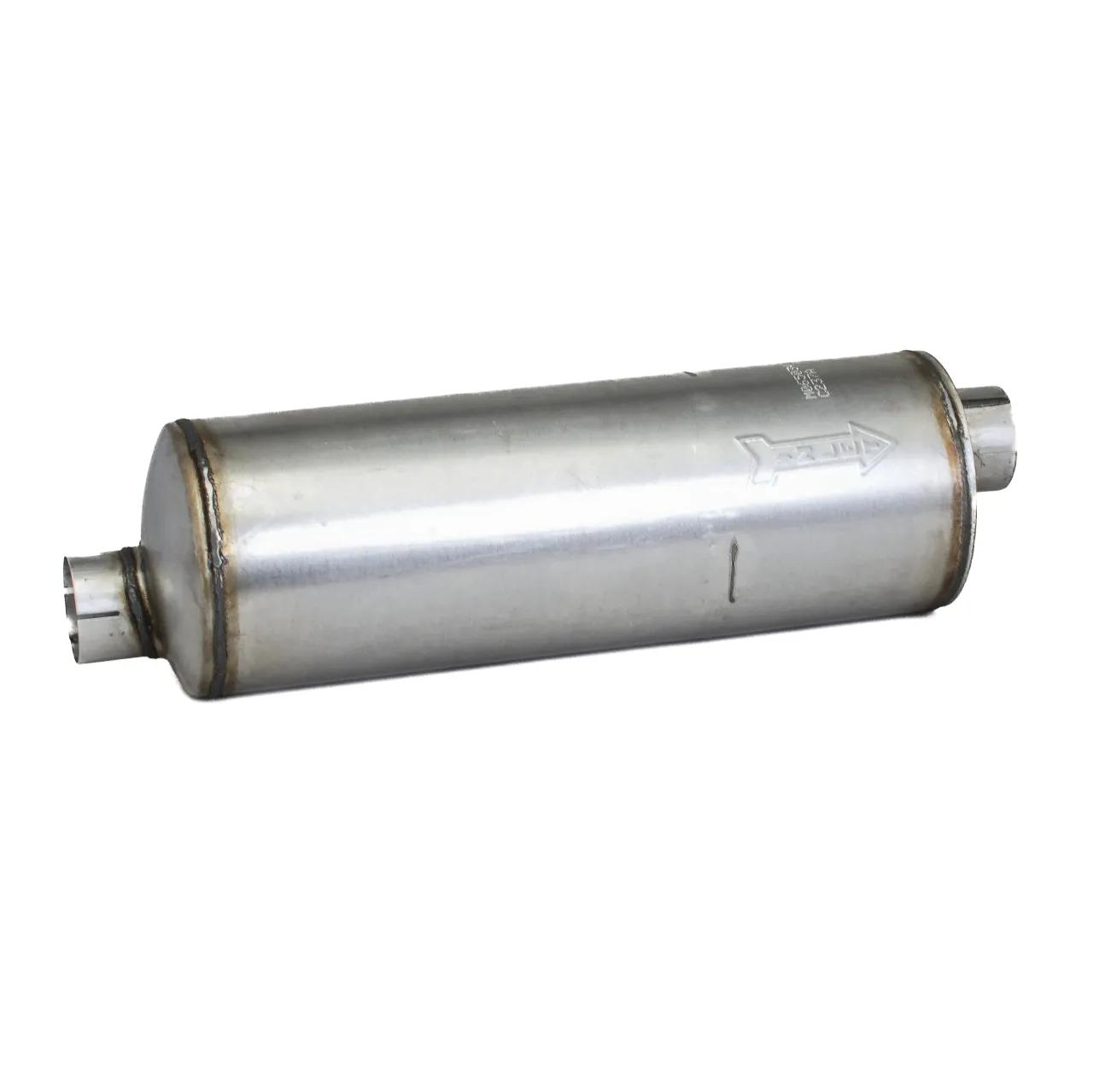

Muffler
#DONM065034
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 15 dBA |
| Attenuation High Range | 20 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 6-39/64 in (16.79 cm) |
| Body Length | 18-13/16 in (47.79 cm) |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 2-1/2 in (6.35 cm) |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 2-1/2 in (6.35 cm) |
| Overall Length | 23 in (58.42 cm) |
| Rated Flow High Range | 709.82 cfm (20.1 m³/min) |
| Rated Flow Low Range | 409.65 cfm (11.6 m³/min) |
| Rated Flow Mid Range | 709.82 cfm (20.1 m³/min)[delete] |
| Length Range | 18 to 19 in |
| Style | Style 2 |
Interchanges & Equivalent parts:
| 3624 |
| 252293 |
| 86137M |
| 1901302 |
| 511196 |
| 3624Q |
| JS219802 |
| 12465589 |
| 33239 |
| 5219802 |
| NM65034 |
| S219802 |
| 1430391H1 |
| DA2638 |
| 219802 |
| 814051 |
| 2073181 |
| 34233 |
| 34682 |
| 2339654 |
| 348022 |
| 173838 |
| 9575M065034 |
| 605338 |
| 91083250 |
| 76420000025 |
| 31034 |
| 384786 |
| T384786 |
| 59450262 |
| 520198 |
| DCM065034 |
| X14152019 |
| 125648 |
| GR91083250 |
| MM322 |
| 114666743 |
| 18411 |
| 180316 |
| 2403029 |
| 905722 |
| 214059001 |
| 2140590011 |
| DA0796 |
| 79434 |
| 21998 |
| 22628 |
| 079434 |
| 12158602 |
| 124-65589 |
| 2191-M065034 |
| 31034HDM |
| DONM065034 |
| P49375 |
| DN M065034 |
| DN M065034 |
