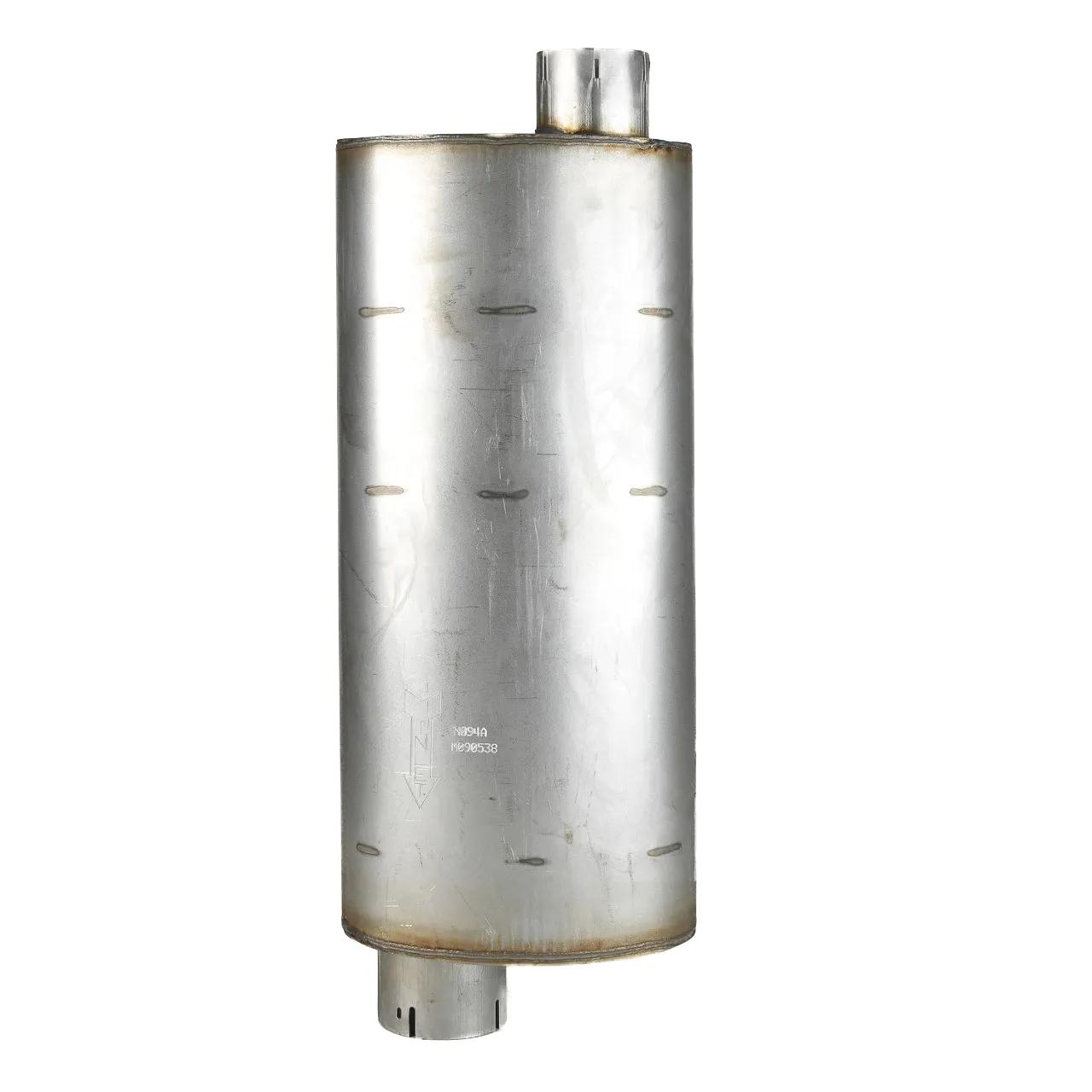

Muffler

#DONM090538

Product Overview

Why Choose Donaldson?

Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.

Products and technology designed to consistently meet required specifications – and your expectations.

Attenuation Low Range	16 dBA
Attenuation High Range	21 dBA
Back Pressure High-Range (Metric)	76 mm HG
Back Pressure High Range	2.99 in HG
Back Pressure Low Range	0.98 in HG
Back Pressure Mid Range	2.01 in HG
Back Pressure Low-Range (Metric)	25 mm HG
Back Pressure Mid-Range (Metric)	51 mm HG
Body Diameter	8-3/16 in (20.8 cm)
Body Diameter Max	11-1/2 in (29.21 cm)
Body Length	25-63/64 in (66 cm)
Inlet Clock Position	3:00
Inlet Diameter	4 in (10.16 cm)
Outlet Clock Position	12:00
Outlet Diameter	3-1/2 in (8.89 cm)
Overall Length	32-1/4 in (81.92 cm)
Rated Flow High Range	1338.43 cfm (37.9 m³/min)
Rated Flow Low Range	773.39 cfm (21.9 m³/min)
Rated Flow Mid Range	1338.43 cfm (37.9 m³/min)[delete]
Length Range	25 to 26 in
Style	Style 2
