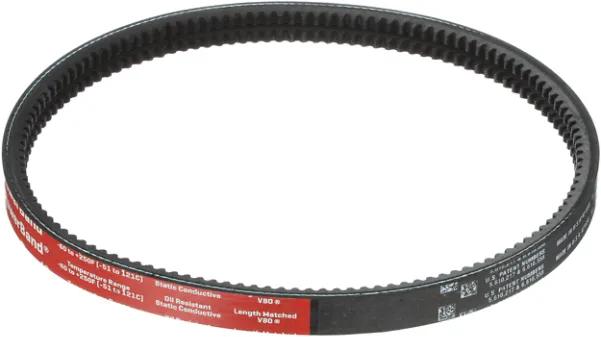

Narrow Section Molded Notch Joined V-Belt, W: 1-1/4 in
#GAT2/5VX1000
Product Overview
The Powerband Construction Allows Multiple Belts To Function As A Single Unit, w/ Even Load Distribution & Each Strand Fitting Securely In The Sheave Groove.
Features & Benefits
- Recommended For Multiple V-Belt Drives Exposed To Pulsating Or Heavy Shock Loads Which Can Make Belts Whip, Turn Over Or Jump Off The Drive.
- The Tie Band Assures High Lateral Rigidity, Guiding The Belt In A Straight Line & Preventing It From Coming Off The Drive.
- Notches Molded Into The Belt During Manufacturing Make This Belt Well Suited For Drives w/ Smaller Diameter Sheaves.
- Flex-Bonded Cords Are Strongly Bonded To The Body Of The Belt Resulting In Equal Load Distribution & The Absorption Of Bending stress w/o Cord Deterioration.
- Meets RMA Oil & Heat Resistant Standards.
- Meets RMA Static Conductivity Requirements.
Specifications
| Belt Top Width | 1-1/4 to 1-3/8 in (3.18 to 3.51 cm) |
| Construction | Notched |
| Length | 100 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 2 |
| Section | 5VX |
| Length Range | 100 to 109.99 in |
| Type | Narrow Section Molded Notch Joined V-Belt |
| Width | 1-1/4 in (3.18 cm) |
Interchanges & Equivalent parts:
| 25VX1000 |
| 138320 |
| 194221 |
| 2GB5VX1000 |
| 5302222073 |
| GT25V1000 |
| GT25VX1000 |
| R5VX10002 |
| GT2/5V1000 |
| GT2/5VX1000 |
| R5VX1000-2 |
| A5VX10002 |
| 2/5VX1000 |
| 93892100 |
