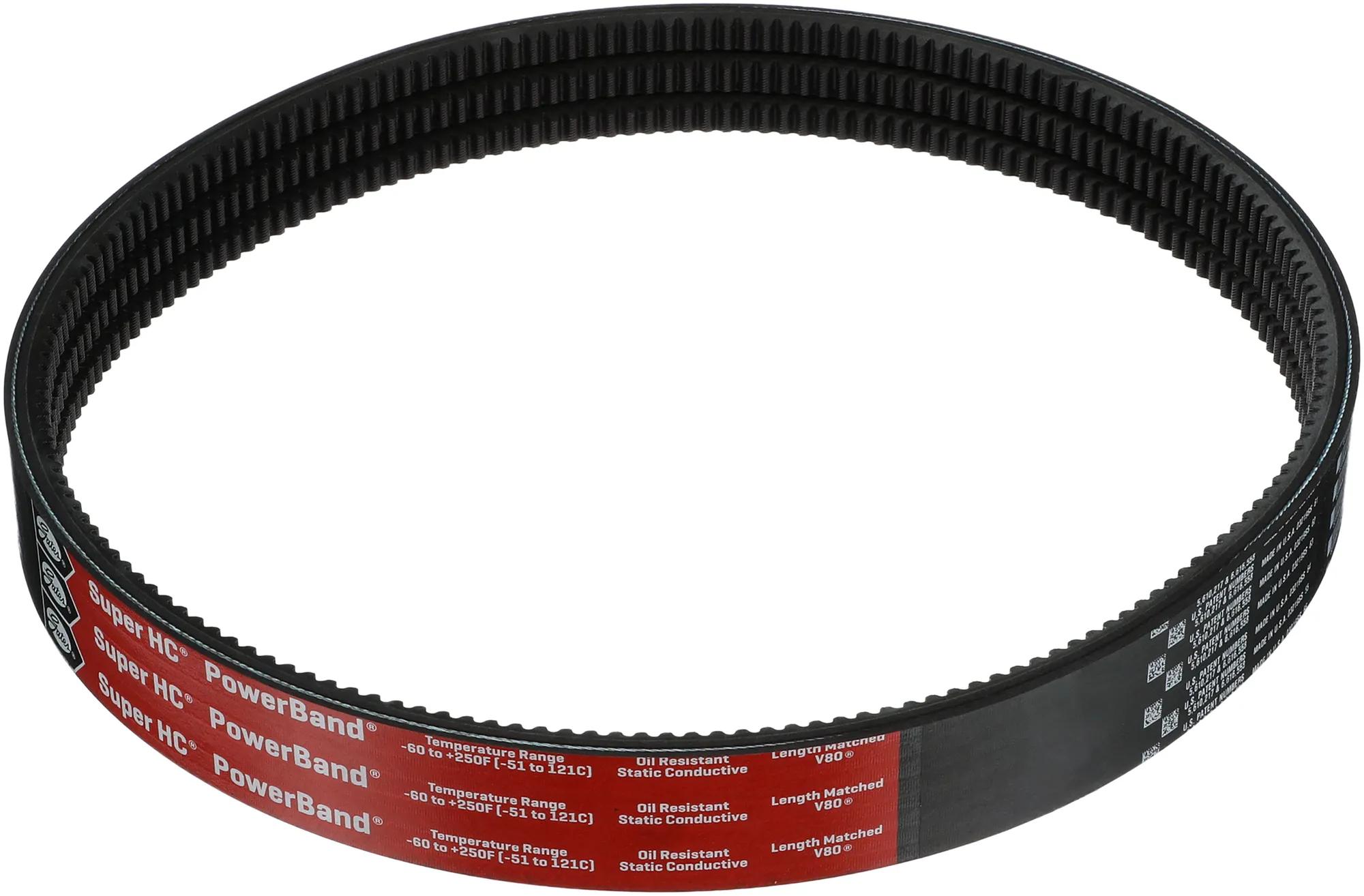

Narrow Section Molded Notch V-Belt, W: 1-7/8 in
#GAT3/5VX1600
Product Overview
The Powerband Construction Allows Multiple Belts To Function As A Single Unit, w/ Even Load Distribution & Each Strand Fitting Securely In The Sheave Groove.
Features & Benefits
- Meets RMA Oil & Heat Resistant Standards.
- The Tie Band Assures High Lateral Rigidity, Guiding The Belt In A Straight Line & Preventing It From Coming Off The Drive.
- Flex-Bonded Cords Are Strongly Bonded To The Body Of The Belt Resulting In Equal Load Distribution & The Absorption Of Bending stress w/o Cord Deterioration.
- Notches Molded Into The Belt During Manufacturing Make This Belt Well Suited For Drives w/ Smaller Diameter Sheaves.
- Recommended For Multiple V-Belt Drives Exposed To Pulsating Or Heavy Shock Loads Which Can Make Belts Whip, Turn Over Or Jump Off The Drive.
- Meets RMA Static Conductivity Requirements.
Specifications
| Largeur de la courroie supérieure | 1-7/8 à 2 po (4,78 à 5,08 cm) |
| Length | 160 po |
| # of Grooves | 3 |
| Section | 5VX |
| Length Range | 160 à 169.99 po |
| Top Width Per Strand (in) | 5/8 po (1,6 cm) |
| Type | Courroie en V moulée à section étroite |
| Width | 1-7/8 po (4,78 cm) |
Interchanges & Equivalent parts:
| 35VX1600 |
| A5VX160003 |
| 3/5VX1600 |
| 93893160 |
