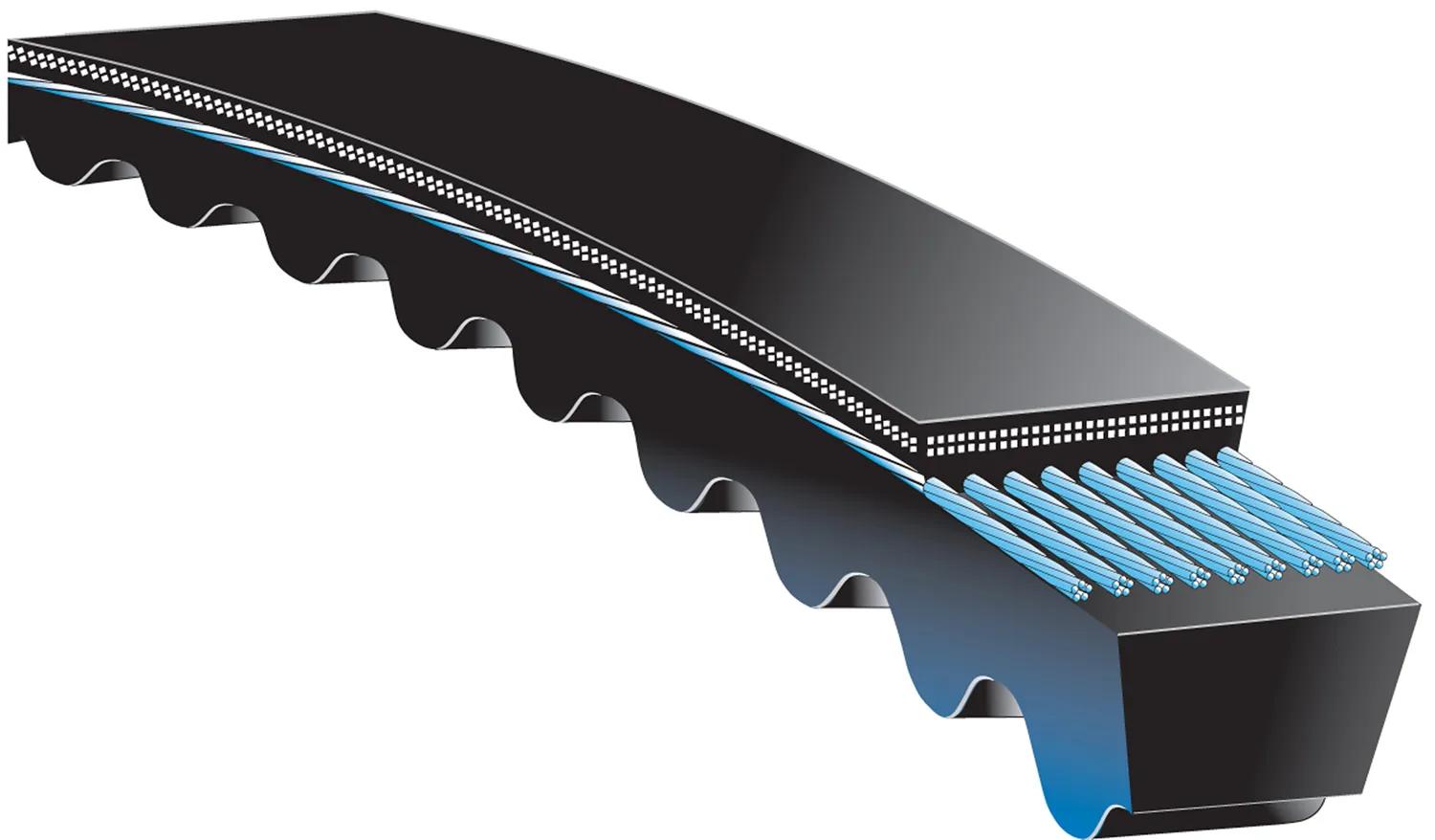

Narrow Section Molded Notch V-Belt, W: 3/8 in
#GAT3VX250
Product Overview
Recommended For Use On Special Drives Where Space & Weight Limitations Are Critical.
Features & Benefits
- Also Known As Super HC V-Belts.
- Special Tensile Cords Treated w/ A Material That Bonds w/ The Cords & Surrounding Rubber.
- In Many Cases, They Can Replace High Maintenance Chain & Gear Drives.
- They Can Transmit Up To 3 Times The HP Of Conventional V-Belts In The Same Drive Space.
- Sheaves Can Be Smaller In Diameter & Operate At Belt Speeds Up To 6,500 RPM w/o Dynamic Balancing.
- Special Material That Resists Oil, Heat, Sunlight, Ozone, Weathering & Aging.
- Reduce Weight & Overhung Load On Bearings.
- Meets Or Exceeds RMA Standards For Static Conductivity.
Specifications
| Belt Top Width | 3/8 to 1/2 in (0.97 to 1.27 cm) |
| Construction | Notched |
| Length | 25 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | 3VX |
| Length Range | 25 to 29.99 in |
| Type | Narrow Section Molded Notch V-Belt |
| Width | 3/8 in (0.97 cm) |
Interchanges & Equivalent parts:
| 021811 |
| 1715611 |
| 253314 |
| 2L377 |
| 4279 |
| 4642C96H66 |
| 78766 |
| GT3VX250 |
| H435937 |
| MBB820U |
| SPZ630 |
| 3VX250 |
| 4642C97H66 |
| 6077169 |
| 7Z277D252 |
| A-3VX250 |
| 13VX250 |
| A3VX250 |
| 41006331 |
| 94120250 |
