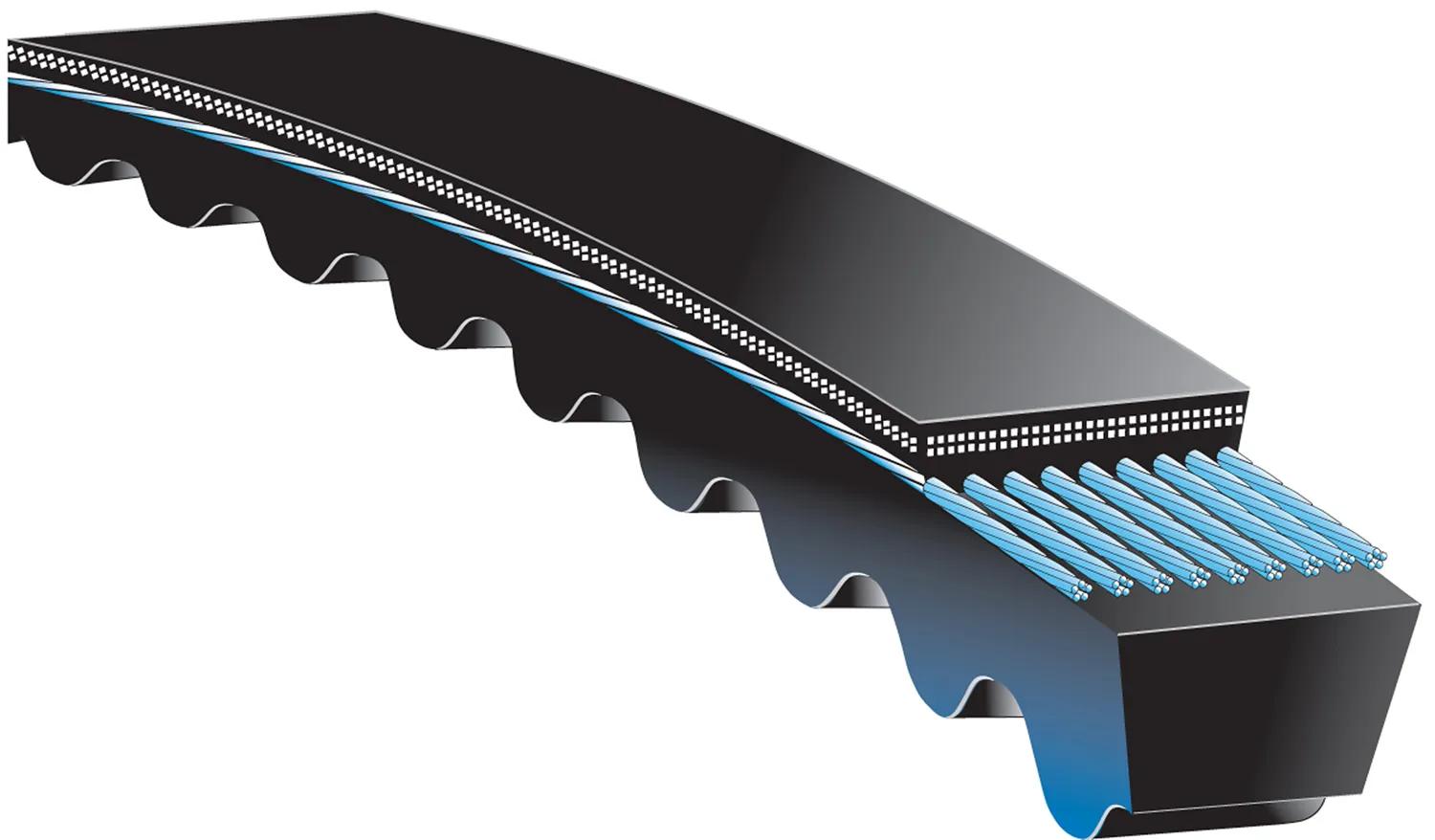

Narrow Section Molded Notch V-Belt, W: 3/8 in
#GAT3VX265
Product Overview
Recommended For Use On Special Drives Where Space & Weight Limitations Are Critical.
Features & Benefits
- Also Known As Super HC V-Belts.
- Special Tensile Cords Treated w/ A Material That Bonds w/ The Cords & Surrounding Rubber.
- In Many Cases, They Can Replace High Maintenance Chain & Gear Drives.
- They Can Transmit Up To 3 Times The HP Of Conventional V-Belts In The Same Drive Space.
- Sheaves Can Be Smaller In Diameter & Operate At Belt Speeds Up To 6,500 RPM w/o Dynamic Balancing.
- Special Material That Resists Oil, Heat, Sunlight, Ozone, Weathering & Aging.
- Reduce Weight & Overhung Load On Bearings.
- Meets Or Exceeds RMA Standards For Static Conductivity.
Specifications
| Belt Top Width | 3/8 to 1/2 in (0.97 to 1.27 cm) |
| Construction | Notched |
| Length | 26.5 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | 3VX |
| Length Range | 25 to 29.99 in |
| Type | Narrow Section Molded Notch V-Belt |
| Width | 3/8 in (0.97 cm) |
Interchanges & Equivalent parts:
| 09033800 |
| 252286 |
| 2L378 |
| 41833 |
| 418331 |
| 4265 |
| 75404014 |
| 780766 |
| 95404014 |
| 9XN670 |
| 3VX265 |
| 265-245 |
| 2925B06H87 |
| 754-04014 |
| 954-04014 |
| A-3VX265 |
| SPZ670 |
| 13VX265 |
| 265245 |
| A3VX265 |
| CR400533 |
| 15604 |
| 41006332 |
| 94120265 |
